301B | Die Grinder, 1/4 in. and 6 mm, 21000 rpm
Overview

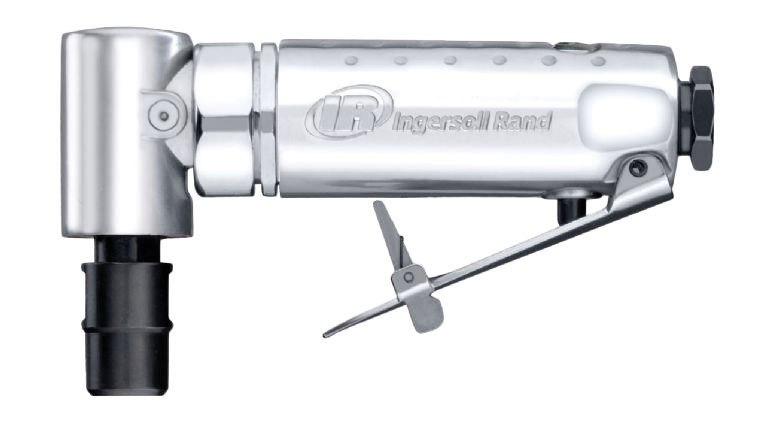

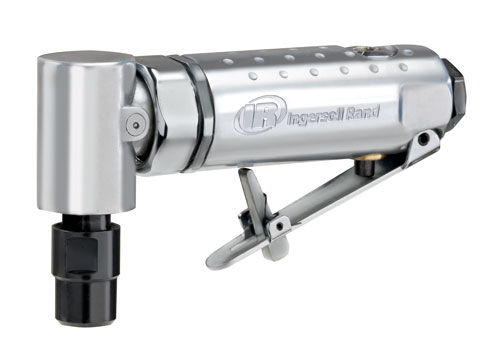

Ingersoll Rand Die Grinder, 1/4 in. and 6 mm, 21000 rpm (discontinued)
Die Grinder, 1/4 in. and 6 mm, 21000 rpm, model 301B by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Die Grinder available elsewhere for a lower price? Contact Customer Service about price matching!
301B by Ingersoll Rand
The 301B Angle Head Air Grinder has a free speed of 21000 rpm. The output on this Die Grinder is 1/4 in. and 6 mm
Technical Specifications
SKU: 301B-IR
Power Source
Air Powered
Sound Pressure
91.8 / 104.8
Vibration Level
5.9
Duty Rating
Medium Duty
Air Inlet Size
1/4" NPT
Min Hose Size
3/8
Air Pressure (PSI)
90
Air Consumption @ Load
24
Avg Air Consumption
6
Free Speed (RPM)
21000
Exhaust Direction
Front
Power (HP)
0.25
Collet Size
1/4
Technical Documents
- Ingersoll Rand 300 Series Air Die Grinder Product Information (PDF)
- Ingersoll Rand 301B 307B Air Die Grinder Parts Breakdown (PDF)
- Ingersoll Rand Air Die Grinder Safety Information (PDF)
- Ingersoll Rand 300 Series Die Grinders Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
