Features & Benefits
- Lever Start
- Adjustable Shut off clutch provides repeatability
- Lube free motor
- Quick, precise shut off limits
Technical Information
Technical Specifications
Technical Specifications

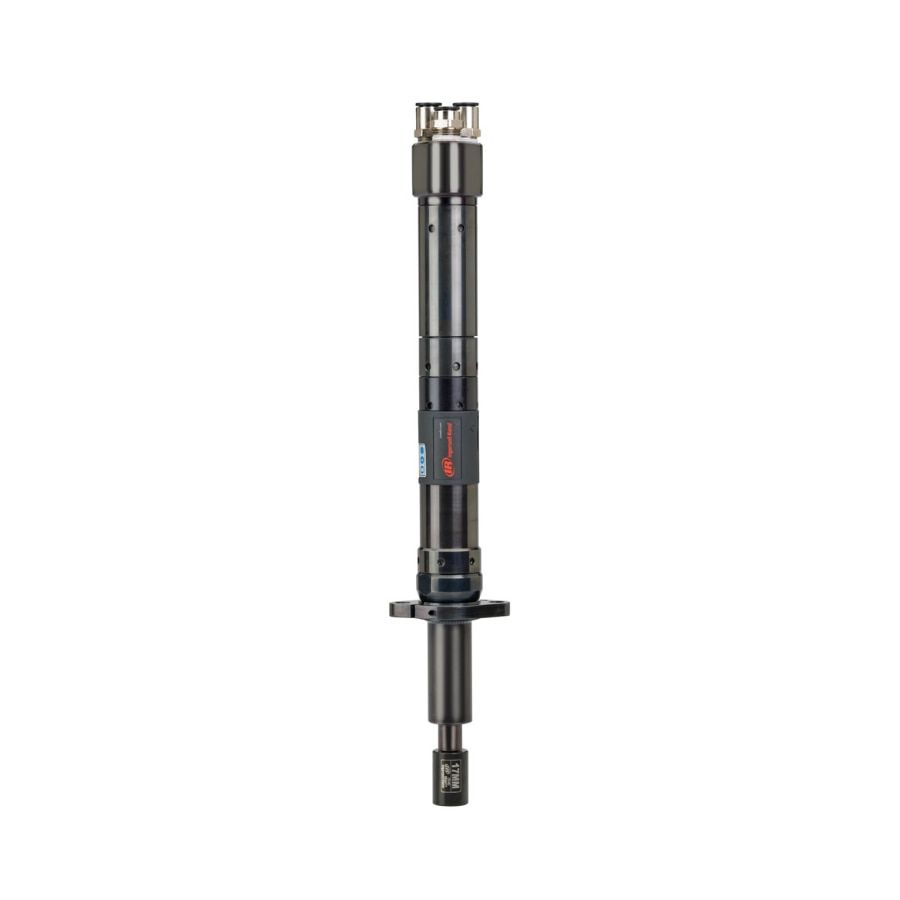

SKU: QA4ASLS027NP41S06-IR
Manufacturer Ingersoll Rand
Model QA4ASLS027NP41S06
Stock CodeC
Air Inlet 1/4 in. NPT
Drive size 3/8'' square
Drive Type 3/8 in. square
Free Speed (RPM) 450
Length (In) 18.3
Max Free Speed (rpm) 450
Mounting Standard Gearcase
Series QA4
Spindle3/8 in. square
Torque Range (Ft Lbs) 10.3 - 19.9
Torque Range (In Lbs) - 239.0
Torque Range (Nm) 13.96 - 26.98
Weight3.22 lbs
