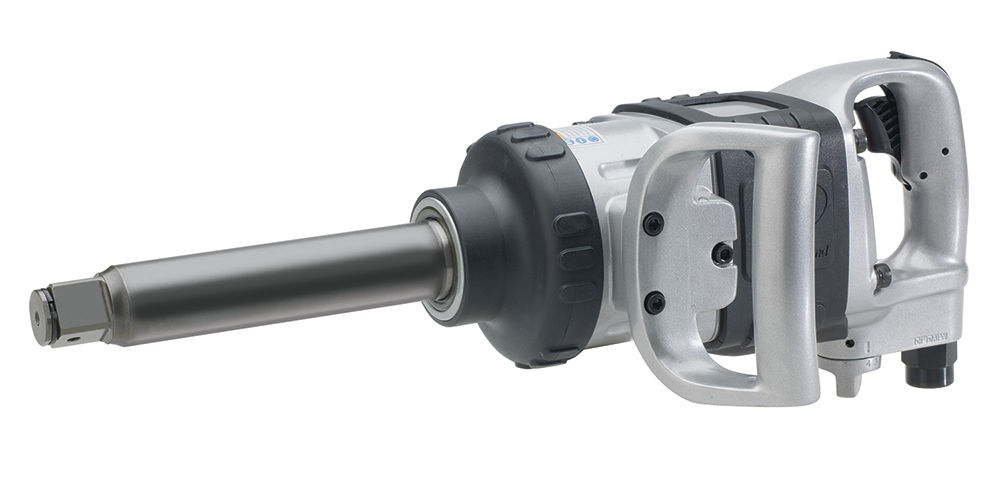

285B-6 | Impact Wrench, 1 in. square 6 in. Extended drive, 1475 ft lbs
Overview

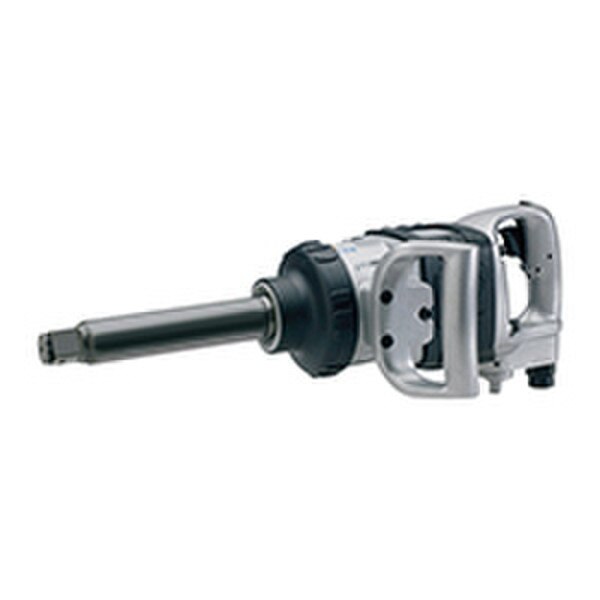

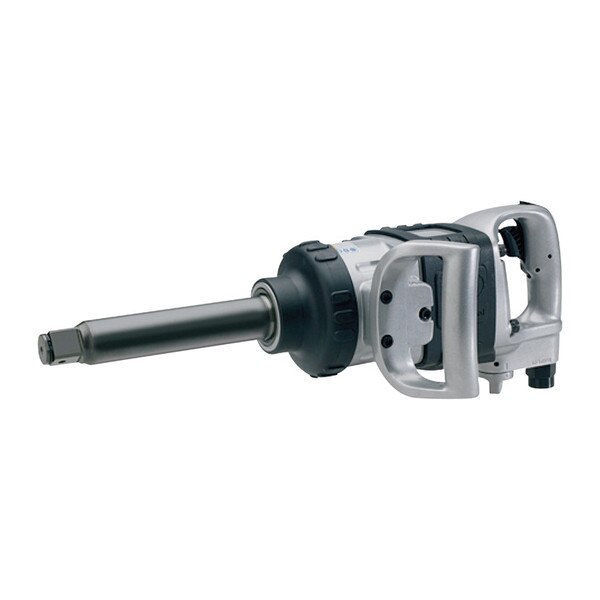

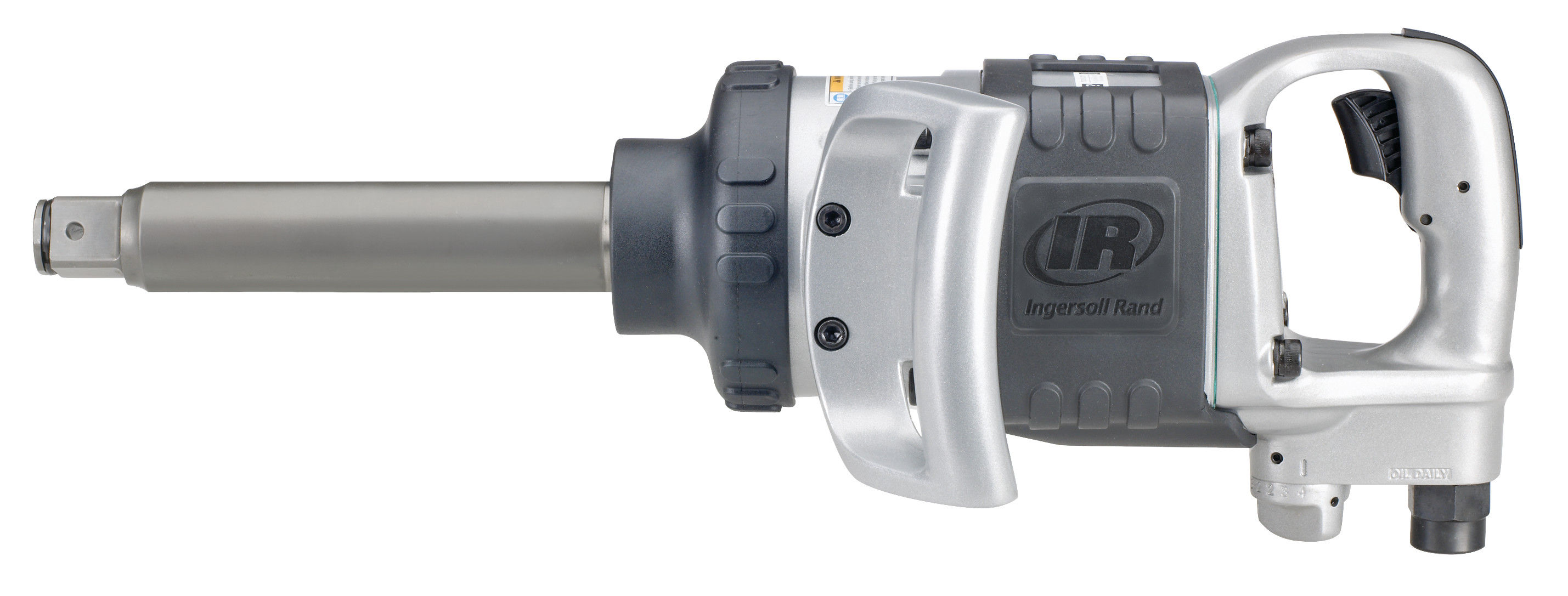

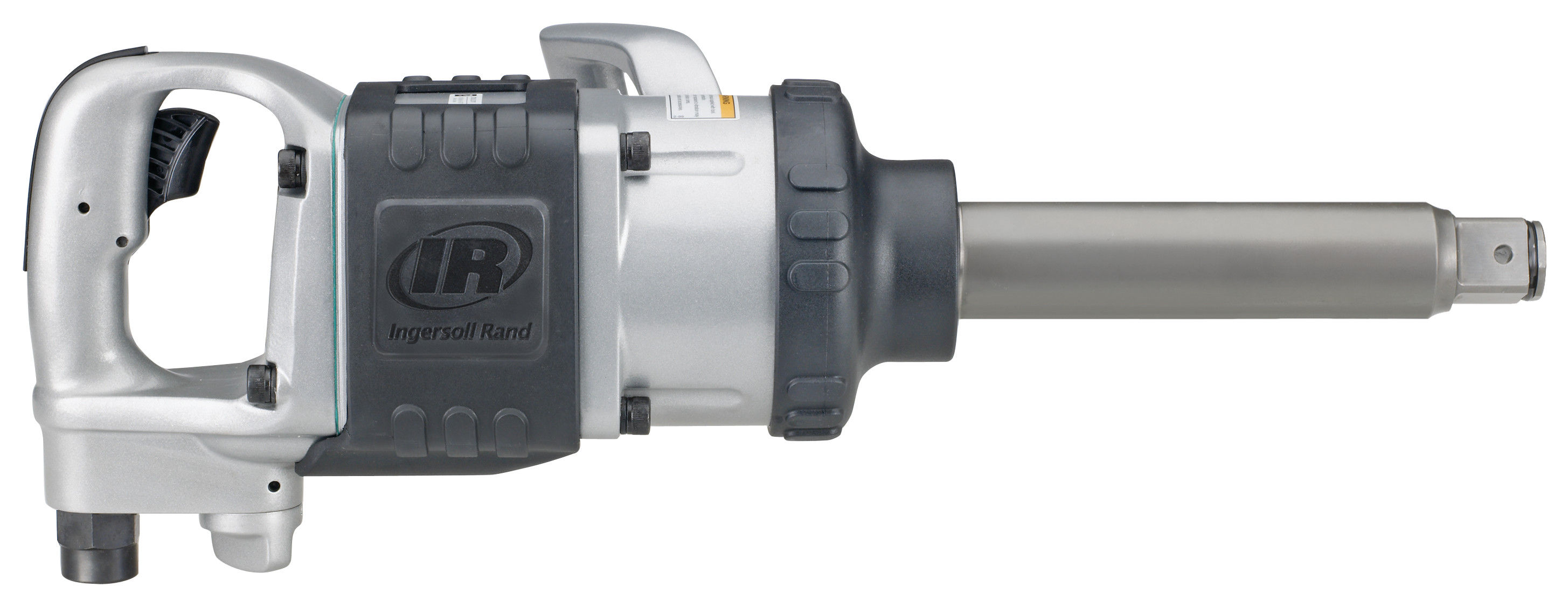

Ingersoll Rand Impact Wrench, 1 in. square 6 in. Extended drive, 1475 ft lbs
Impact Wrench, 1 in. square 6 in. Extended drive, 1475 ft lbs, model 285B-6 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
285B-6 by Ingersoll Rand
The 285B-6 Impact Wrench has a 1 in. square drive and a free speed of 5250 rpm.
With the ability to go up to 700 bpm, The Ingersoll Rand 285B-6 can go up to a maximum torque of 1475 ft lbs.
360° Product Viewer
Features & Benefits
- Built with a steel hammer case and metal housing
- Designed for the professional with over 1475 ft-lbs of torque for the toughest applications
- Hog-Ring and Thru-Hole, 6'' extension
Technical Specifications
SKU: 285B-6-IR
Power Source
Air Powered
Sound Pressure
107/118
Vibration Level
13.3
Duty Rating
Heavy Duty
Air Inlet Size
1/2" NPT
Min Hose Size
3/4
Air Pressure (PSI)
120
Air Consumption @ Load
61
Avg Air Consumption
10
Retainer
Friction Ring and Thru-hole
Drive Size
1
Max Torque (ft-lb)
1770
Max Torque (in-lb)
21242
Max Torque (Nm)
2400
Free Speed (RPM)
5250
Drive Type
Square
Mechanism
Rocking Dog
Exhaust Direction
Bottom
Motor Type
Non-Biased
Vibration Uncertainty
2.1
Technical Documents
Ingersoll Rand 285B Series Air Impact Wrench Product Information (PDF)- Ingersoll Rand 285B Series Air Impact Wrench Parts Breakdown (PDF)
- Ingersoll Rand Air Impact Wrench Safety Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
