3940B2Ti | Impact Wrench, 1 in. square drive, 2500 ft lbs, inside trigger
Overview

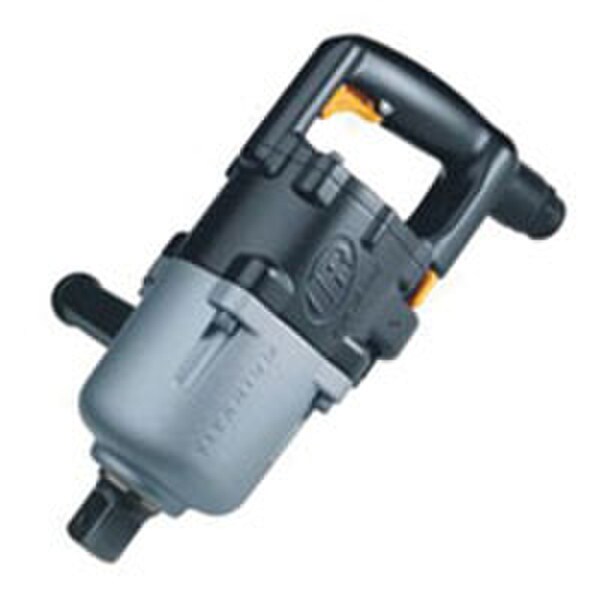

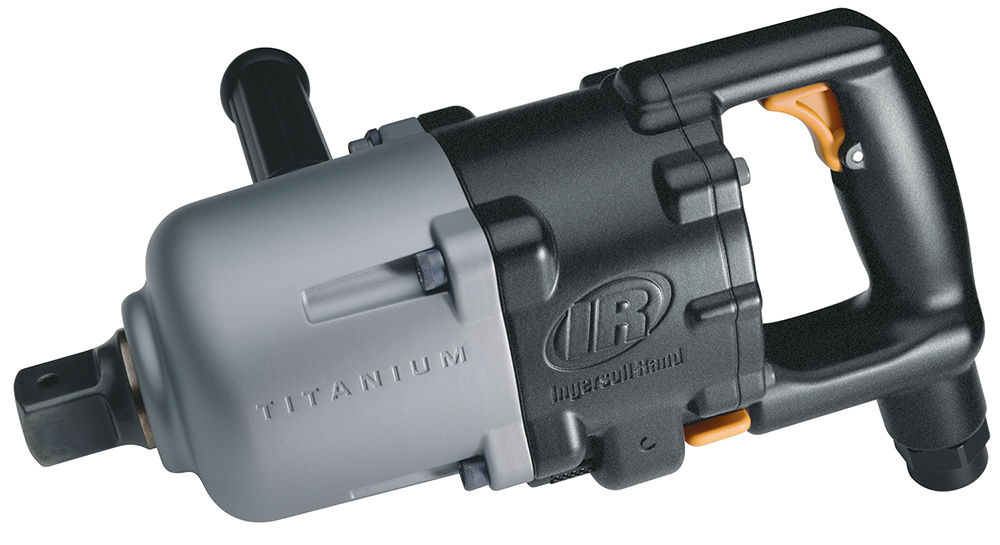

Ingersoll Rand Impact Wrench, 1 in. square drive, 2500 ft lbs, inside trigger
Impact Wrench, 1 in. square drive, 2500 ft lbs, inside trigger, model 3940B2Ti by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
3940B2Ti by Ingersoll Rand
The 3940B2Ti Impact Wrench has a 1 in. square drive and a free speed of 6000 rpm.
With the ability to go up to 800 bpm, The Ingersoll Rand 3940B2Ti can go up to a maximum torque of 2500 ft lbs.
Features & Benefits
- Corrosion and wear resistant
- Can withstand the harshest conditions
- Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding
Technical Specifications
Model
3940B2Ti
Type
Impact Wrench
Drive size
1'' square
Manufacturer
Ingersoll Rand
Length (In)
13.5
Free Speed (RPM)
6000
SKU
3940B2TI
Stock Code
3
Style
D-Handle
Max Torque (Ft Lb)
2500
Max Torque (Nm)
3390
UPC
00663023048383
Max Free Speed (rpm)
6000
Weight (lbs)
21.2
Side to Center (in)
2.3
Handle Type
Inside Trigger
Blows Per Minute (bpm)
800
Actuation
Inside Trigger
Series
3900
Length (in)
13.5
Retainer Type
Thru-Hole
Technical Documents
Ingersoll Rand 3940 3942 Series Air Impact Wrench Product Information (PDF)- Ingersoll Rand 3940 3942 Series Air Impact Wrench Parts Breakdown (PDF)
- Ingersoll Rand Air Impact Wrench Safety Information (PDF)
- Ingersoll Rand 3940 3942 3955 Series Air Impact Wrench Maintenance Information (PDF)
