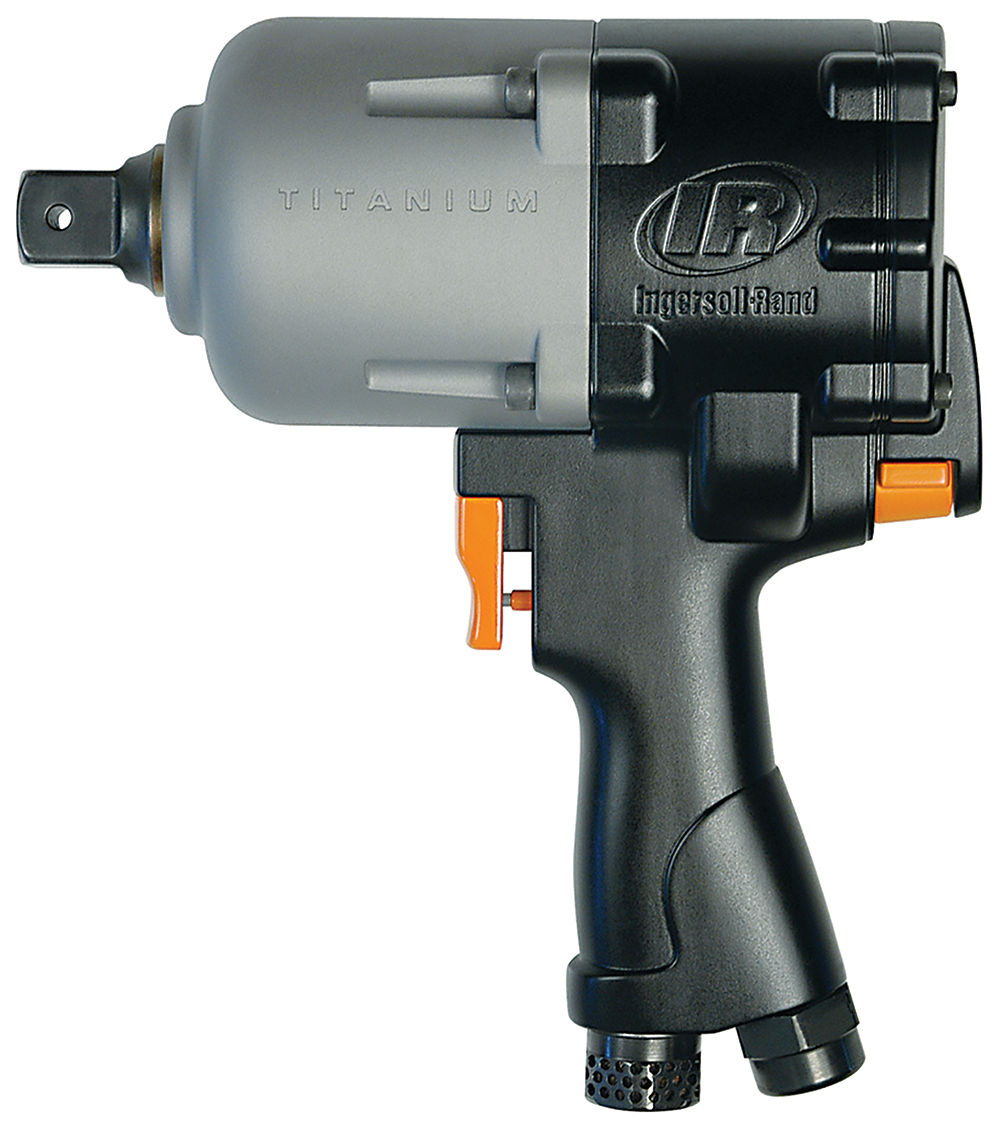

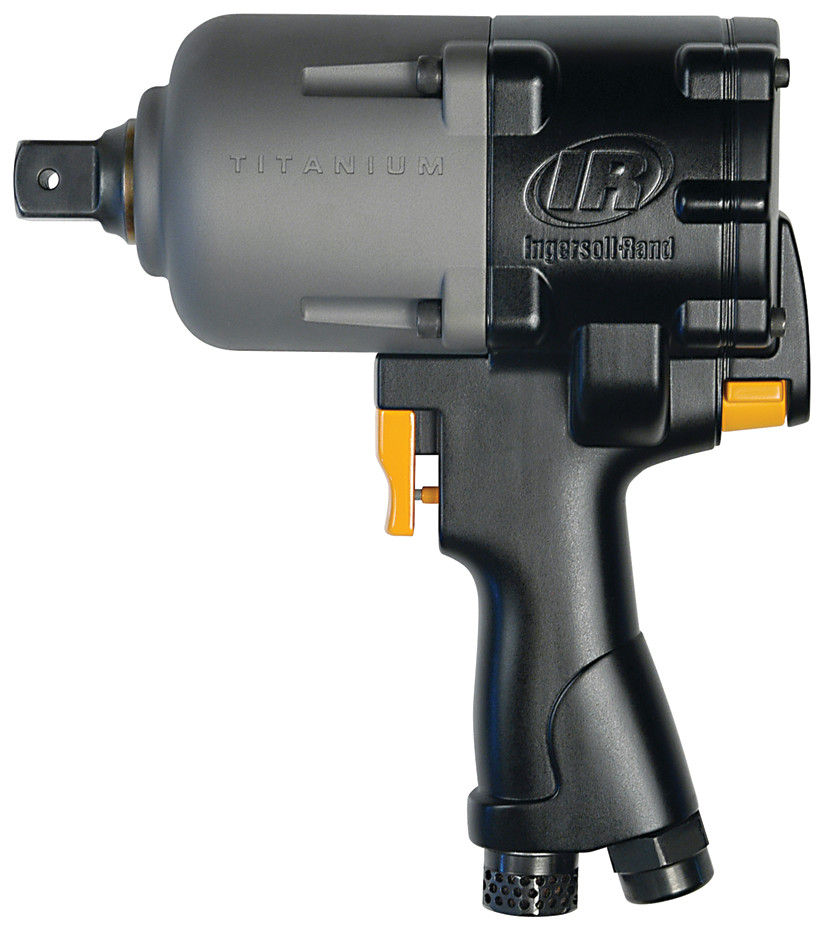

3940P2Ti | Impact Wrench, 1 in. square drive, 2500 ft lbs, pistol grip
Overview
Ingersoll Rand Impact Wrench, 1 in. square drive, 2500 ft lbs, pistol grip
Impact Wrench, 1 in. square drive, 2500 ft lbs, pistol grip, model 3940P2Ti by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
3940P2Ti by Ingersoll Rand
The 3940P2Ti Impact Wrench has a 1 in. square drive and a free speed of 5300 rpm.
With the ability to go up to 800 bpm, The Ingersoll Rand 3940P2Ti can go up to a maximum torque of 2500 ft lbs.

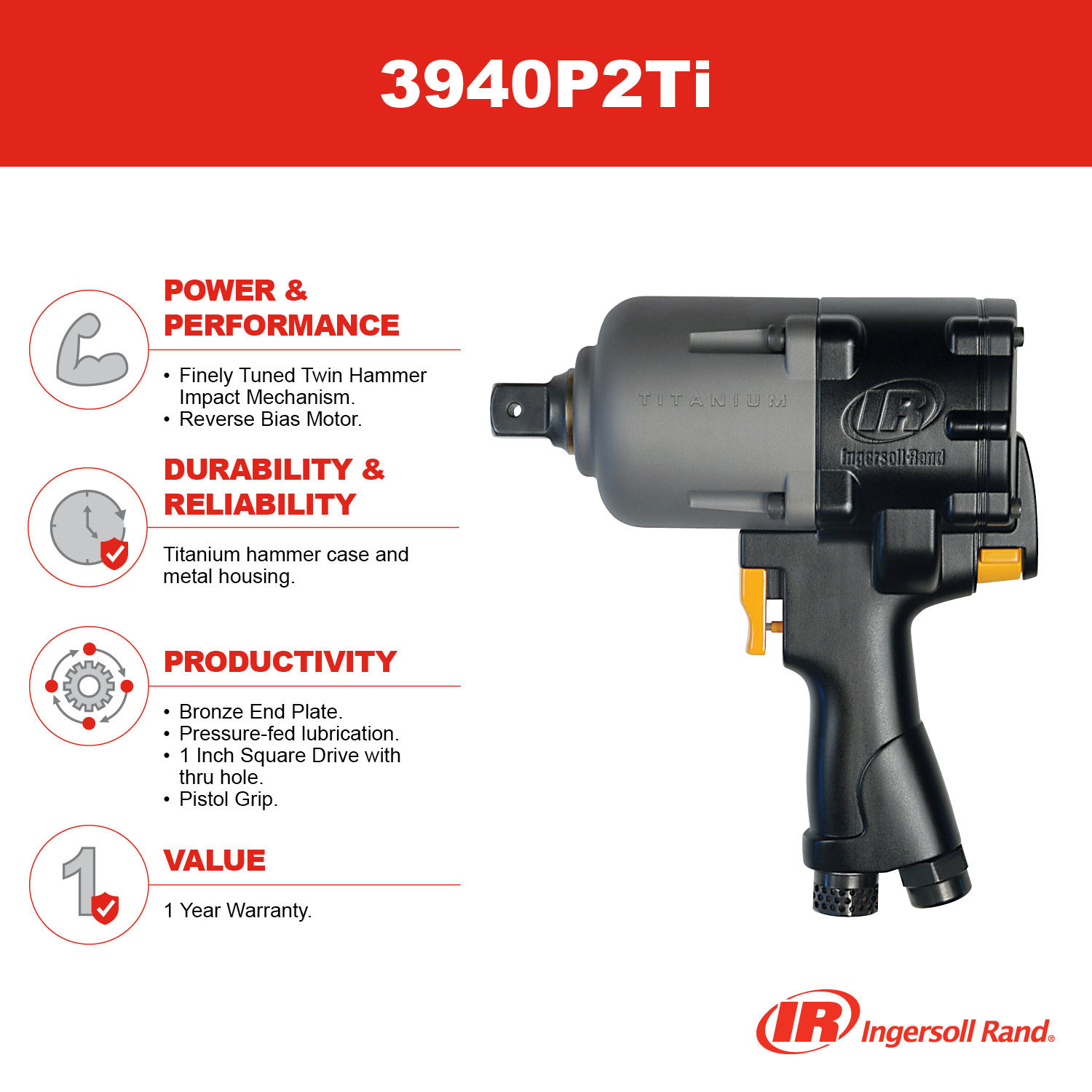

Features & Benefits
- Corrosion and wear resistant
- Can withstand the harshest conditions
- Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding
Technical Specifications
SKU: 3940P2TI-IR
Power Source
Air Powered
Vibration Level
14.2
Duty Rating
Super Duty
Air Inlet Size
1/2" NPT
Min Hose Size
3/4
Air Pressure (PSI)
90
Avg Air Consumption
64
Retainer
Thru-hole
Drive Size
1
Max Torque (ft-lb)
2750
Max Torque (in-lb)
33004
Max Torque (Nm)
3729
Free Speed (RPM)
5300
Drive Type
Square
Mechanism
Twin Hammer
Exhaust Direction
Bottom
Motor Type
Reverse Bias
Vibration Uncertainty
2
Technical Documents
Ingersoll Rand 3940 3942 Series Air Impact Wrench Product Information (PDF)- Ingersoll Rand 3940 3942 Series Air Impact Wrench Parts Breakdown (PDF)
- Ingersoll Rand Air Impact Wrench Safety Information (PDF)
- Ingersoll Rand 3940 3942 3955 Series Air Impact Wrench Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
