Overview

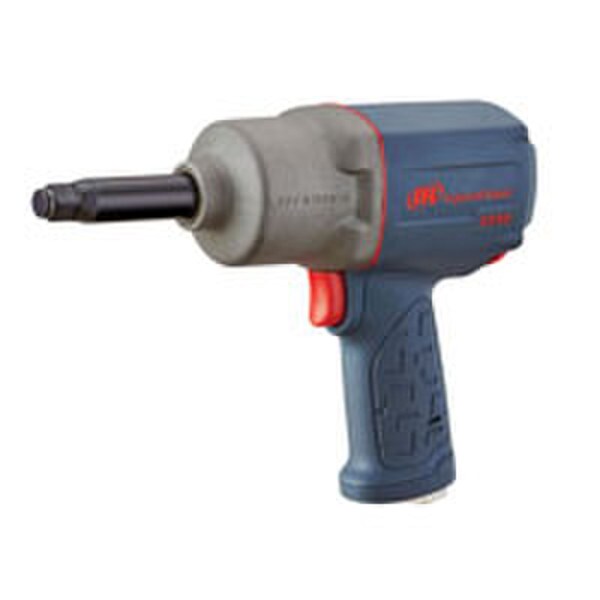

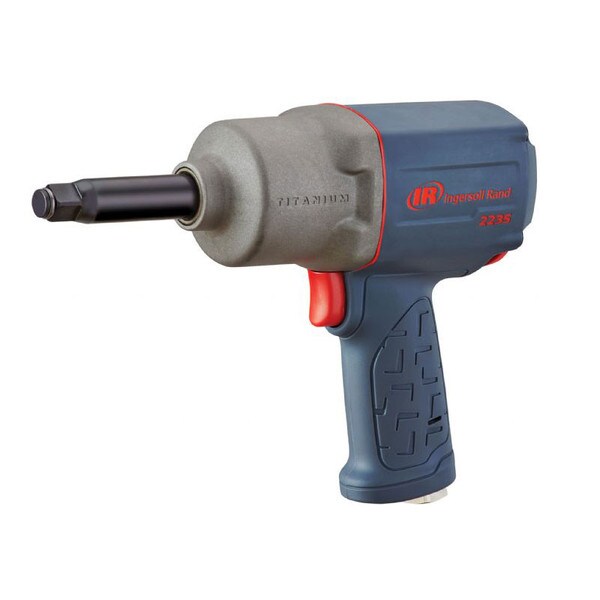

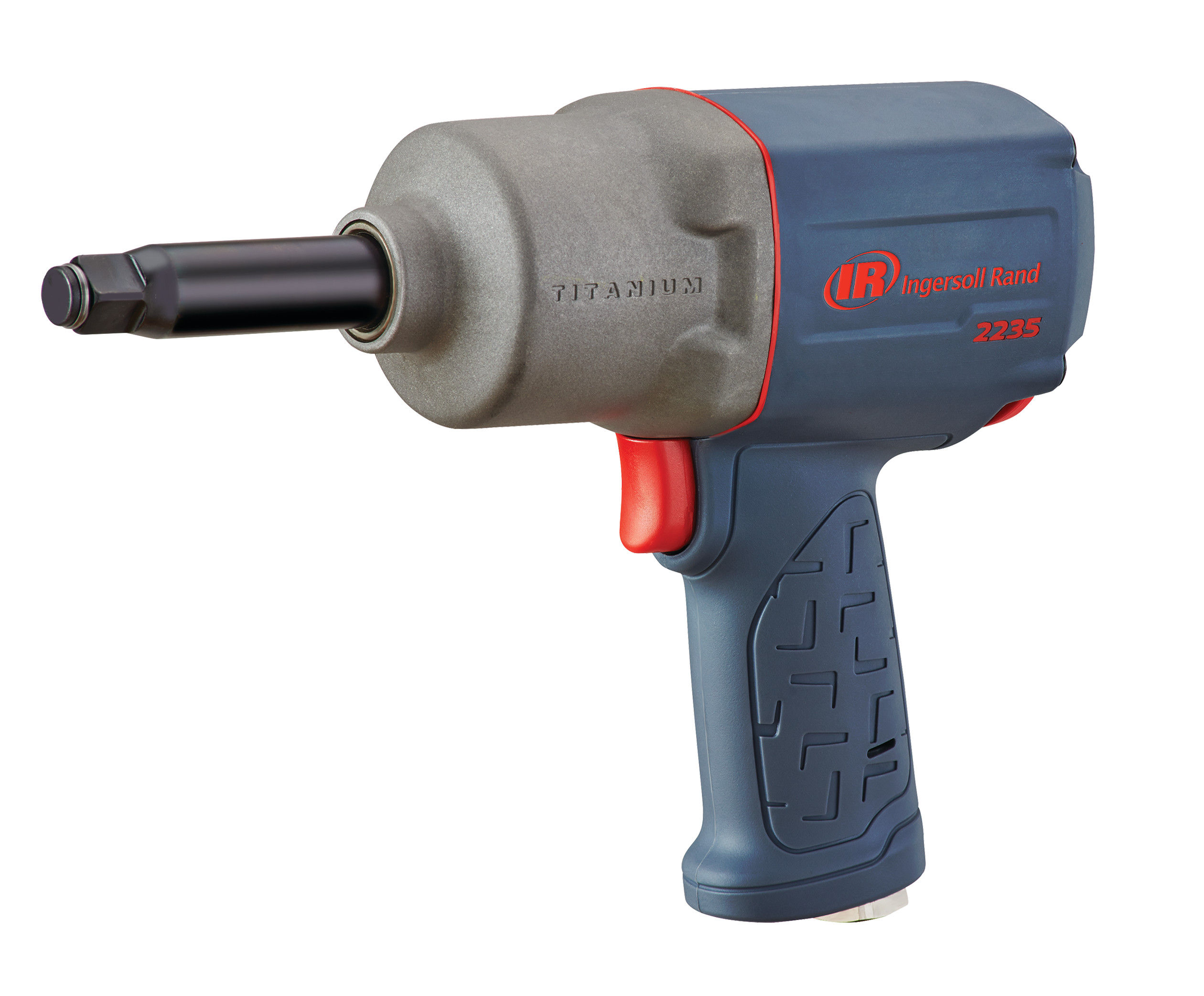

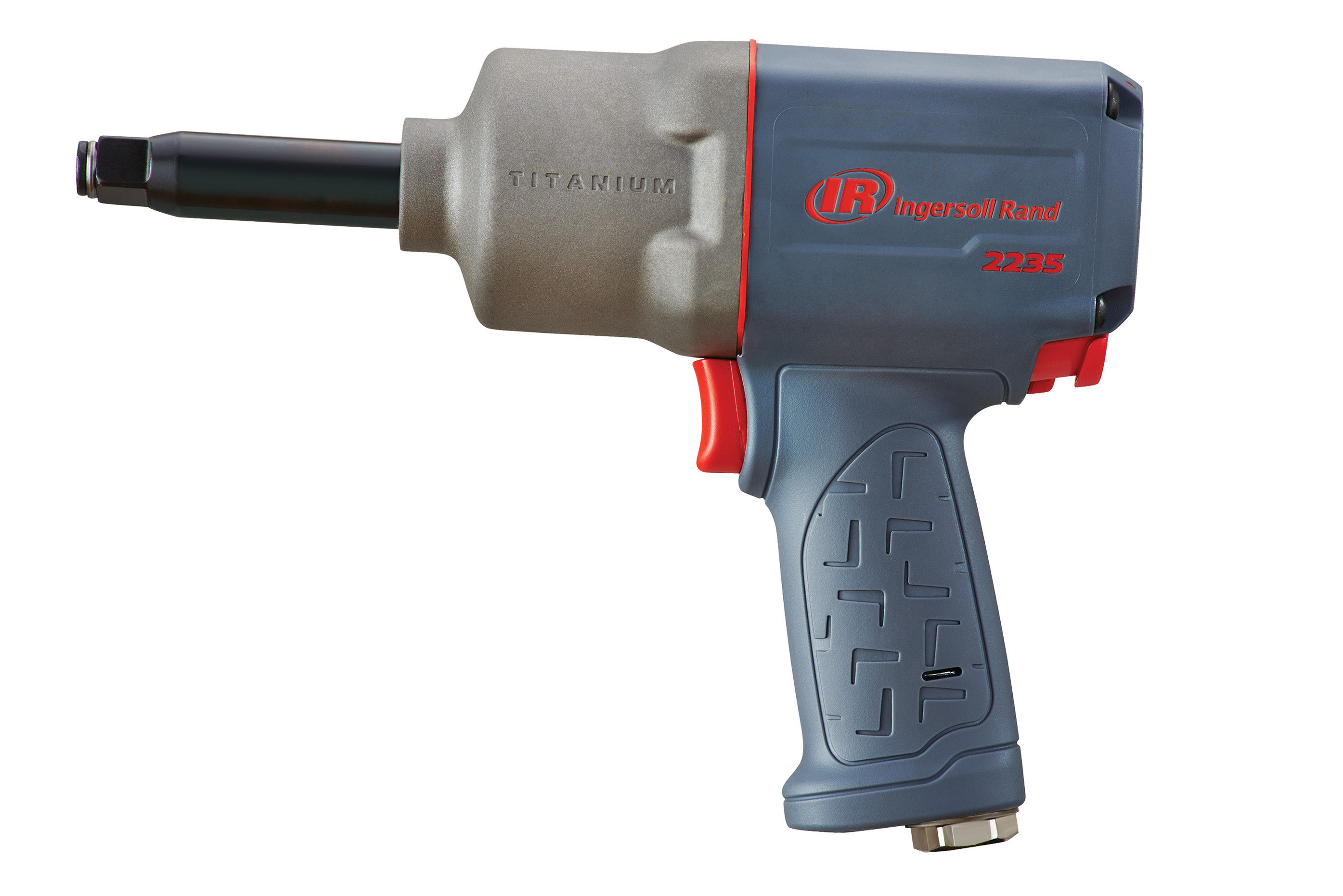

Ingersoll Rand Impact Wrench, 1/2 in. square 2 in. Extended drive, 930 ft lbs

Impact Wrench, 1/2 in. square 2 in. Extended drive, 930 ft lbs, model 2235TiMAX-2 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!

2235TiMAX-2 by Ingersoll Rand

The 2235TiMAX-2 Impact Wrench has a 1/2 in. square drive and a free speed of 8500 rpm.

With the ability to go up to 1220 bpm, The Ingersoll Rand 2235TiMAX-2 can go up to a maximum torque of 930 ft lbs.

Back

Features & Benefits

  • 1350 ft-lb nut-busting torque
  • Finely tuned impact mechanism and motor deliver more torque, durability, and efficiency
  • Hog-Ring, 2'' extension
  • Optimized for the vehicle repair industry, heavy trucks, tire lanes, fleet maintenance, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction
Back

Technical Specifications

Model
2235TiMAX-2
Drive size
1/2'' square
Manufacturer
Ingersoll Rand
Length (In)
9.6
Free Speed (RPM)
8500
SKU
2235TIMAX-2
Stock Code
3
Style
Pistol Grip
Max Torque (Ft Lb)
1350
Max Torque (Nm)
1760
UPC
663023000000
Max Free Speed (rpm)
8500
Min Hose Size (in)
3/8
Weight (lbs)
4.9
Blows Per Minute (bpm)
1220
Series
2235TiMAX
Air Cons. @ Load (cfm)
24
Retainer Type
Hog-Ring, 2'' extension
Vibration (m/s2)
7.7
Air Inlet NPT (in)
1/4
Drive Type
2 in. Extended
Air Cons. @ Load (L/min)
680
Capacity (in)
3/4
