261-3 | Impact Wrench, 3/4 in. square 3 in. Extended drive, 1200 ft lbs
Overview

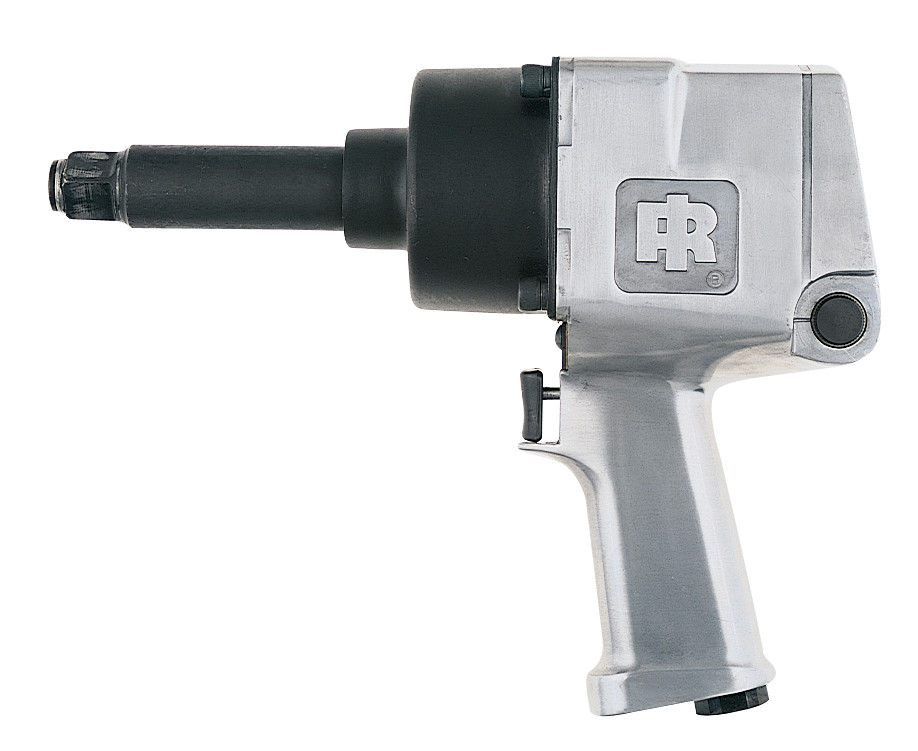

Ingersoll Rand Impact Wrench, 3/4 in. square 3 in. Extended drive, 1200 ft lbs
Impact Wrench, 3/4 in. square 3 in. Extended drive, 1200 ft lbs, model 261-3 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
261-3 by Ingersoll Rand
The 261-3 Impact Wrench has a 3/4 in. square drive and a free speed of 5500 rpm.
With the ability to go up to 1000 bpm, The Ingersoll Rand 261-3 can go up to a maximum torque of 1200 ft lbs.
Features & Benefits
- Provides a high torque output for increased power
- Jumbo hammer provides a great power-to-weight ratio
- Hog-Ring, 3'' extension
- Made to last
Technical Specifications
SKU: 261-3-IR
Power Source
Air Powered
Vibration Level
10.4
Duty Rating
Super Duty
Air Inlet Size
3/8" NPT
Min Hose Size
1/2
Air Pressure (PSI)
90
Air Consumption @ Load
38
Avg Air Consumption
9.5
Retainer
Friction Ring
Drive Size
3/4
Max Torque (ft-lb)
1100
Max Torque (in-lb)
13196
Max Torque (Nm)
1491
Free Speed (RPM)
5500
Drive Type
Square
Mechanism
Jumbo Hammer
Exhaust Direction
Bottom
Motor Type
Non-Biased
Technical Documents
Ingersoll Rand 261 271 Series Air Impact Wrench Product Information (PDF)- Ingersoll Rand 261 271 Series Air Impact Wrench Parts Breakdown (PDF)
- Ingersoll Rand Air Impact Wrench Safety Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
