2145QiMAX-6 | Impact Wrench, 3/4 in. square 6 in. Extended drive, 1350 ft lbs
Overview

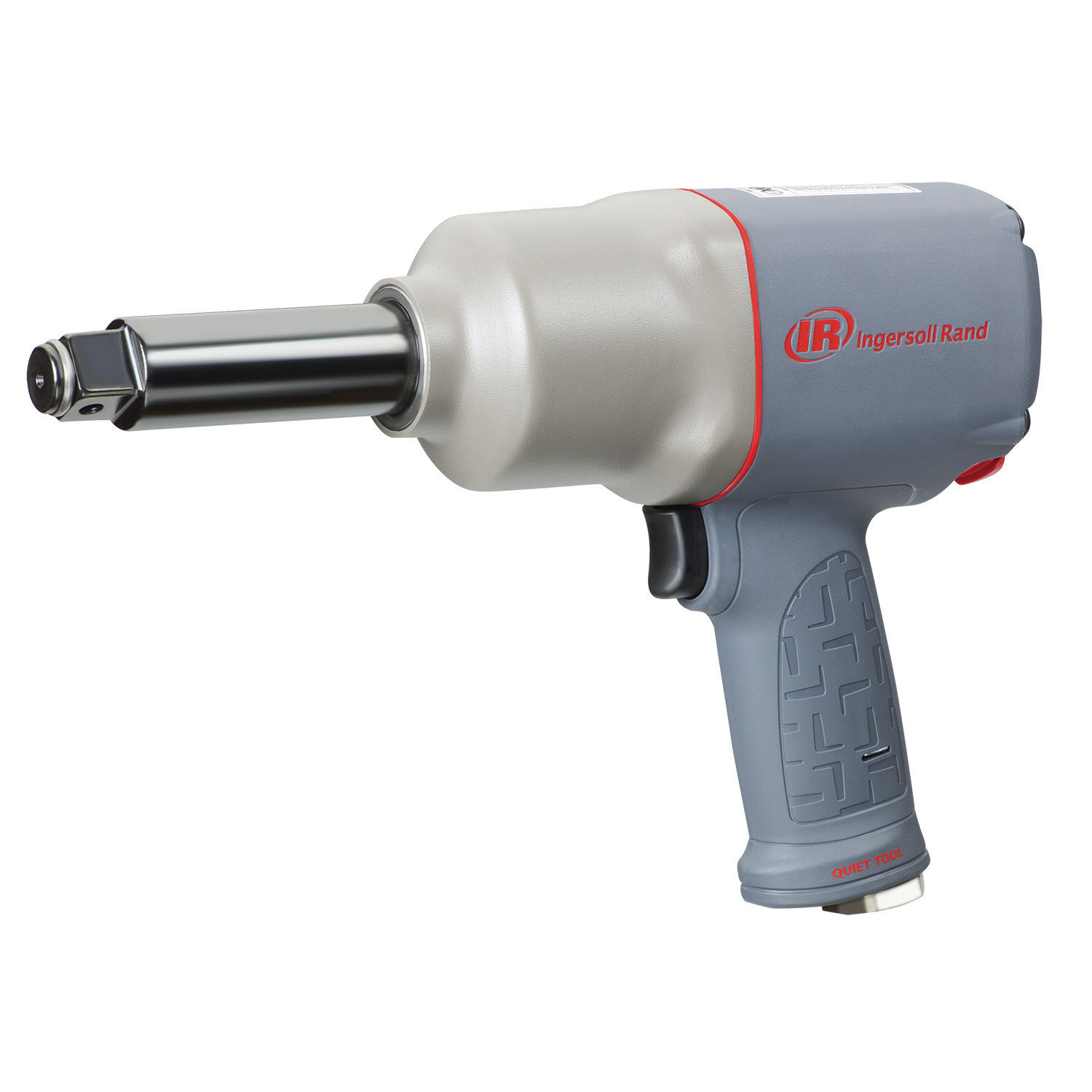

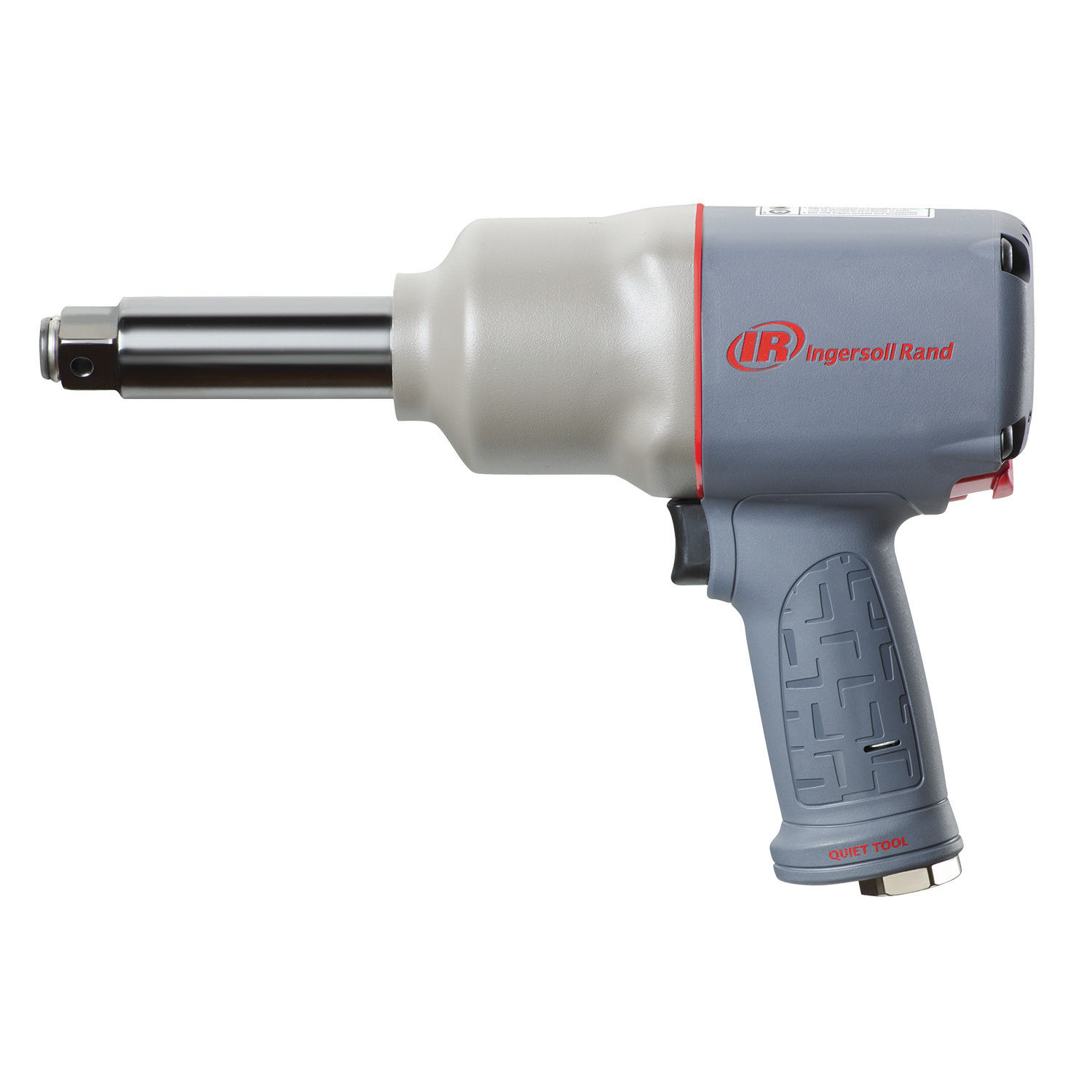

Ingersoll Rand Impact Wrench, 3/4 in. square 6 in. Extended drive, 1350 ft lbs
Impact Wrench, 3/4 in. square 6 in. Extended drive, 1350 ft lbs, model 2145QiMAX-6 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
2145QiMAX-6 by Ingersoll Rand
The 2145QiMAX-6 Impact Wrench has a 3/4 in. square drive and a free speed of 7000 rpm.
With the ability to go up to 1150 bpm, The Ingersoll Rand 2145QiMAX-6 can go up to a maximum torque of 1350 ft lbs.
Features & Benefits
- Built to last and designed to withstand tough use in rugged environments
- Compact to access tight spaces
- Hog-Ring and Thru-Hole, 6'' extension
Technical Specifications
SKU: 2145QIMAX-6-IR
Power Source
Air Powered
Vibration Level
8.1
Duty Rating
Maintenance Duty
Air Inlet Size
3/8" NPT
Min Hose Size
1/2
Air Pressure (PSI)
90
Air Consumption @ Load
32
Avg Air Consumption
8.5
Retainer
Friction Ring and Thru-hole
Drive Size
3/4
Max Torque (ft-lb)
1350
Max Torque (in-lb)
16197
Max Torque (Nm)
1830
Free Speed (RPM)
7000
Drive Type
Square
Mechanism
Twin Hammer
Exhaust Direction
Bottom
Motor Type
Reverse Bias
Breakaway Torque (ft-lb)
1700
Breakaway Torque (Nm)
2305
Technical Documents
Ingersoll Rand 2145QiMAX 2155QiMAX Series Air Impact Wrench Product Information (PDF)- Ingersoll Rand 2145QiMAX 2155QiMAX Series Air Impact Wrench Parts Breakdown (PDF)
- Ingersoll Rand Air Impact Wrench Safety Information (PDF)
- Ingersoll Rand 2145QiMAX Series Air Impact Wrench Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
