Features & Benefits
- Built with a steel hammer case and metal housing
- Designed for the professional with over 1475 ft-lbs of torque for the toughest applications
- Spline, Hog Ring, 6'' extension
Technical Information
Technical Specifications
Technical Specifications

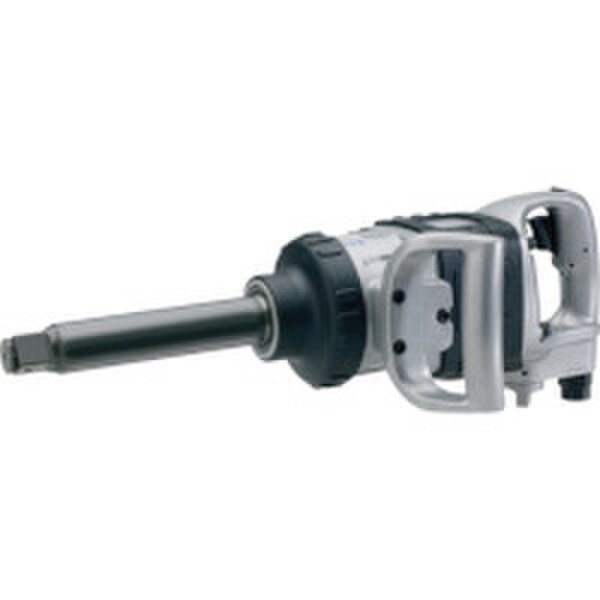

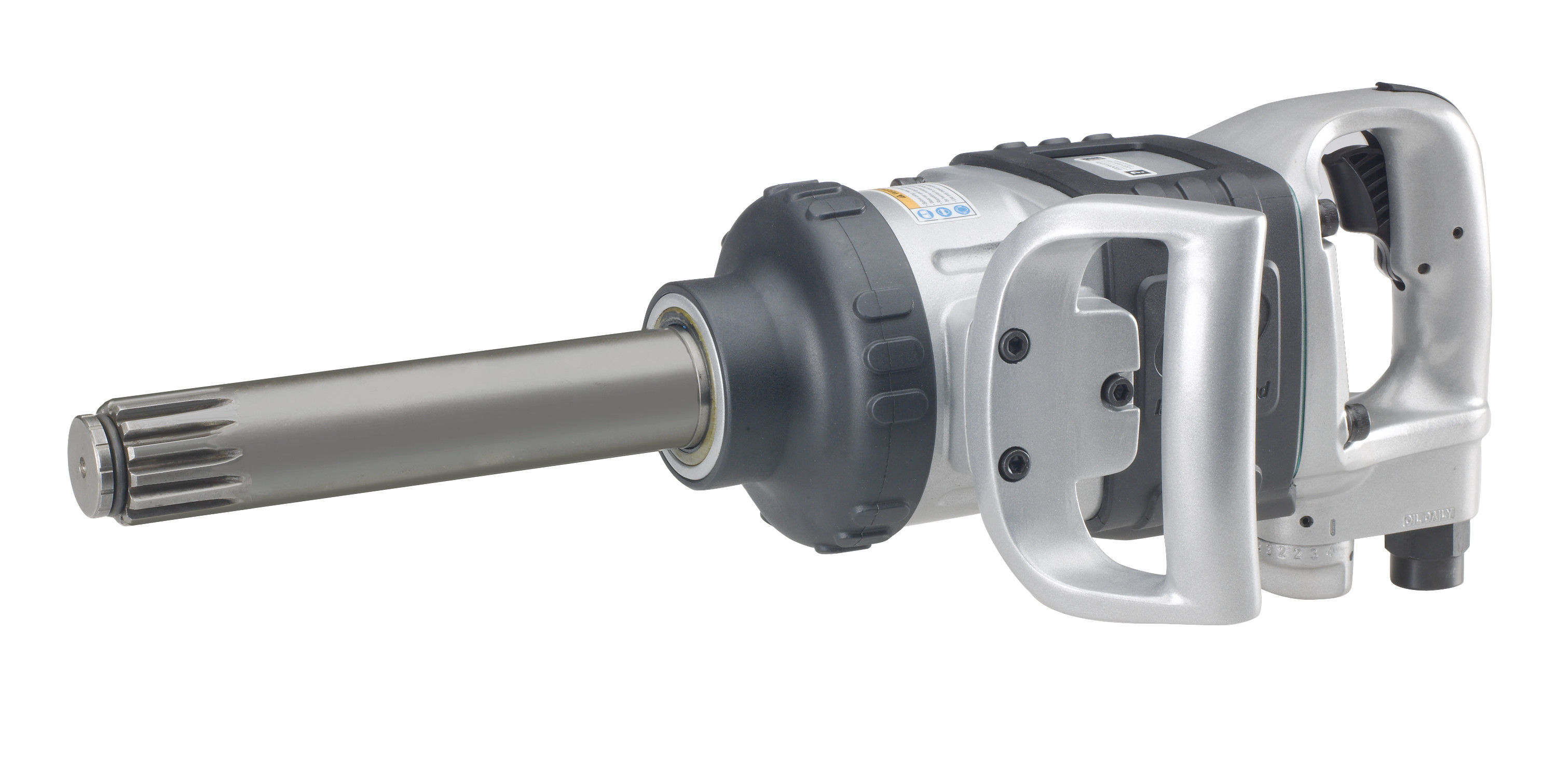

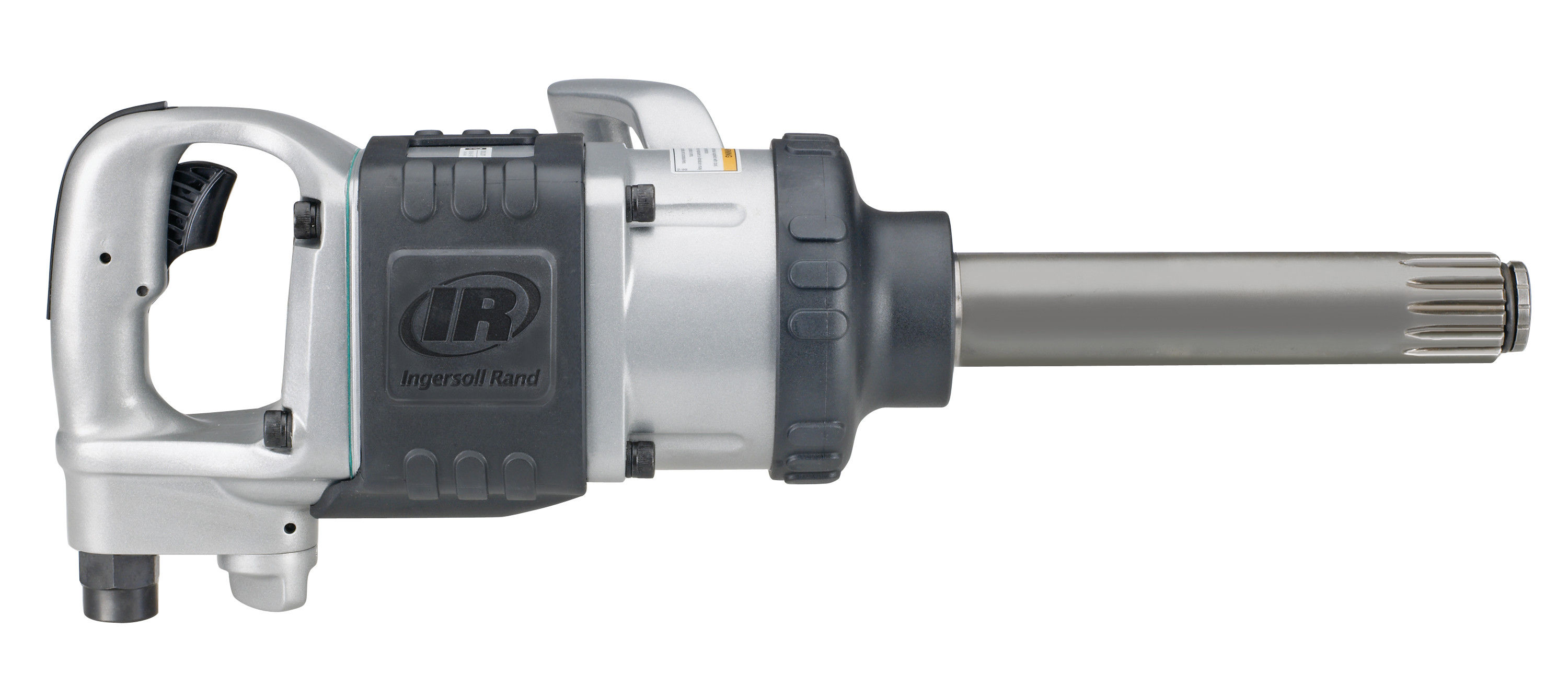

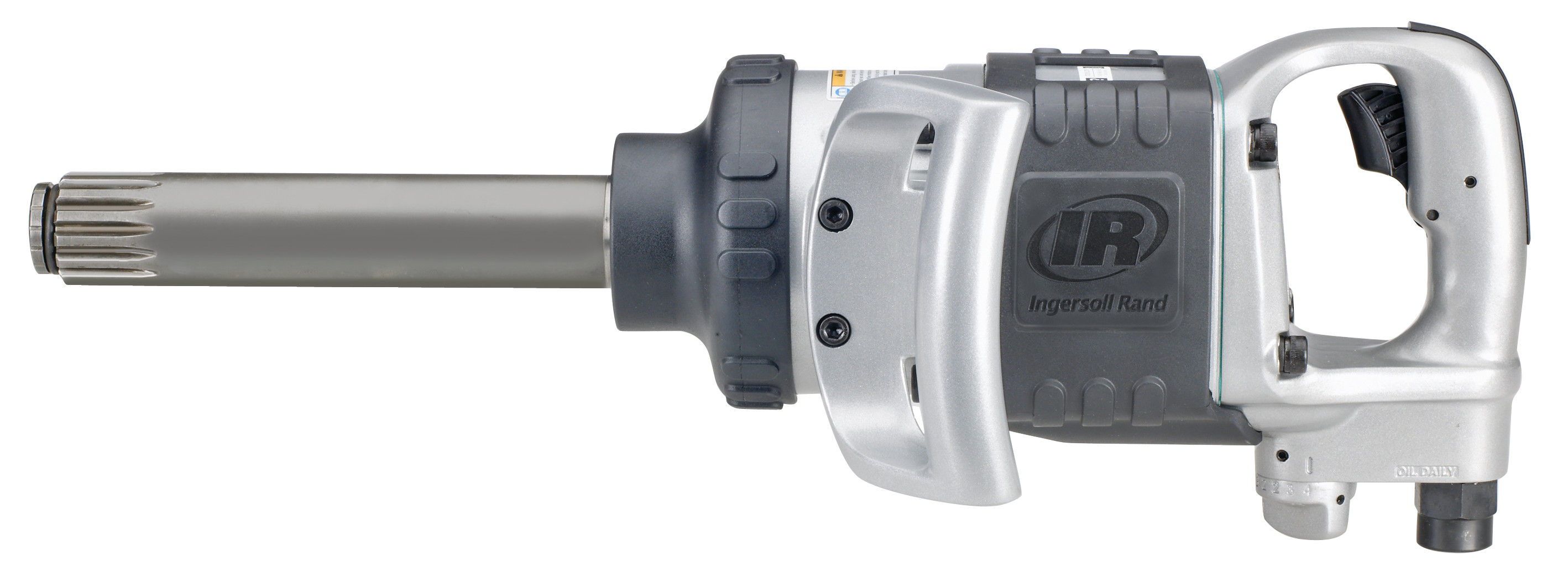

SKU: 285B-S6-IR
Manufacturer Ingersoll Rand
Model 285B-S6
Stock CodeA
Actuation Inside Trigger
Air Inlet 1/2 in.
Blows Per Minute (bpm) 700
Drive size #5 Spline
Drive Type 6 in. Extended
Free Speed (RPM) 5250
Length (In) 20.4
Max Free Speed (rpm) 5000
Retainer Type Spline, Hog Ring, 6'' extension
Series 285B
Torque Range (Ft Lbs) 100 - 1475
Torque Range (Nm) - 2000
Weight27.8 lbs
