3942B1Ti | Impact Wrench, No. 5 spline drive, 3252 ft lbs, inside trigger
Overview

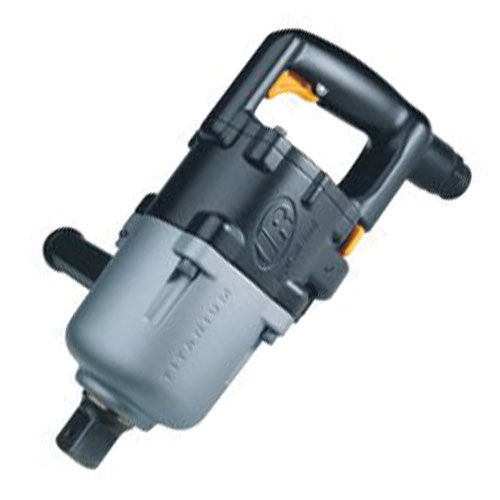

Ingersoll Rand Impact Wrench, No. 5 spline drive, 3252 ft lbs, inside trigger
Impact Wrench, No. 5 spline drive, 3252 ft lbs, inside trigger, model 3942B1Ti by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
3942B1Ti by Ingersoll Rand
The 3942B1Ti Impact Wrench has a No. 5 spline drive and a free speed of 5000 rpm.
With the ability to go up to 850 bpm, The Ingersoll Rand 3942B1Ti can go up to a maximum torque of 3252 ft lbs.
Features & Benefits
- Corrosion and wear resistant
- Can withstand the harshest conditions
- Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding
Technical Specifications
SKU: 3942B1TI-IR
Power Source
Air Powered
Vibration Level
16.9
Duty Rating
Super Duty
Air Inlet Size
1/2" NPT
Min Hose Size
3/4
Air Pressure (PSI)
90
Avg Air Consumption
95
Retainer
Thru-hole
Drive Size
No. 5
Max Torque (ft-lb)
3250
Max Torque (in-lb)
39005
Max Torque (Nm)
4407
Free Speed (RPM)
5000
Drive Type
Spline
Mechanism
Twin Hammer
Exhaust Direction
Bottom
Motor Type
Reverse Bias
Vibration Uncertainty
4.6
Technical Documents
Ingersoll Rand 3940 3942 Series Air Impact Wrench Product Information (PDF)- Ingersoll Rand 3940 3942 Series Air Impact Wrench Parts Breakdown (PDF)
- Ingersoll Rand Air Impact Wrench Safety Information (PDF)
- Ingersoll Rand 3940 3942 3955 Series Air Impact Wrench Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
