3955B1Ti | Impact Wrench, No. 5 spline drive, 5000 ft lbs, inside trigger
Overview

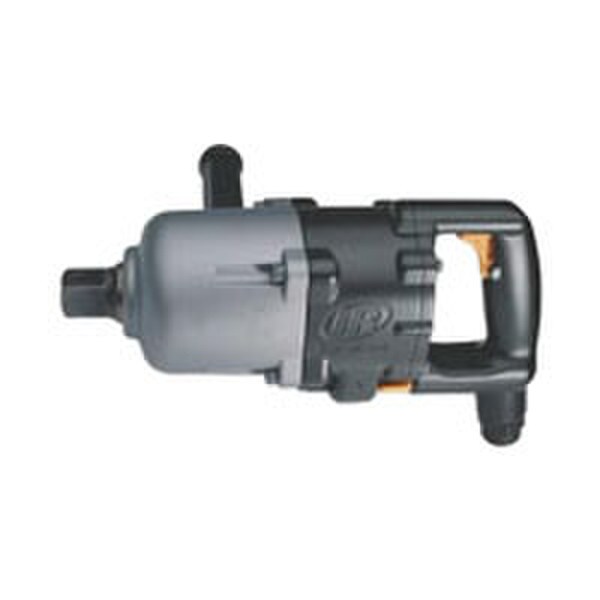

Ingersoll Rand Impact Wrench, No. 5 spline drive, 5000 ft lbs, inside trigger
Impact Wrench, No. 5 spline drive, 5000 ft lbs, inside trigger, model 3955B1Ti by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
3955B1Ti by Ingersoll Rand
The 3955B1Ti Impact Wrench has a No. 5 spline drive and a free speed of 2750 rpm.
With the ability to go up to 700 bpm, The Ingersoll Rand 3955B1Ti can go up to a maximum torque of 5000 ft lbs.
Features & Benefits
- Corrosion and wear resistant
- Can withstand the harshest conditions
- Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding
Technical Specifications
Model
3955B1Ti
Type
Impact Wrench
Drive size
#5 Spline
Manufacturer
Ingersoll Rand
Length (In)
16.5
Min Torque (Ft Lb)
1600
Free Speed (RPM)
2750
SKU
3955B1TI
Stock Code
3
Style
D-Handle
Max Torque (Ft Lb)
5000
Max Torque (Nm)
6779
UPC
00663023096391
Max Free Speed (rpm)
2750
Min Hose Size (in)
3/4
Weight (lbs)
34.6
Blows Per Minute (bpm)
700
Actuation
Inside Trigger
Series
3900
Retainer Type
Thru-Hole
Impact Per Minute
700
Technical Documents
Ingersoll Rand 3940 3942 Series Air Impact Wrench Product Information (PDF)- Ingersoll Rand 3940 3942 Series Air Impact Wrench Parts Breakdown (PDF)
- Ingersoll Rand Air Impact Wrench Safety Information (PDF)
- Ingersoll Rand 3940 3942 3955 Series Air Impact Wrench Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
