3955A1Ti | Impact Wrench, No. 5 spline drive, 5000 ft lbs, outside trigger
Overview

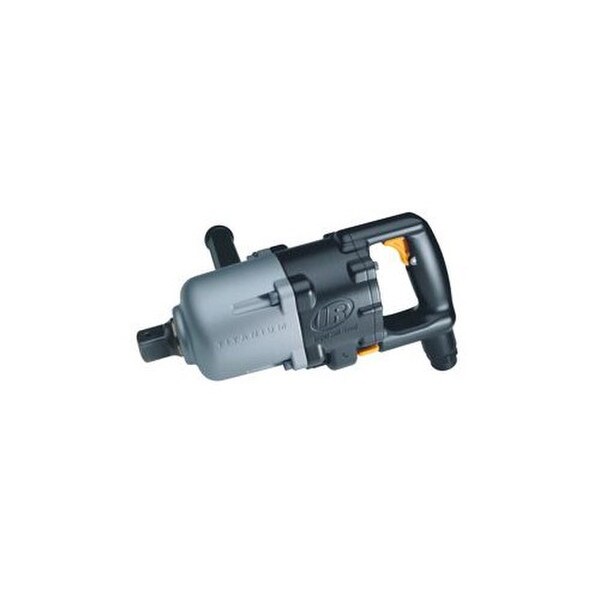

Ingersoll Rand Impact Wrench, No. 5 spline drive, 5000 ft lbs, outside trigger
Impact Wrench, No. 5 spline drive, 5000 ft lbs, outside trigger, model 3955A1Ti by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
3955A1Ti by Ingersoll Rand
The 3955A1Ti Impact Wrench has a No. 5 spline drive and a free speed of 2750 rpm.
With the ability to go up to 700 bpm, The Ingersoll Rand 3955A1Ti can go up to a maximum torque of 5000 ft lbs.
Features & Benefits
- Corrosion and wear resistant
- Can withstand the harshest conditions
- Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding
Technical Specifications
Model
3955A1Ti
Type
Impact Wrench
Drive size
#5 Spline
Manufacturer
Ingersoll Rand
Length (In)
16.5
Free Speed (RPM)
2750
SKU
3955A1TI
Style
D-Handle
Max Torque (Ft Lb)
5000
Max Torque (Nm)
6779
Weight (lbs)
34.6
Blows Per Minute (bpm)
700
Actuation
Outside Trigger
Series
3900
Retainer Type
Thru-Hole
Technical Documents
Ingersoll Rand 3940 3942 Series Air Impact Wrench Product Information (PDF)- Ingersoll Rand 3940 3942 Series Air Impact Wrench Parts Breakdown (PDF)
- Ingersoll Rand Air Impact Wrench Safety Information (PDF)
- Ingersoll Rand 3940 3942 3955 Series Air Impact Wrench Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
