44SMA | Large Drill, 155 rpm, 3.6 hp, No. 4 Morse Taper spindle
Overview

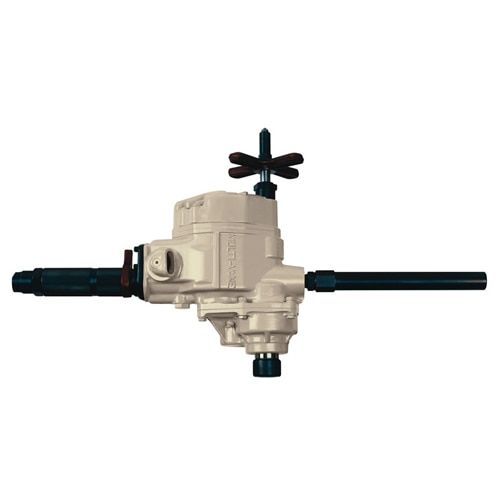

Ingersoll Rand Large Drill, 155 rpm, 3.6 hp, No. 4 Morse Taper spindle
Large Drill, 155 rpm, 3.6 hp, No. 4 Morse Taper spindle, model 44SMA by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Large Drill available elsewhere for a lower price? Contact Customer Service about price matching!
44SMA by Ingersoll Rand
The 44SMA Large Drill has a No. 4 Morse Taper spindle and can go up to 155 rpm
Features & Benefits
- Side exhaust to keep exhaust air pointed away from you and away from your work
- Governed motor that regulates air intake to keep these drills working at the peak of their power curve
Technical Specifications
SKU: 44SMA-IR
Model
44SMA
Type
Large Drill
Manufacturer
Ingersoll Rand
Free Speed (RPM)
155
SKU
44SMA
Stock Code
3
UPC
00663023131221
Reamer Capacity
2
Max Free Speed (rpm)
155
Weight (lbs)
43.75
Series
44
Max Power (kw)
2.69
Spindle Attachment
N/A
Feed Lenght (in)
4.25
Spindle
No. 4 Morse Taper
Rated Power (hp)
3.6
Drilling Capacity
2
Technical Documents
- Ingersoll Rand 44 Series Large Air Drill Product Information (PDF)
- Ingersoll Rand 44 Series Large Air Drill Parts Breakdown (PDF)
- Ingersoll Rand Air Drill Safety Information (PDF)
- Ingersoll Rand 44 Series Large Air Drill Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
