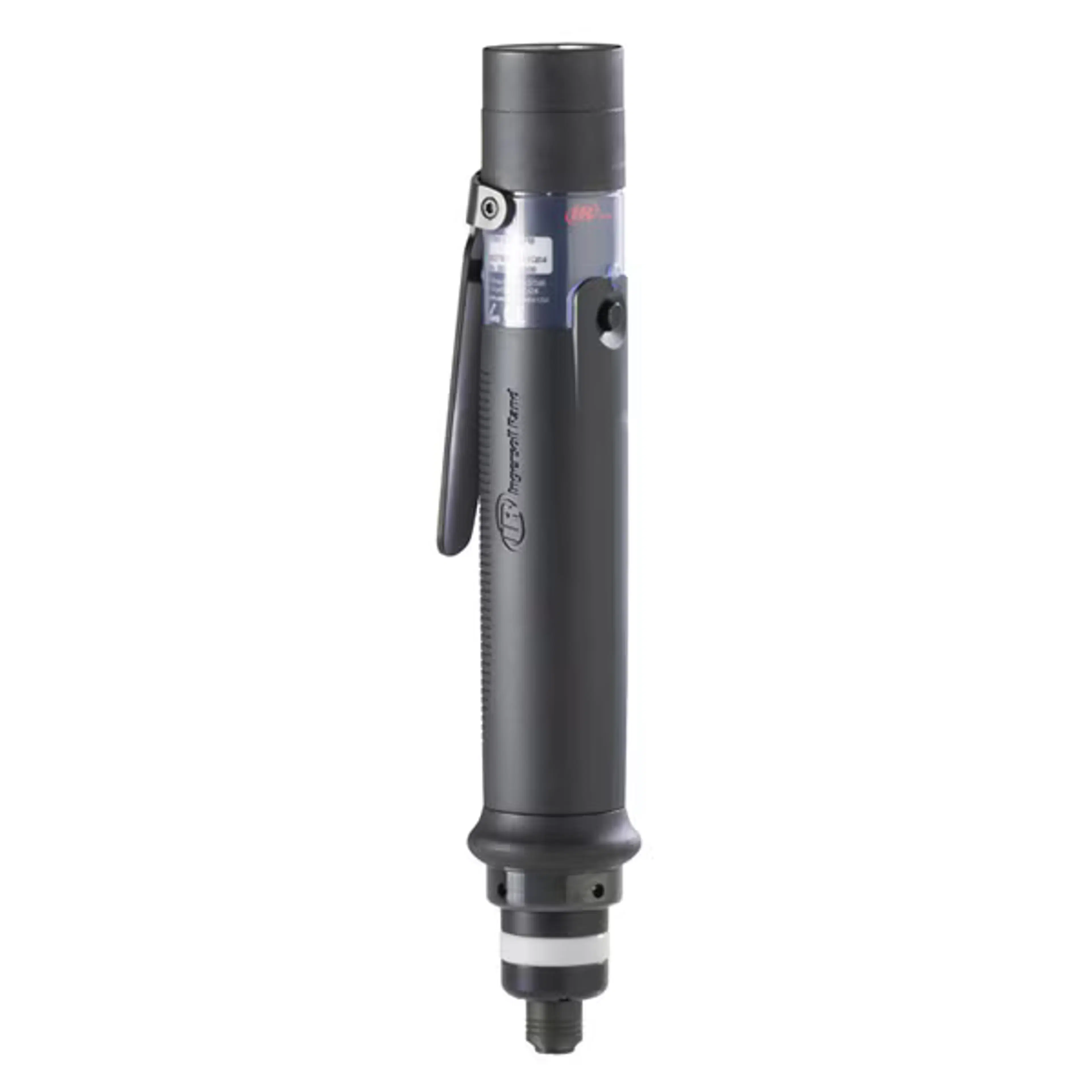

QE2SC007F32S06 | Inline Electric Nutrunner, 7 Nm, 3/8'' square
Overview
Ingersoll Rand QE2SC007F32S06
3/8" Square Inline Machine Start Nutrunner, 11.5 - 57.5 in lbs
A proven world-class combination — QE2 Series tools and IC Series controllers team up to provide superior accuracy, ergonomics and durability to meet your critical fastening requirements and maximize your productivity.
Features:
- True closed-loop transducerized torque and angle control provides excellent accuracy
- Advanced Tightening Strategies
- Data and Process Communications
- TactAlert provides positive feedback to the operator without distraction from the task
- Bright LED headlights
- ESD Safe
- RoHS Compliant
- Lightweight, compact, high-speed, easily accessible controls
- Bright LEDs provide visible status indication
- Comfortable, Ergonomic grip and hand rest
- Preventative maintenance alerts
Note: IC12D1A1AWS Controller required
Features & Benefits
- Provides exceptionable accuracy and traceability
- TactAlert, preventative maintenance alarms, LED headlights and more
- ESD-Safe & RoHS compliant
- Equipped with non-contacting switches, heavy duty gear train and a brushless DC motor
Technical Specifications
Model
QE2SC007F32S06
Type
Electric Nutrunner
Drive size
3/8'' square
Manufacturer
Ingersoll Rand
Motor Type
Type 2
Free Speed (RPM)
1250
SKU
QE2SC007F32S06
Stock Code
2
Start Type
Remote Start
Style
Inline
Min Torque (In Lb)
11.5
Max Torque (In Lb)
57.5
Max Torque (Ft Lb)
11.5 - 57.5
Max Torque (Nm)
7
Mounting
Flanged Gearcase
Square Drive
3/8
Max Free Speed (rpm)
12500
Output
50mm spindle, 19mm float
Series
QE2
Drive Type
3/8" square
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
