Features & Benefits
- Standard torque accuracy is +/- 5% of reading
- Anti-backlash device: self-contained, 3 position
- single stage planetary gear system
- tubular reaction bar
Technical Information
Technical Specifications
Technical Specifications
SKU: J6232-proto
Manufacturer Stanley Proto

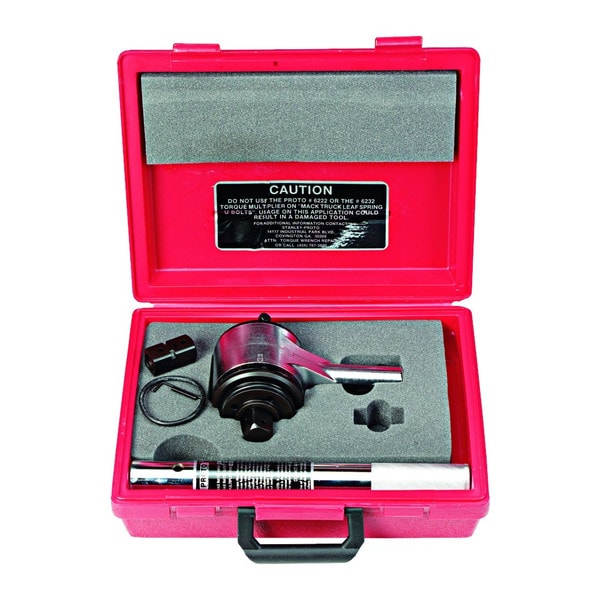

Model J6232
Drive size 1/2'' square
Length (In) 16.10
Overall Length 19-19/32''
Series J6
Torque Range (Ft Lbs) 173 - 3200
Torque Range (Nm) 235 - 4338
Weight22.57 lbs
