Features & Benefits
- Standard torque accuracy is +/- 5% of reading
- Anti-backlash device: self-contained, 3 position
- three stage planetary gear system
- tubular reaction bar
Technical Information
Technical Specifications
Technical Specifications

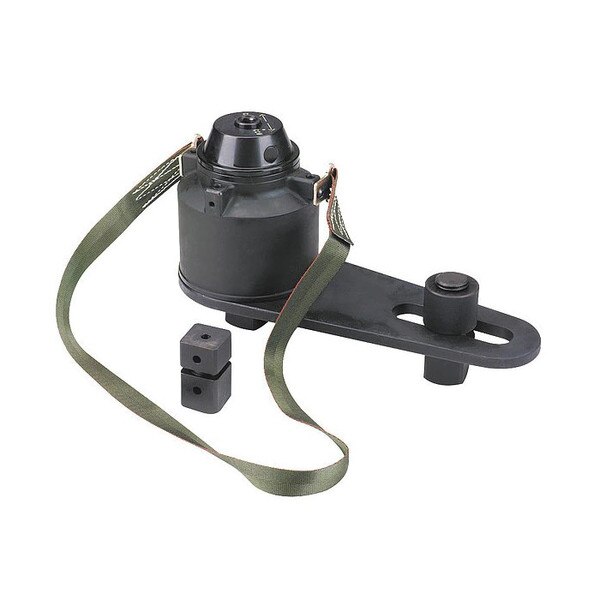

SKU: J6242-proto
Manufacturer Stanley Proto
Model J6242
Drive size 1/2'' square
Length (In) 20.60
Overall Length 14-29/32''
Series J6
Torque Range (Ft Lbs) 189 - 5000
Torque Range (Nm) 256 - 6778
Weight42.27 lbs
