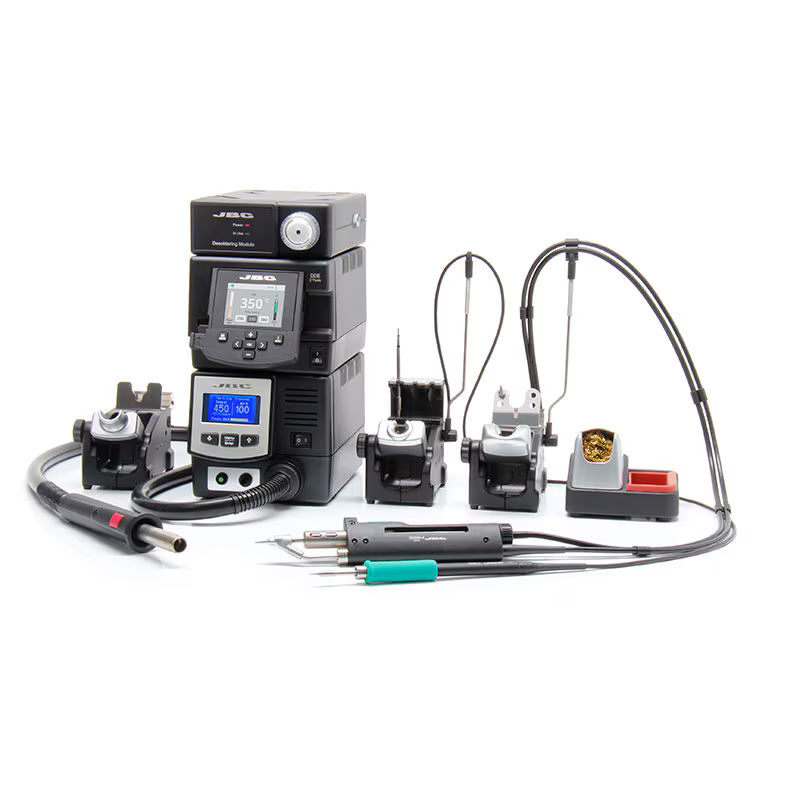

JBC RMVE Rework Station
Overview
The quickest and safest solution for soldering and rework, also using Hot Air.
It consists of stackable modules and all the necessary accessories to make your job easier.
It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.
It features all the Excellence range benefits and the JT-SD Stand that guarantees the Auto-stop function when the heater is at rest.
The RMVE works simultaneously with the DR560 Desoldering Iron, the T245 Handle and the JT-TA Heater Hose Set and is compatible with most JBC tools.
Required compressed air at the operator´s bench.
Spefications vary by setup:
| Weight and Dimensions | See individual modules |
| Voltage | 120 V / 230 V / 100 V |
| Input Fuse | DDE: 4A/ 2A/ 5A JT: 8A/ 4A/ 8A |
| Output Peak Power | DDE: 150 W per tool |
| Nominal Power | JT: 700 W |
| Temperature selection | JT: 150-450ºC (300-840ºF) or Cool mode: Temp Off DDE: 90-450 ºC (190-840 ºF) |
| Idle Temp. Stability (still air) | DDE: ± 1.5 ºC (± 3 ºF) |
| Ambient operating temp. | 10-40 ºC (50-104 ºF) |
| Air Flow Regulation | DDE: 10-50 SLPM |
| Flow rate | MSE: 15 SLPM |
| Vacuum | JT: 30% / 228 mmHg / 9 inHg |
| Vacuum (at 6 bar) | MVE: 90%/680 mmHg/26.8 inHg |
| Rated current | JT: 6A/ 3A / 7A |
| Tip to ground resistance | DDE:<2 ohms |
| Tip to ground voltage | DDE:<2 mV RMS |
| Communication connectors | JT: USB-B DDE: USB-A/USB-B/Peripherals |
| Robot connector | DDE: RJ12 for RS-232 protocol |
| Pedal connection | JT and MSE: P-005 Pedal |
Features & Benefits
- ESD Compliant
- <2 ohms tip to ground resistance
- From $3627
- 100V / 120V/ 230V Models Available
Technical Documents
JBC RMVE Complete Rework Station Manual (PDF)- JBC Hot Air Station Brochure (PDF)
- JBC Excellence Range Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
