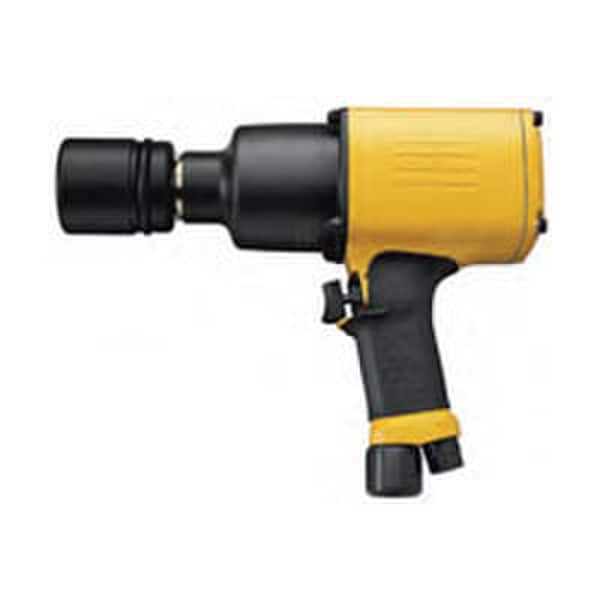

Atlas Copco 8434 1180 00 | LMS18 HR13 | Impact Wrench, 10 - 110 Nm, 8100 rpm, 1/2'' square

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Atlas Copco 8434 1180 00 | LMS18 HR13 | Impact Wrench, 10 - 110 Nm, 8100 rpm, 1/2'' square

Rating:
(0)No Reviews yet
Call for Price
Atlas Copco

Details

Atlas Copco 8434 1180 00

Pistol Grip, Non-Shut Off, Impact Wrench, 7-81 Ft Lb


Atlas Copco impact wrenches are designed to provide dependability and a long, trouble-free service life in the toughest conditions. Few other tools can match the Atlas Copco impact wrench when it comes to flexibility, capacity-to-weight ratio and simplicity in use and maintenance. The LMS models are non shut-off, which means they will shut off once the operator releases the trigger.

Features:
  • Fast tightening and disassembly
  • Negligible reaction force
  • Low weight
  • High power-to-weight ratio
  • Tightening time should not exceed 5 seconds, to avoid excess wear on the tool
  • Soft-start throttle
  • GRS, Grease Retaining System

Designed to provide dependability and a long, trouble-free service life in the toughest conditions. The LMS is a non shut-off impact wrench with extraordinary power to weight qualities and virtually no reaction force during tightening, typically used where fast tightening or disassembly is needed.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Extremely fast tightening and loosening
  • Longer service life
  • Greater operator comfort
  • Reduced risk of vibration related injuries

Technical Information

Technical Specifications

Technical Specifications

SKU: 8434 1180 00
Manufacturer Atlas Copco
Model LMS18 HR13
Stock CodeC
Actuation Trigger
Air Inlet 1/4 in.
Blows Per Minute (bpm) 1500
Bolt Size - mm 10
Drive size 1/2'' square
Free Speed (RPM) 8100
Impacts Per Minute 1500
Length (mm) 144
Max Air Consumption (cfm) 18
Max Free Speed (rpm) 8100
Min Hose Size (mm) 10
Retainer Type Pin
Series LMS
Torque Range (Ft Lbs) 7 - 110
Torque Range (Nm) 10 - 150
Weight3.2 lbs
