8434 1680 01 | LMS68 HR25 | Impact Wrench, 600 - 1800 Nm, 5000 rpm, 1'' square

(0)No Reviews yet

Designed to provide dependability and a long, trouble-free service life in the toughest conditions. The LMS is a non shut-off impact wrench with extraordinary power to weight qualities and virtually no reaction force during tightening, typically used where fast tightening or disassembly is needed.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

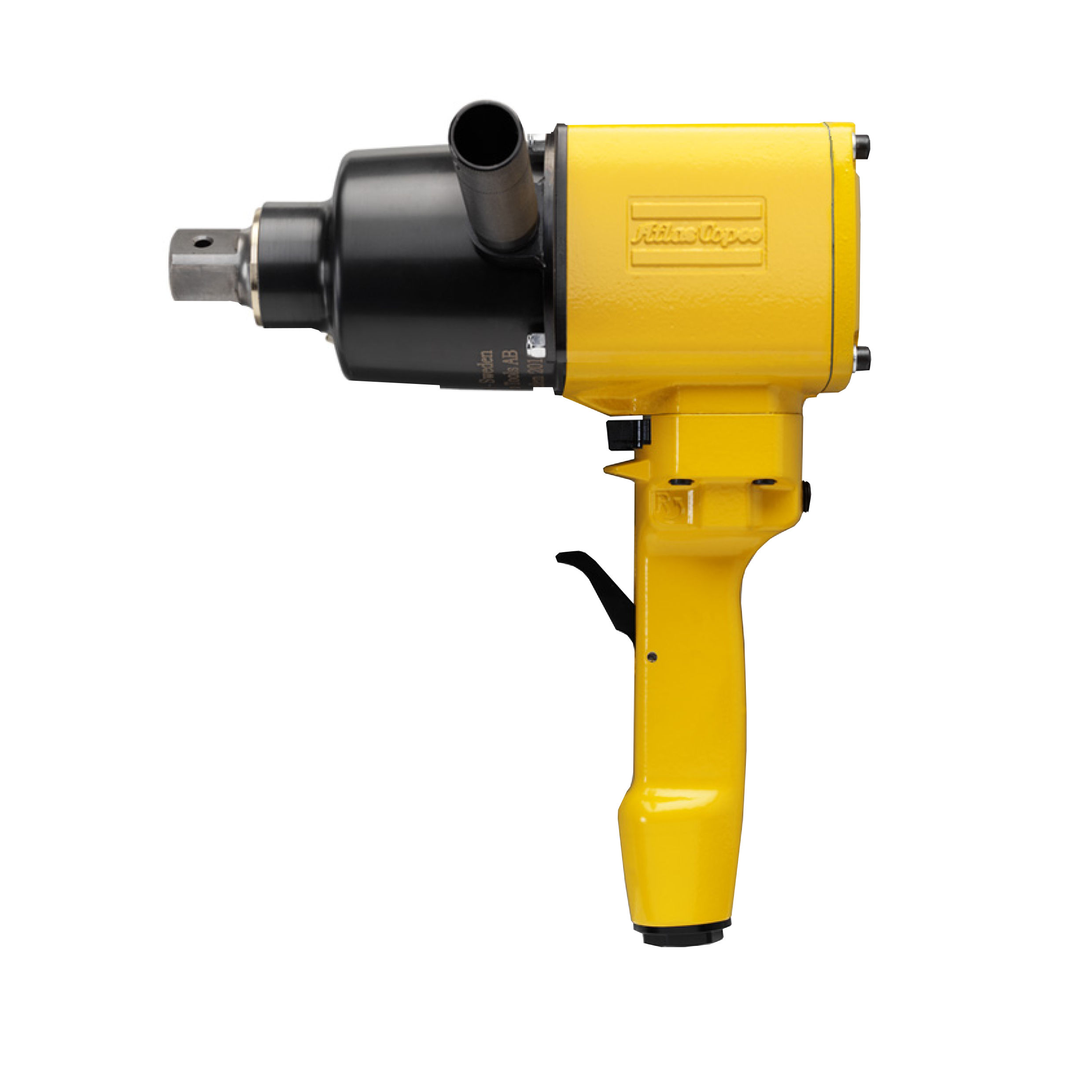

Atlas Copco 8434 1680 01

Pistol Grip, Non-Shut Off, Impact Wrench, 442-1400 Ft Lb


Atlas Copco impact wrenches are designed to provide dependability and a long, trouble-free service life in the toughest conditions. Few other tools can match the Atlas Copco impact wrench when it comes to flexibility, capacity-to-weight ratio and simplicity in use and maintenance. The LMS models are non shut-off, which means they will shut off once the operator releases the trigger.

Features:
  • Fast tightening and disassembly
  • Negligible reaction force
  • Low weight
  • High power-to-weight ratio
  • Tightening time should not exceed 5 seconds, to avoid excess wear on the tool
  • Soft-start throttle
  • GRS, Grease Retaining System
Back

Features & Benefits

  • Extremely fast tightening and loosening
  • Longer service life
  • Greater operator comfort
  • Reduced risk of vibration related injuries
Back

Technical Specifications

SKU: 8434 1680 01
airinletthread
1/2 in
boltsizemax
30 mm
boltsizemin
22 mm
csdistance
55 mm
length
252 mm
outputsize
1'
rechosesize
16 mm
squaredrivesize
1 in
weight
21.5 lb
impactspermin
780 per-min
modeltype
Pistol
outputtype
Square, Male
shutoff
No
maxtorque
4450 Nm
torquerangemax
1800 Nm
torquerangemin
600 Nm
freespeed
5000 r/min
airconsumption
28 l/s
maxworkingpressure
100 psig
soundpower
109 dB(A)
soundpressure
98 dB(A)
soundstandard
ISO15744
sounduncertainty
3 dB(A)
vibrationstandard
ISO28927-2
vibrationuncertainty
2.8 m/s²
vibrationvalue
8.1 m/s²
eaccertified
Yes
eulegislation
2006/42/EC
eustandard
EN ISO 11148-6:2012
ukregulations
S.I. 2008/1597
ukstandard
EN ISO 11148-6:2012
