8434 1880 00 | LMS88 GIR38 | Inline Impact Wrench, 1000 - 10000 Nm, 3800 rpm, 1-1/2'' square
Overview

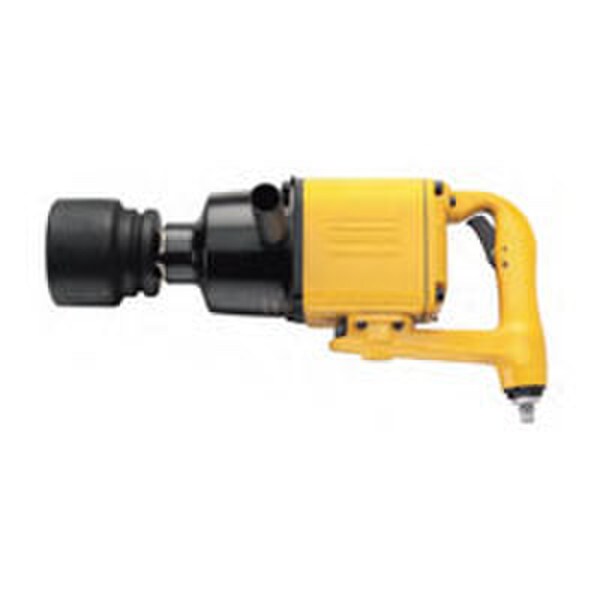

Atlas Copco 8434 1880 00
Straight, Non-Shut Off, Impact Wrench, 737-4054 Ft Lb
Atlas Copco impact wrenches are designed to provide dependability and a long, trouble-free service life in the toughest conditions. Few other tools can match the Atlas Copco impact wrench when it comes to flexibility, capacity-to-weight ratio and simplicity in use and maintenance. The LMS models are non shut-off, which means they will shut off once the operator releases the trigger.
Features:- Fast tightening and disassembly
- Negligible reaction force
- Low weight
- High power-to-weight ratio
- Tightening time should not exceed 5 seconds, to avoid excess wear on the tool
- Soft-start throttle
- GRS, Grease Retaining System
Features & Benefits
- Extremely fast tightening and loosening
- Longer service life
- Greater operator comfort
- Reduced risk of vibration related injuries
Technical Specifications
Model
LMS88 GIR38
Recommended Torque Range (Ft Lb)
737-4054
Drive size
1-1/2'' square
Manufacturer
Atlas Copco
Length (mm)
381
Min Torque (Ft Lb)
737
Max Air Consumption (cfm)
69.4
Free Speed (RPM)
3800
SKU
8434 1880 00
Stock Code
3
Style
D-Handle
Clutch Type
Non Shut Off
Max Torque (Ft Lb)
7370
Min Torque (Nm)
1000
Max Torque (Nm)
10000
Bolt Size - mm
30-42
Impacts Per Minute
540
Max Free Speed (rpm)
3800
Weight (lbs)
33
Blows Per Minute (bpm)
540
Actuation
Inside Trigger
Series
LMS
Retainer Type
Thru-hole
Min Hose Size (mm)
16
