M-10iA/12 | 6 Axis, 12 kg Small Payload Robot, 1420 mm reach
Overview

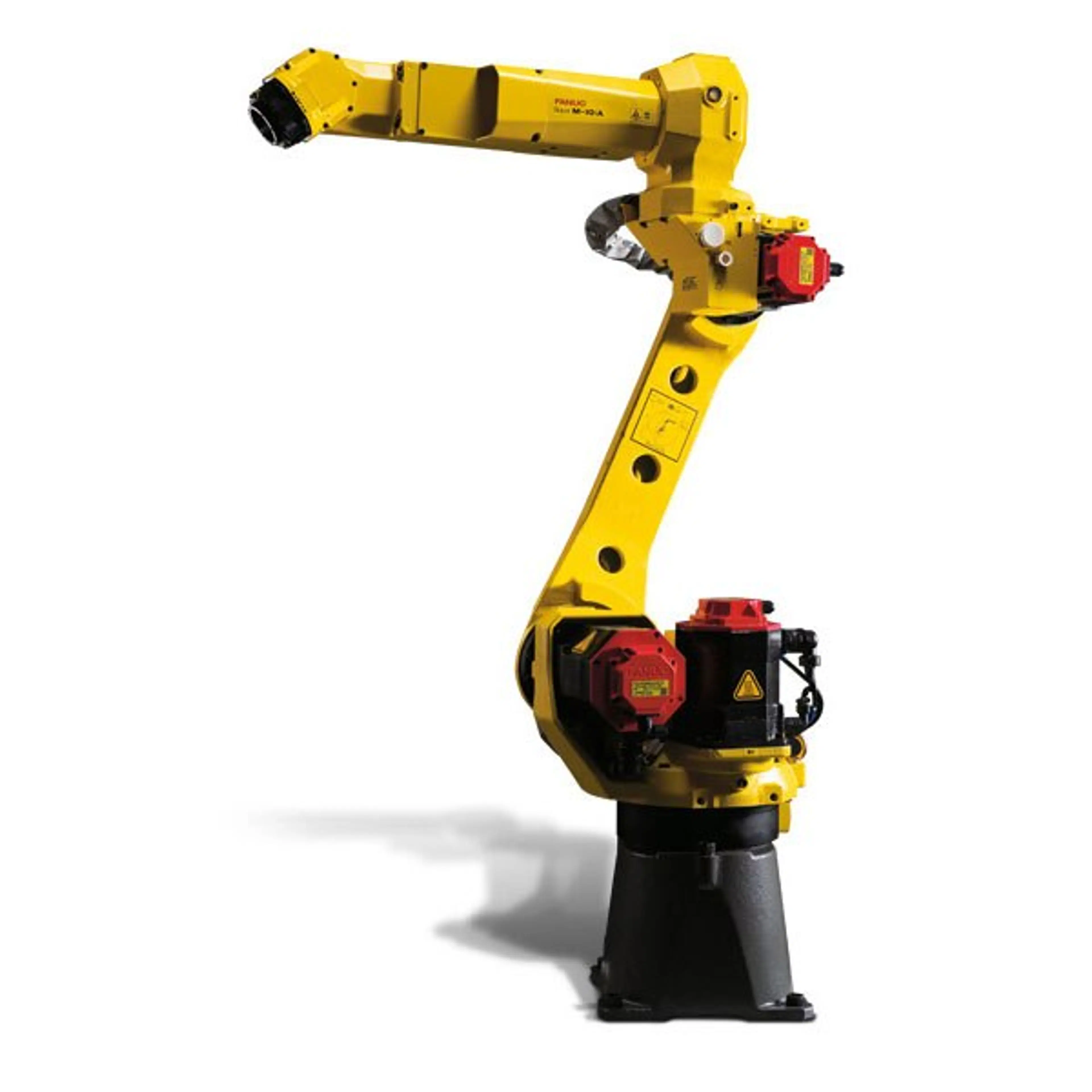

FANUC M-10iA/12
6 Axis, 12 kg Small Payload Robot, 1420 mm reach
The M-10iA Series Robot is a light payload handling robot with a payload range of 7 - 35 kg.
Features:- Two types of wrists are available - a hollow wrist allows for easy cable wiring; a high intertia wrist ideal for handling a large workpiece.
- Short, Standard, and Long arm variances are available.
- A highly rigid arm and advanced servo technology enable increased acceleration performance. This decreases cycle time; leading to higher productivity.
- Lastest intelligent functions with iRVision (Integrated Vision) are force sensor are available.
Technical Specifications
SKU: M-10iA/12
Application
Assembly, Picking/Packaging, Machining/Loading, Material Removal, Dispensing, Part Transfer
Model
M-10iA/12
Manufacturer
FANUC
SKU
M-10iA/12
Reach
1420 mm
Installation
Floor, upside-down, angle
No. of Axis
6
Repeatability
0.08 mm
Payload
12 kg
Weight (kg)
130
Technical Documents
FANUC M 10iA and M 20iA Series Small Payload Handling Intelligent Robots Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
