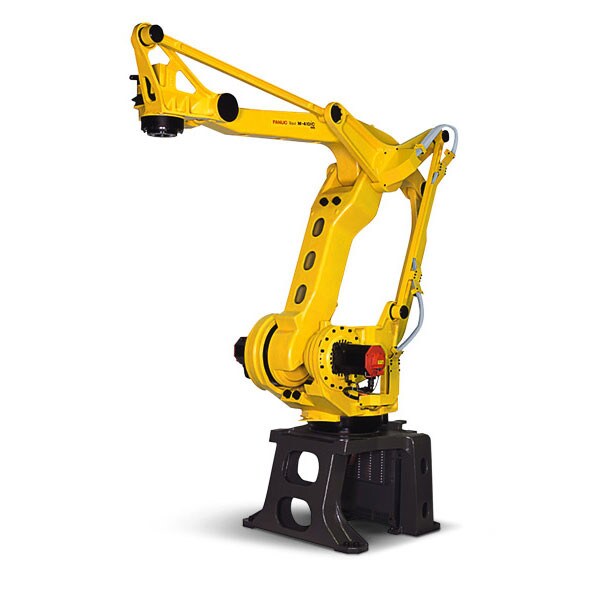

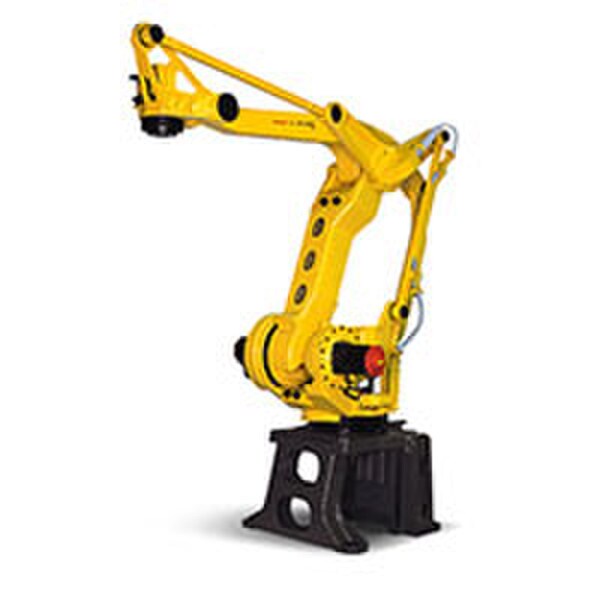

FANUC M-410iC/315 | 4 Axis, 315 kg Palletizing Robot, 3143 mm reach with Controller

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

FANUC M-410iC/315 | 4 Axis, 315 kg Palletizing Robot, 3143 mm reach with Controller

Call for Price
QuantityPrice
FANUC

Details

FANUC M-410iC/315

4 Axis, 315 kg Palletizing Robot, 3143 mm reach with Controller

The FANUC M-410iC Series Robot is the ideal intelligent solution for automation of palletizing systems.

Two models are available to meet the needs of speed and payload, M-410iC/185 and M-410iC/315

Two base variations available for enhanced flexibility.

  • Pedestal base eliminates cabling operation, saves space with R-30iB controller underneath robot.
  • Compact base minimuizes robot height for low ceiling placement or integration into existing systems.

Hollow wrist for reasy wiring to EOAT.

Easy integration of advanced features such as iRVision (Integrated Vision) and simulated programming with R-30iB Controller.

This 4-axis compact palletizing model has been specifically engineered for precision and high-speed handling of payloads up to 315 kg.

Warning: California Proposition 65

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Specifically designed to stack pallets up to a height of two meters.
  • Internally routed cables and hoses make interference a thing of the past and lead to increased gripper reliability.
  • Multiple palletizing positions for increased throughput on palletizing and loading/unloading applications. Pedestal or compact base to minimize maximum hight and save installation space.

Technical Information

Technical Specifications

Technical Specifications

SKU: M-410iC/315
Manufacturer FANUC
Model M-410iC/315
Application Assembly, Palletizing, Dispensing, Pick/Packing, Load/Transfer
Installation Floor, upside-down, wall and angle mount
Axes 4
Payload 315 kg
Type Articulated

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

FANUC M 410iC Series Intelligent Palletizing Robot Brochure (PDF)

We are always wanting to provide more information! In need of a technical document? Let us know!
