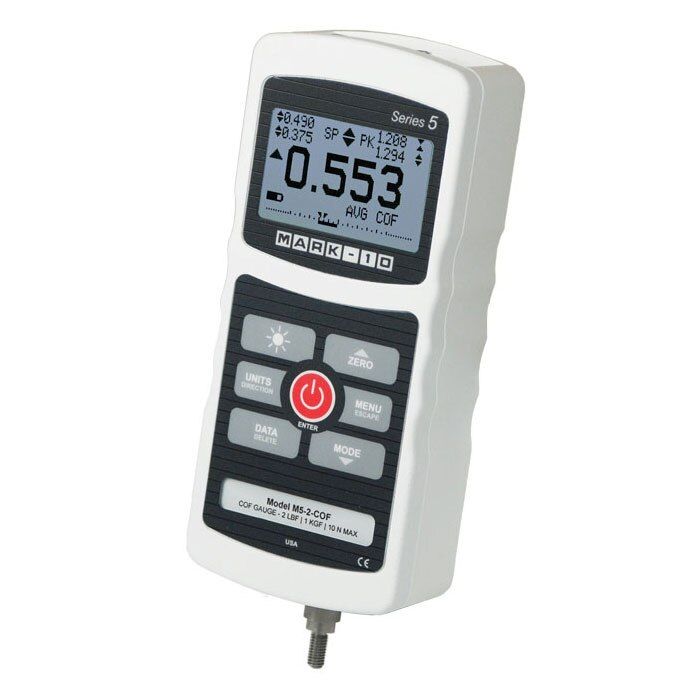

Mark-10 M5-2 | Force gauge, 2 lbF / 32 ozF / 1 kgF / 1000 gF / 10 N

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Mark-10 M5-2 | Force gauge, 2 lbF / 32 ozF / 1 kgF / 1000 gF / 10 N

Rating:
(0)No Reviews yet
$1,187.50
Mark-10

Details

Mark-10 M5-2

Force gauge, 2 lbF / 32 ozF / 1 kgF / 1000 gF / 10 N

Series 5 advanced digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 2,000 lbF (0.5 N to 10 kN). The gauges feature an industry-leading sampling rate of 7,000 Hz, producing accurate results even for quick-action tests. Accuracy is ±0.1% of full scale, and resolution is 1/5000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 1,000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 200% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

The Series 5Â’s averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate. An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 5 force gauges are directly compatible with Mark-10 test stands, grips, and software.

The gauges include MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Series 5 advanced digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Features & Benefits

  • High-speed 7,000 Hz sampling rate
  • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
  • Programmable set points, with alarms and outputs
  • Averaging mode - calculates average readings over time

Technical Information

Technical Specifications

Technical Specifications

SKU: M5-2
Manufacturer Mark-10
Model M5-2
Stock CodeC
Capacity 2 lbF / 32 ozF / 1 kgF / 1000 gF / 10 N
Capacity (lbs) 2
Dimensions 5.88 x 2.53 in
Overload Protection 200% of full scale
Series 5
Type Digital Force Gauge
Weight1 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!
