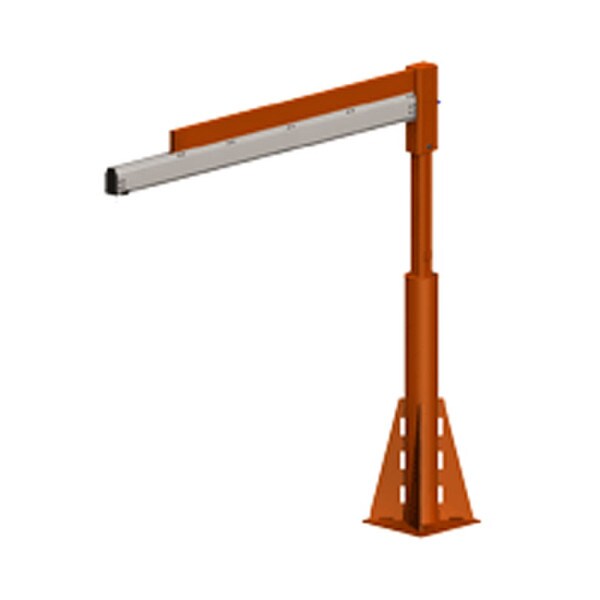

Knight MJBA2600 | Light Duty Low Profile Jib Crane

Technical Specifications
Stock CodeB


Knight Industries MJBA2600

Light Duty Low Profile Jib Crane

  • Jib crane is an alternative solution when ceiling heights are inconvenient for an overhead workstation crane system.
  • Ergonomically designed for low headroom clearance applications. Jib crane includes low friction Knight RAD7510 Aluminum Rail and thrust/roller bearings.
  • Jib lengths available up to 20 ft. [6.10 m].
  • 360° rotation (Continuous 360° rotation requires an optional JSA9137 swivel.)
  • Level adjustment screw used to adjust pitch of the rail.
  • Adjustable hard stop.
  • Hose management system JSA9135 is not included with jib crane.
  • RAD7510 8" Series Rail only
  • MJBA2600 Capacity: Up to ,150 lbs [522 kg]
  • MJBA2300 Capacity: Up to 1,150 lbs [522 kg]
  • Reaches and loads are verified by a Knight Engineering Algorithm.
  • Contact a Knight Representative for specific reach, height, and capacity calculations per application.
  • 3 to 1 safety factor
