MTT01-50 | Cap torque tester, 50 lbFin / 800 ozFin / 58 kgFcm / 570 Ncm / 5.7 Nm

(0)No Reviews yet
$1,803.20
$1932
$128.79999999999995
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Back

Overview

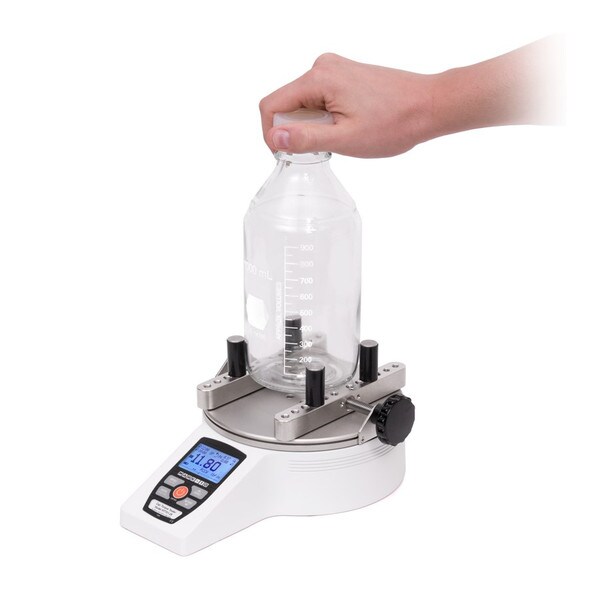

The Mark-10 MTT01-50 Cap Torque Tester is a high-precision instrument designed to measure the application and removal torque of bottle caps up to 50 lbFin (5.7 Nm). With its rugged aluminum design and intuitive operation, the MTT01-50 is ideal for use in both laboratory and production environments.

  • Torque Range: 50 lbFin (5.7 Nm)
  • Accuracy: +/-0.3% of full scale
  • Resolution: 0.01 lbFin (0.001 Nm)
  • Data Memory: 1,000 readings
  • Sampling Rate: 7,000 Hz
Back

Features & Benefits

  • Class-leading accuracy of +/-0.3% ensures reliable and consistent test results.
  • Fast sampling rate of 7,000 Hz captures even quick-action applications.
  • Optional flat and adjustable jaws are available for unique profiles.
  • Adjustable posts effectively grip a broad range of container shapes and sizes.
  • MESUR Lite data acquisition software is included for easy data collection and analysis.
Back

Technical Specifications

Model
MTT01-50
Stat 1
5% Accuracy
Stat 2
5.0 - 50.0 In Lb
Overload Protection
150% of full scale
Type
Bottle Cap Torque Tester
Manufacturer
Mark-10
Warranty
3 Year Warranty
Increments
0.05
SKU
MTT01-50
Stock Code
3
Min Torque (In Lb)
5.0
Max Torque (In Lb)
50.0
Min Torque (Nm)
.57
Max Torque (Nm)
5.70
Weight (lbs)
8.4
Series
TT01
Accuracy
±0.3% of full scale
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Videos & Media

introducing the mark-10 mtt01-50 cap torque tester, the ultimate tool for measuring the application and removal torque of bottle caps. with its rugged aluminum design and intuitive operation, the mtt01-50 is ideal for use in both laboratory and production environments. its class-leading accuracy of 0.3% ensures precise and reliable torque measurements, while the fast sampling rate of 7,000 hz captures even the most dynamic torque events. the adjustable posts effectively grip a broad range of container shapes and sizes, and optional flat and adjustable jaws are available for unique cap profiles. the mtt01-50 also comes with mesurâ„¢ lite data acquisition software, allowing for easy data collection and analysis. with a torque range of 0-50 lbfin (0-5.7newton meters), the mtt01-50 is the perfect choice for quality control in the packaging industry. don't settle for anything less - choose the mark-10 mtt01-50 cap torque tester for accurate, reliable, and versatile torque measurements.

Back

Frequently Asked Questions

What is the MTT01-50's torque range?

The MTT01-50 has a torque range between 5.0 - 50 in lbs.
The MTT01-50 Bottle Cap Torque Tester is ideal for use with a broad range of external transducers to test output of tools for torque verification.
The MTT01-50 accuracy / repeatability is ±0.3% of full scale.
Bottle Cap Torque Testers like the MTT01-50 should be checked and recalibrated every six to twelve months, or 5000 cycles; whichever comes first.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
