Overview

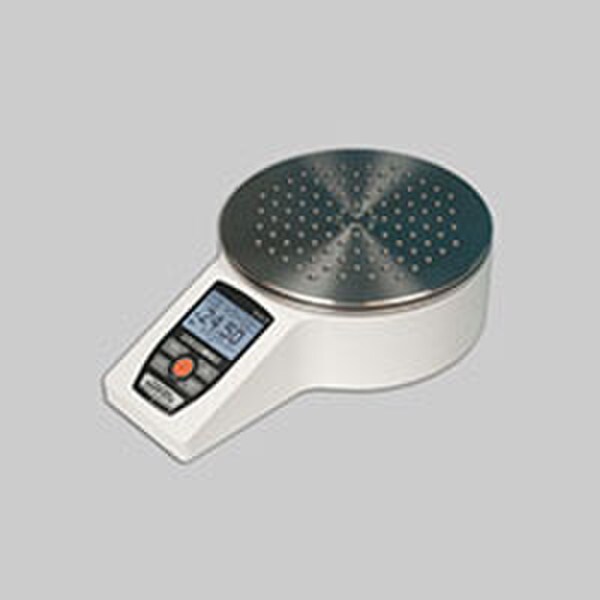

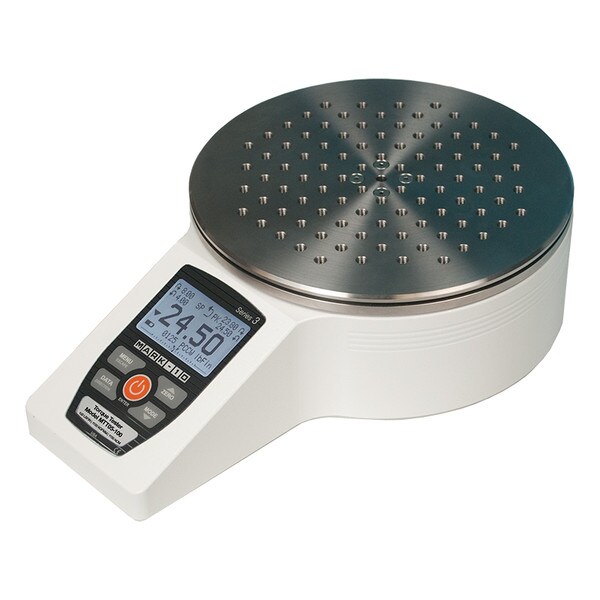

The Mark-10 MTT05-50 Torque Tester is a versatile and accurate tool designed to measure torque up to 50 lbFin (800 ozFin / 58 kgFcm / 570 Ncm / 5.7 Nm). With its rugged design and intuitive operation, this torque tester is ideal for use in both laboratory and production environments.
- Accuracy: +/-0.3% of full scale
- Capacity: 50 lbFin / 800 ozFin / 58 kgFcm / 570 Ncm / 5.7 Nm
- Sampling Rate: 7,000 Hz
- Display: LCD
- Output: USB, RS-232, Mitutoyo, and analog
Features & Benefits
- High Accuracy: The MTT05-50 provides highly accurate torque measurements with an accuracy of +/-0.3% of full scale, ensuring reliable and consistent test results.
- Fast Sampling Rate: The tester features a blazingly fast sampling rate of 7,000 Hz, enabling it to capture even quick-action applications with precision.
- Intuitive Operation: The tester's simple and intuitive operation allows for easy setup and use, minimizing training time and maximizing productivity.
- Versatile Range: The MTT05-50 covers a wide torque range of up to 50 lbFin, making it suitable for various applications.
- Data Acquisition Software: The included MESUR Lite data acquisition software enables tabulation of continuous or single-point data, as well as downloading of stored data for further analysis.
Technical Specifications
Technical Documents
- Mark 10 Series MTT05 Torque Testers Data Sheet (PDF)
- Mark 10 Series MTT05 Torque Testers User Manual (PDF)
- Mark 10 Force and Torque Measurement Product Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
Videos & Media
introducing the mark-10 mtt05-50 torque tester, a versatile and high-precision instrument designed to meet the demands of various applications. engineered by mark-10, this torque tester offers exceptional accuracy and a wide measurement range, making it an indispensable tool for quality control and testing professionals. with an impressive accuracy of 0.3% of full scale, the mtt05-50 ensures reliable and consistent test results, even for the most critical applications. covering a range of up to 50 lbfin [11.5newton meters], this torque tester accommodates a diverse array of testing requirements, from small components to larger assemblies. equipped with a blazingly fast sampling rate of 7,000 hz, the mtt05-50 captures even the most rapid torque events, making it ideal for dynamic testing applications. designed with simplicity in mind, the mtt05-50 features an intuitive user interface, allowing operators of all skill levels to conduct tests efficiently. the tester offers multiple connectivity options, including usb, rs-232, mitutoyo, and analog outputs, enabling integration with various data acquisition systems. elevate your torque testing capabilities with the mark-10 mtt05-50 torque tester. its exceptional accuracy, wide measurement range, and user-friendly operation make it an indispensable tool for quality control and testing professionals across various industries. invest in this advanced torque tester and experience precise and reliable results time after time.
Frequently Asked Questions
What is the MTT05-50's torque range?
What type of application is the MTT05-50 best suited for?
What is the accuracy or repeatability of the MTT05-50?
How often does the MTT05-50 need to be calibrated?
Does the MTT05-50 have a warranty?
