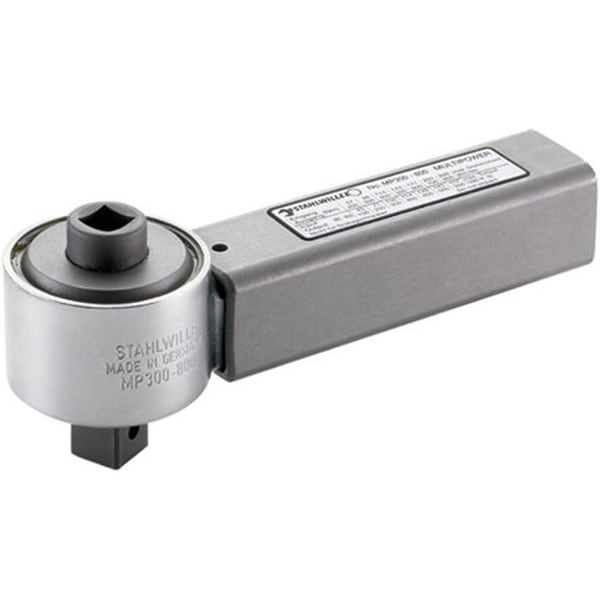

MP300-800 | Torque Multiplier, 800 Nm, 1/2'' in x 3/4'' out
Overview
The Stahlwille MP300-800 torque multiplier features a planetary gear system, it delivers smooth, consistent torque without requiring long lever arms or excessive force. Allowing for safe and accurate operation—even with stubborn or oversized fasteners.
Features & Benefits
- High Torque Output: Delivers up to 800 Nm with ease—no need for oversized levers or extensions.
- Planetary Gear Drive: Enables efficient torque transfer with steady motion and reduced operator fatigue.
- Precision Engineering: Designed for consistent, accurate torque application over time.
- Planetary Gear Drive: Enables efficient torque transfer with steady motion and reduced operator fatigue.
- Heavy-Duty Construction: Made to withstand high load cycles and harsh working environments.
Technical Specifications
Manufacturer
Stahlwille
SKU
53030800
Model
MP300-800
Type
Torque Multiplier
Size
800
Max Torque Output (Nm)
800
Max Torque Input (Nm)
229
Max Torque Input (Ft lb)
169
Gear Ratio
4 : 1
Torque Ratio
1 : 3.5
Input Drive
1/2'' Square
Output Drive
3/4'' Square
Length (mm)
215
Weight (g)
2000
Weight (lbs)
4.41
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What does a torque multiplier do?
Is the MP300-800 compatible with standard torque wrenches?
Yes. While optimized for Stahlwille torque wrenches, the MP300-800 can be used with other quality torque tools via appropriate adapters.
