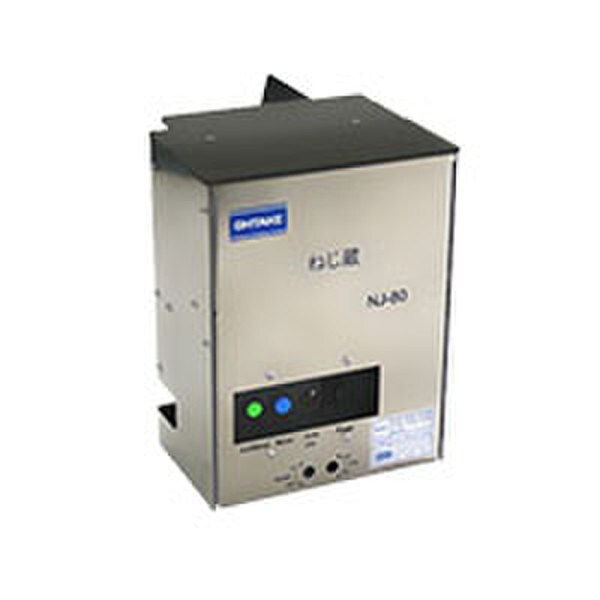

NJ-80 | 2mm - 6mm x 15mm Automatic Screw Hopper for NJ series feeders, 800cc
Overview
Introducing the Ohtake NJ-80 Automatic Screw Hopper, an essential component for optimizing your assembly production. This screw hopper is specifically designed for use with NJ series feeders and offers a range of features to enhance your assembly efficiency.
- Screw Size Range: 2mm - 6mm x 15mm
- Capacity: 800cc
- Compatibility: NJ series feeders
- Manufacturer: Ohtake
Features & Benefits
- Screw Size Compatibility: The NJ-80 Automatic Screw Hopper can accommodate screws ranging from 2mm to 6mm in diameter and up to 15mm in length, providing versatility for various assembly applications.
- Large Capacity: With a generous capacity of 800cc, this screw hopper ensures a continuous supply of screws, reducing the need for frequent refilling and minimizing downtime.
- Easy Installation: Designed for user convenience, the NJ-80 Automatic Screw Hopper can be easily installed and integrated into your existing assembly line, minimizing disruption to your workflow.
- Improved Production Efficiency: By automating the screw feeding process, the NJ-80 Screw Hopper significantly improves production efficiency, allowing you to meet your assembly targets faster and more accurately.
Technical Specifications
Type
Hopper
Screw Size - mm
M2 - M6
Max Screw Length - mm
15
Capacity - cc
800
Dimensions - mm
142 x 191 x 188
Power Supply
AC100V DC12V AC
Weight - kg
2.9
Technical Documents
Ohtake Screw Presenters Catalog (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
