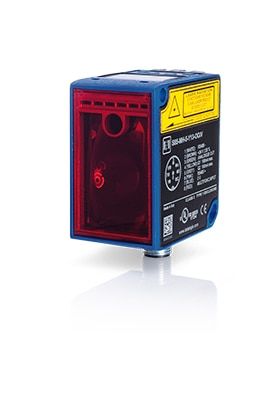

Datalogic S85-MH-5-Y13-OOIVY / 951511020

Proximity 20M - Analogue/Rs485 - Whith Display - M12 8P

The S85 series is Datalogic?Æs innovative line of LASER distance sensors based on Time of Flight technology.

The S85 series can perform high-precision and long distance measurement without the use of a prismatic reflector, as well as background and foreground suppression functions.

The Class 2 highly-focused LASER and the innovative integrated software make the S85 series ideal for applications that require extremely precise measurement, offering 7 mm of accuracy for distances up to 20 m, with 1 mm of resolution and 1 mm of repeatability.

The basic model (S85-MH-5-Y03-...) measures distances up to 10 m and can be simply set through user-friendly push-buttons. The basic model features an M12 5-pole standard connector with analog and digital outputs that provide distance and the object detection.

The advanced model (S85-MH-5-Y13-...) measures distances up to 20 m and is easily programmable through a keyboard and display. In addition to the analog and digital outputs, the S85 advanced model is equipped with an RS485 serial interface.

This series is designed in a sturdy metal housing, and can be easily mounted on industrial vehicles and machinery with its dedicated mounting bracket.

Features:
  • Time of Flight technology
  • Class 2, visible red LASER for an easy alignment with the target
  • Distance measurement ranging from 10m or 20m in the advanced model
  • 1 mm resolution, 7 mm accuracy, 1 mm repeatability
  • 4-20 mA or 0-10 V scalable analog output and 2 digital outputs
  • RS485 serial interface in the advanced model
  • Standard M12 connector
  • IP67 industrial metal housing
Applications:
  • Automated warehousing
  • Processing and Packaging machinery
  • Industrial vehicles
  • Automotive

The S85 series is Datalogic’s innovative line of LASER distance sensors based on Time of Flight technology.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Technical Information

Technical Specifications

Technical Specifications

SKU: 951511020-datalogic
Manufacturer Datalogic
Model S85-MH-5-Y13-OOIVY
Communication M12 8-pole connector
Connection M12 8-pin Connector
Dimensions 62 x 72 x 37 mm
Material Zamak
Optic Function Distance
Series S85
Type Distance Sensor
