957201230 | SE4-Q4-120-PP-W | SE4 safety light curtain type 4 4 beams h=1200mm muting 25m

Datalogic SE4-Q4-120-PP-W / 957201230

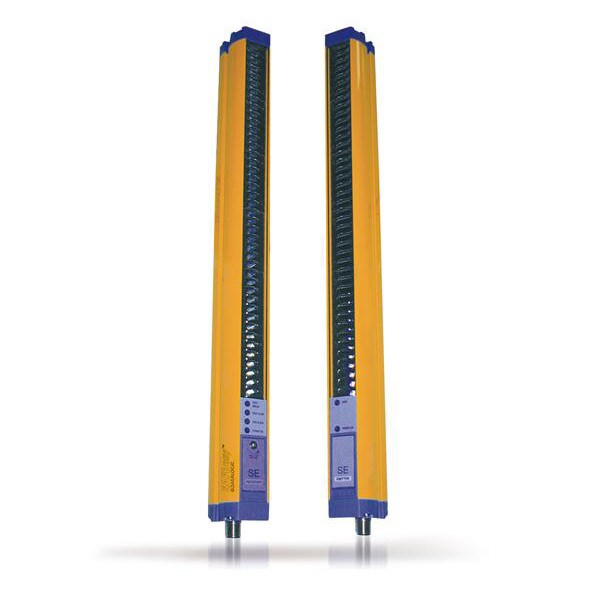

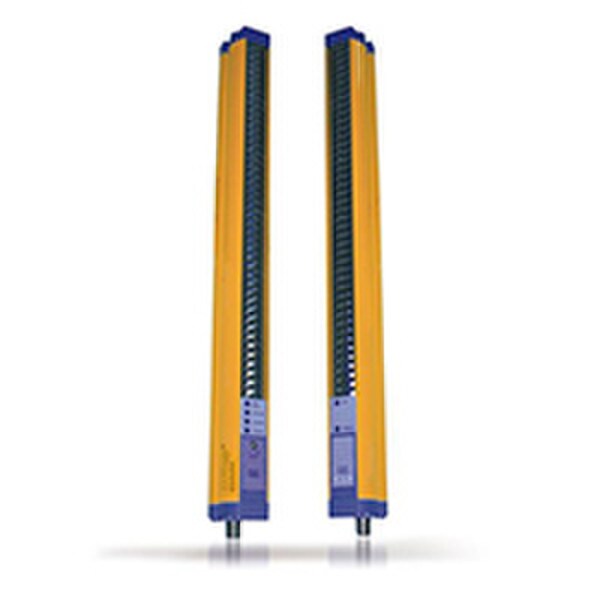

SE4 safety light curtain type 4 4 beams h=1200mm muting 25m

The SAFEasy™ light curtains, according to the IEC 61496-1 e IEC 61496-2 standards, are suitable for detecting the human body when approaching dangerous areas. Models with different standard heights (500, 800, 900, 1200 mm), with 2, 3, 4 beams and operating distance reaching 50 m are available.

Specific dip-switches, that can be reached through a slot present on the front of the receiver protected by a lid and opened with a simple screwdriver, guarantee rapid and safe device setting. The operator is thus able to configure, according to the specific needs, the manual or automatic Restart, as well the Muting and partial Muting functions. The emitter-receiver units are optically synchronised and contain all the control circuits, inputs and outputs inside the housing.

• Integrated light curtains for BODY PROTECTION
• Versions with 2 / 3 / 4 beams
• Special slot for device setting
• 35 x 40 mm compact profile

• Automatic machines
• Packaging machines, handling machines, storing machines
• Wood working machines, glass working machines, ceramics working machines, etc.
• Automatic and semi-automatic assembly lines
• Automatic warehouses
• Presses, punching machines, benders and cutters
