957801010 | SG2-30-030-OO-X | SG2 BASE safety light curtain type 2 res=30mm h=300mm autorestart

(0)No Reviews yet
$445.37
$759.00
(Save $313.63)
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

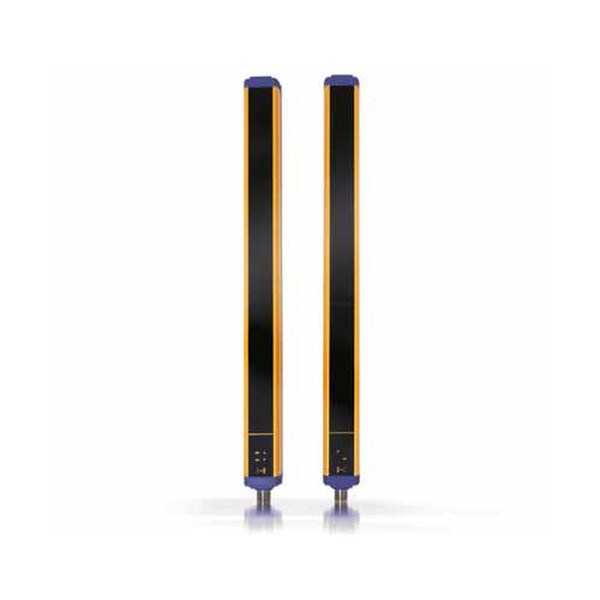

Datalogic SG2-30-030-OO-X / 957801010

SG2 BASE safety light curtain type 2 res=30mm h=300mm autorestart

SG BASE safety light curtains are a simple, reliable and cost effective solution for applications where the use of Type 2 safety sensors with hand or arm resolution, and automatic restart, is required.

Features:
  • 19 m operating distance: for applications with wide areas to monitor or deviating mirrors
  • Reduced response times (from 8 to 24 ms): installation close to dangerous areas, reducing the overall machine dimensions
  • Rotating brackets: installation in small spaces and easy optical alignment in difficult conditions
  • SG-IP69K protection for applications where cleaning with detergents or hot water at high pressure is required
Applications:
  • Automatic machines
  • Machines for packaging, material handling, storing
  • Weaving machines, wood working machines, ceramic working machines
  • Automatic and semi-automatic assembly lines
  • Automatic warehouses
Back

Technical Specifications

SKU: 957801010-datalogic
Nominal Sensing Distance
0.2 to 19 m
Resolution
30mm
Controlled Height
300 mm
Number of Rays
16
Sensitivity Adjustment
n/a
Effective Aperture Angle
5°
Function Principle
Emitter + Receiver
Available Functions
Automatic Restart
Description
Compact standard
Functions
Hand protection res. 30 mm
Safety Type
Type 2 safety light curtain (A)
SIL
1
SILCL
1
Performance Level (PL)
c
PFHd
1.04E-08
Dcavg
97.50%
MTTFd
273 years
SFF
98.40%
Output Type
2 x PNP-NO (OSSD safety output)
Response Time
9.4 ms
Operating Voltage
24 Vdc 20%
Load Current
500mA each output
Emission
Infrared LED (850 nm wavelength)
Interference to External Light
According to IEC 61496-2
Power Consumption Receiver
3W (no load)
Power Consumption Emitter
2W
Capacitive Load
‰¥ 2.2µF
Cable Length (Power Supply/Output)
50m
Dimensions
32.3 x 36.9 x 383.2 mm
Connections
M12-4 poles (emitter) M12-5 poles (receiver)
Storage Temperature
-25 to +70°C
Material
Painted aluminum / PMMA / PC MAKROLON
Vibrations
Width 0.35 mm, frequency 10 to 55Hz
Shocks
16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)
Approvals
CE, cULus, TÃœV
EMC Compatibility
According to 2014/30/EU Directive
Supplied Accessories
Standard ""L"" Mounting Brackets: 4 pcs kit
Operating Temperature
-10 to +55°C
Humidity
15 to 95 % (no condensation)
Mechanical Protection
IP65
