957851290 | SG4-B3-080-OO-E | SG BODY BIG BASE safety multiple beam type 4 3 beams h=800mm edm man/auto

(0)No Reviews yet
$1,130.79
$1,256.00
(Save $125.213)
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

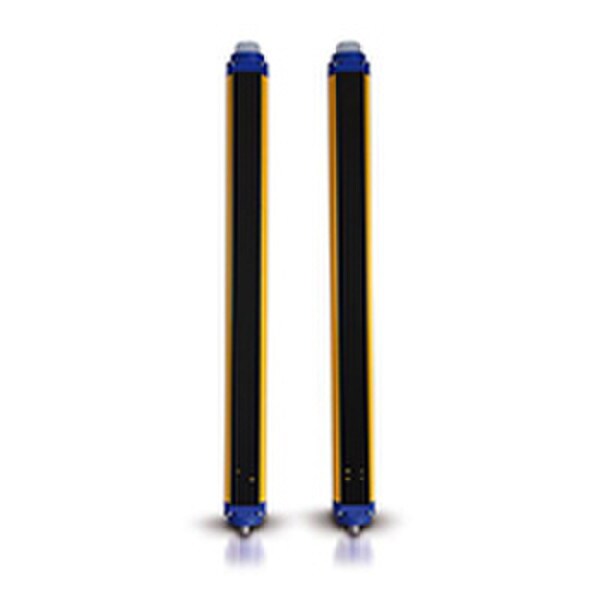

Datalogic SG4-B3-080-OO-E / 957851290

SG BODY BIG BASE safety multiple beam type 4 3 beams h=800mm edm man/auto

SG BODY BIG (BASE and MUTING) safety light curtains, with sturdy housing and an innovative optical-electronic platform, ensures the high-level performance required in the material handling industry

SG BODY BIG BASE, with manual or automatic reset, EDM function and operating distance up to 60 m, is ideal to protect perimeters and openings in harsh environment, where a robust housing and high emission power is needed.

SG BODY BIG MUTING integrates T and L muting functions with all the advanced features, like anti-interference coding, edged or triggered override, and external muting enable signal.

Features:
  • Big sturdy profile: 52x56 mm (2.08x2.24 in)
  • 3 different types of mounting brackets (angled, top-bottom and rear)
  • Simple and fast mounting, cabling and configuration
  • User interface: 4 or 2 LEDs + 7 segment display
  • Operating distance up to 60 m
  • 2, 3, 4 beams with 500, 800, 900 and 1200mm controlled
  • Integrated T muting (bidirectional) and L muting (monodirectional) functions, integrated muting lamp (only SG BODY BIG MUTING)
  • Optional pre-assembled and pre-cabled retroreflective polarized or through-beam sensors (only SG BODY BIG MUTING)
  • Advanced features: anti-interference coding, edged or triggered override, external muting enable signal
  • LONG RANGE model with 40mm resolution for hand protection over long distance (60 m)
Applications:
  • Automatic machines
  • Robots
  • Automatic assembling lines
  • Palletizers and Depalletizers
  • Automatic warehouses
  • Protecting perimeter areas
Back

Technical Specifications

SKU: 957851290-datalogic
Sensing Distance
6 - 60 m
Resolution
400 mm
Controlled Height
800 mm
Number of Beams":3,"Sensitivity Adjustment
n/a
Effective Aperture Angle
2.5°
Principle
Emitter + Receiver
Available Functions
Manual/Automatic Restart, EDM
Description
Big for harsh environment
Functions
Body protection 3 beams
Safety Type
Type 4 safety light curtain (A/M)
SIL
3
SILCL
3
Performance Level (PL)
e
PFHd
1.10E-08
DCavg
96.40%
MTTFd
353 years
SFF
97.90%
Output Type
2 x PNP-NO (OSSD safety output) with EDM
Response Time
13 ms
Operating Voltage
24 Vdc 20%
Load Current
500mA each output
Emission Type
Infrared LED (950 nm wavelength)
External Light Immunity
According to IEC 61496-2
Power Consumption (Receiver)
4W (no load)
Power Consumption (Emitter)
2.5W
Capacitive Load
‰¥ 2.2µF
Max Cable Length
70m
Dimensions
52 x 56.9 x 906.35 mm
Connection
M12-5 poles pig-tail (emitter) M12-8 poles pig-tail (receiver)
Storage Temperature
-25 to +70°C
Housing Material
Painted aluminum / PMMA / PBT Valox 508
Vibration Resistance
Width 0.35 mm, frequency 10 to 55Hz
Shock Resistance
16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)
Approvals
CE, cULus, TÃœV
EMC Compatibility
According to 2014/30/EU Directive
Operating Temperature
0 to +55°C
Operating Humidity
15 to 95 % (no condensation)
IP Rating
IP65
