957951030 | SG4-RB2-050-OO-W | SG BODY REFLECTOR MUTING safety multiple beam type 4 2 beams h=500mm edm man/auto muting active side

(0)No Reviews yet
$744.38
$827.00
(Save $82.619)
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Datalogic SG4-RB2-050-OO-W / 957951030

SG BODY REFLECTOR MUTING safety multiple beam type 4 2 beams h=500mm edm man/auto muting active side

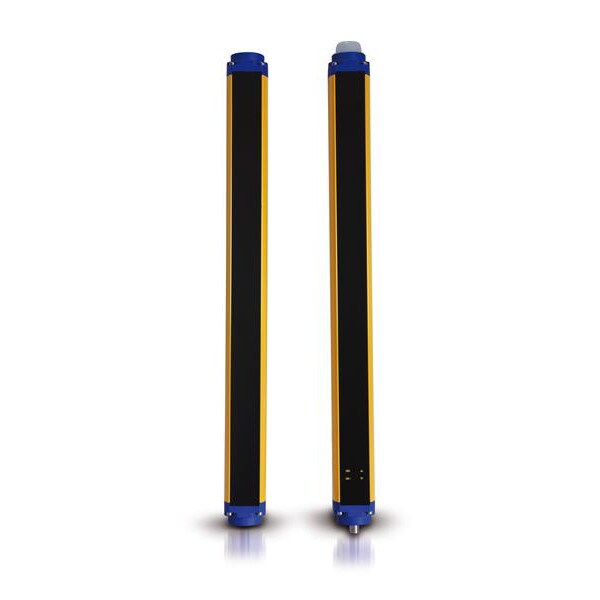

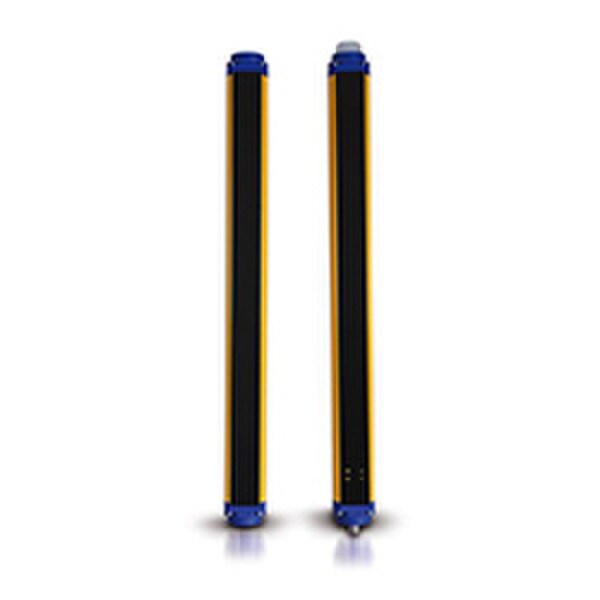

SG BODY REFLECTOR (BASE and MUTING) are body protection Type 4 safety light curtains consisting of one active and one passive part, thus reducing installation, wiring time and costs.

The sturdy housing and the optical-electronic characteristics, similar to SG BODY BIG, guarantee their reliability in harsh environments and alignment stability.

SG BODY REFLECTOR MUTING can also have T and L muting sensors, and all advanced features related to muting, like anti-interference coding, edged or triggered override, and external muting enable signal.

Features:
  • 2, 3, 4 beams with 500, 800, 900 and 1200mm controlled heights
  • One active part (emitter and receiver) and one passive part (mirrors)
  • Big sturdy profile: 52 x 56 mm (2.08 x 2.24 in)
  • 3 different types of mounting brackets (swivelling side for "thin mounting", top-bottom and rear)
  • User interface: 4 or 2 LEDs + 7 segment display
  • Operating distance up to 8 m
  • Integrated T muting (bidirectional) and L muting (monodirectional) functions, integrated muting lamp (only SG BODY REFLECTOR MUTING)
  • Models with pre-assembled and pre-cabled retroreflective polarized muting sensors (only SG BODY REFLECTOR MUTING)
  • Advanced features: Anti-interference coding, edged or triggered override, external muting enable signal
Applications:
  • Automatic machines
  • Robots
  • Automatic assembling lines
  • Palletizers and Depalletizers
Back

Technical Specifications

SKU: 957951030-datalogic
Nominal Sensing Distance
0.5 to 8 m
Resolution
500mm
Controlled Height
500 mm
Number of Beams
2
Sensitivity Adjustment
Dip-switch
Effective Aperture Angle
2.5°
Principle of Operation
Transceiver (Active side)
Available Functions
Manual/Automatic Restart, EDM, L/T Muting, Override, Muting Enable, Muting Filter
Description
Big RRX active unit
Functions
Body protection 2 beams muting
Safety Type
Type 4 safety light curtain (A/M)
SIL
3
SILCL
3
Performance Level (PL)
e
PFHd
8.57E-09
MTTFd
439 years
SFF
97.50%
Output Type
2 x PNP-NO (OSSD safety output) with EDM
Response Time
11 ms
Operating Voltage
24 Vdc 20%
Load Current
500mA each output
Light Source
Infrared LED (950 nm wavelength)
External Light Immunity
According to IEC 61496-2
Power Consumption (Active Unit)
6.5W (no load)
Max Cable Length
70m
Dimensions
52x56.9x609.35 mm
Connection
M12-12 poles + M12-5 poles (Active Unit)
Storage Temperature
-25 to +70°C
Housing Material
Painted aluminum / PMMA / PBT Valox 508
Vibration Resistance
Width 0.35 mm, frequency 10 to 55Hz
Shock Resistance
16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)
EMC Compatibility
According to 2014/30/EU Directive
Operating Temperature
0 to +55°C
Operating Humidity
15 to 95 % (no condensation)
IP Rating
IP65
