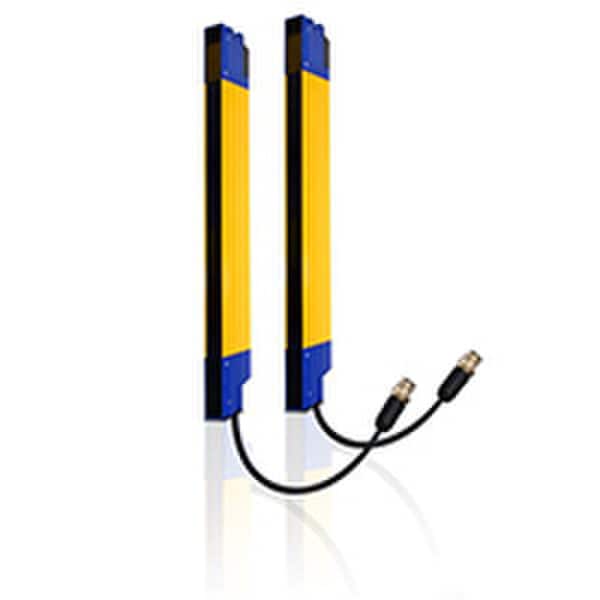

957910730 | SL4-34-0360-E | SLIM safety light curtain type 4 res=34mm h=360mm edm man/auto

(0)No Reviews yet
$1,469.57
$1,632.00
(Save $162.426)
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Datalogic SL4-34-0360-E / 957910730

SLIM safety light curtain type 4 res=34mm h=360mm edm man/auto

SLIM safety light curtain is the perfect solution to protect machines where space saving and simplicity of use are the main requirements. The large choice of available lengths and resolutions, and the three different type of brackets make its mechanical installation higly versatile.Up to three units can be connected to protect the sides of a single dangerous area without losing resolution in the corners.The configuration of basic functions (automatic or manual restart and external device monitoring) is done by wiring, making its use and maintenance easy and fast.

Features:
  • SLIM profile: 15 x 32 mm
  • 34 different protection lengths (from 150 to 1200 mm) with up to 30 mm modularity
  • Pigtail cable with 5-poles connectors
  • No Dead Zone
  • 14, 24 and 34 mm resolutions
  • Three different brackets shapes availables
  • Cascadability up to three units
  • Auto/Manual restart and EDM function configuration by wiring
  • LED display messages diagnosis
Applications:
  • Food & Beverage, Processing and Packaging
  • Electronics and mechanics assembly machinery
  • Quality inspection
  • Material Handling
Back

Technical Specifications

SKU: 957910730-datalogic
Nominal Sensing Distance
0.2 to 6 m
Resolution
34 mm
Protected Height
360 mm
Number of Beams
13
Sensitivity Adjustment
n/a
Effective Aperture Angle
2.5°
Principle
Emitter + Receiver
Available Functions
Manual/Automatic Restart, EDM
Description
SLIM no-dead-zone cascadable
Functions
Hand protection res. 34 mm
Safety Type
Type 4 safety light curtain (A/M)
SIL
3
SILCL
3
Performance Level (PL)
e
PFHd
1.04E-08
MTTFd
444 years
Output Type
2 x PNP-NO (OSSD safety output) with EDM
Response Time
8.6 ms
Response Time (Master + Slave)
18 ms
Response Time (Master + 2 Slave)
20 ms
Operating Voltage
24 Vdc 20%
Load Current
500mA each output
Emission
Infrared LED (850 nm wavelength)
Interference to External Light
According to IEC 61496-2
Power Consumption (Receiver)
4.2W (no load)
Power Consumption (Emitter)
1.6W
Cable Length (Power Supply/Output)
20m
Cable Length (Master-Slave Interconnections)
1m (Master-Slave Cable)
Dimensions
15.4 x 32.6 x 360 mm
Connections
M12 5-pole pigtail (emitter and receiver)
Storage Temperature
-25°C to +70°C
Material
Metal - Aluminium / PMMA / Painted Zamak
Vibration Resistance
Width 0.35 mm, frequency 10 to 55Hz
Shock Resistance
10 G for 16 ms, 1,000 shocks per axis (EN 60068-2-29)
EMC Compatibility
According to 2014/30/EU Directive
Supplied Accessories
C-shaped Brackets (2 pcs kit), O-shaped Brackets (4 pcs kit)
Operating Temperature
-10°C to +55°C
Operating Humidity
15% to 95% (no condensation)
IP Rating
IP65
