Overview

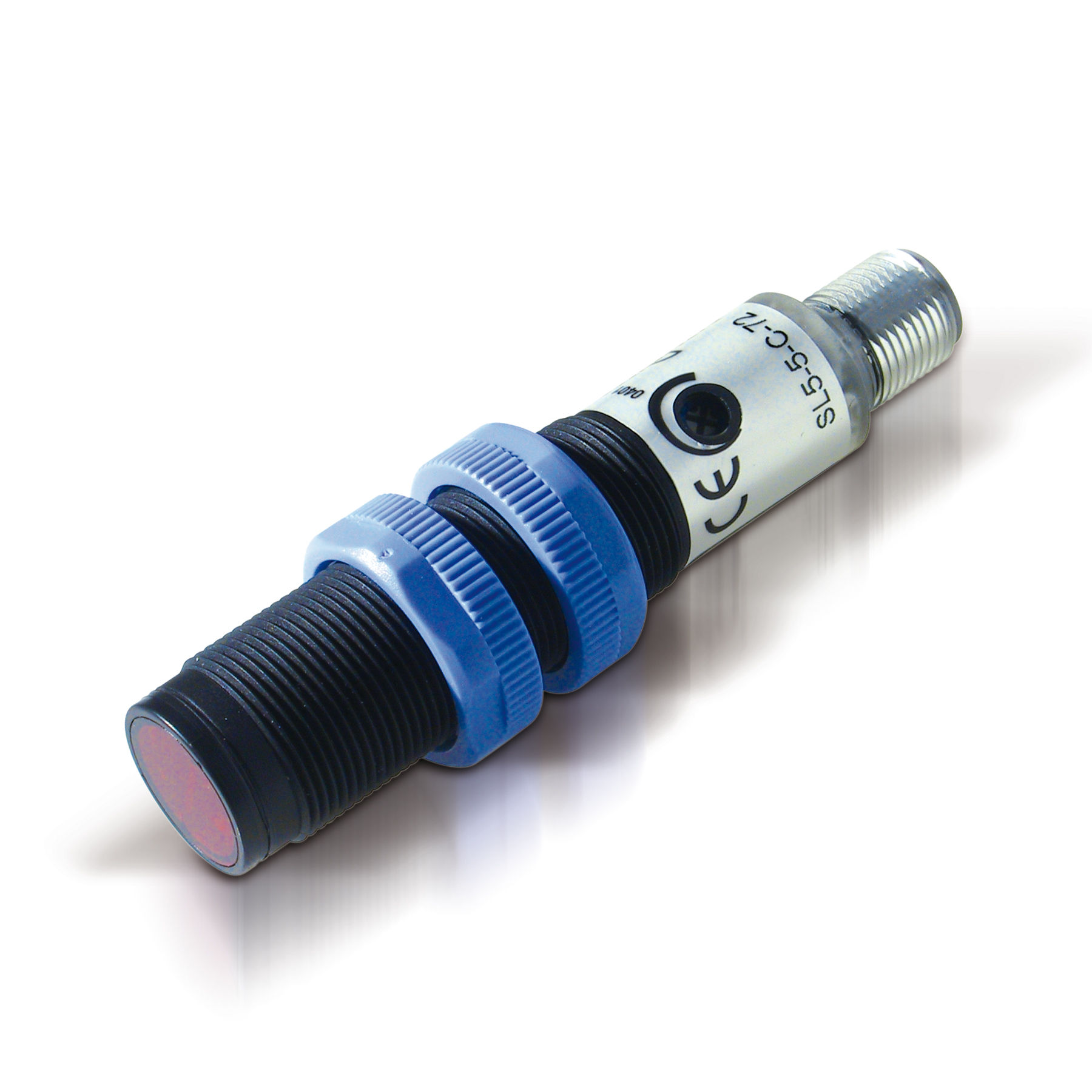

Datalogic SL5-5-C-92 / 952501000

Sl5 Tubular Photoelectric Sensor, Proximity Pnp Dark - M12

The tubular SL5 photoelectric sensors offer through beam, proximity and retroreflex polarized optic functions with red laser emission, 2m cable or M12 4-pole connection in plastic housing, guaranteeing high detection repeatability.

Features:
  • Laser emission: high detection repeatability for a precise reading
  • Visible emission: easy and fast installation
  • Trimmer adjustment: application adaptability
Applications:
  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Ceramics working machines
  • Automatic warehouses
Back

Technical Specifications

SKU: 952501000-datalogic
Sensing Distance
350mm
Sensitivity Adjustment
Trimmer
Sensing Mode
Diffuse beam
Description
Tubular M18 - axial optic
Output Type
PNP Light-ON
Output Function
Light-ON
Response Time
0.33 ms
Supply Voltage
10-30 VDC
Load Current
100mA
Short-Circuit Protection
Yes
Reverse Polarity Protection
Yes
Emission
Red Laser (650nm), Class 1
External Light Immunity
According to EN 60947-5-2:2020
Impulsive Overvoltage Protection
Yes
Insulation Resistance
>20 MΩ @ 500 VDC, between electronics and housing
Dielectric Strength
500 VAC for 1 min, between electronics and housing
Dimensions
Ø18 x 66 mm
Housing Material
Plastic ABS / PMMA
Connection
M12 plug
Lens Material
PMMA
Housing Style
M18
Approvals
CE, cULus
Vibration Resistance
0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6)
Operating Temperature
-10°C to +55°C
IP Rating
IP67
