Overview

Datalogic SL5-5-G-82 / 952501030

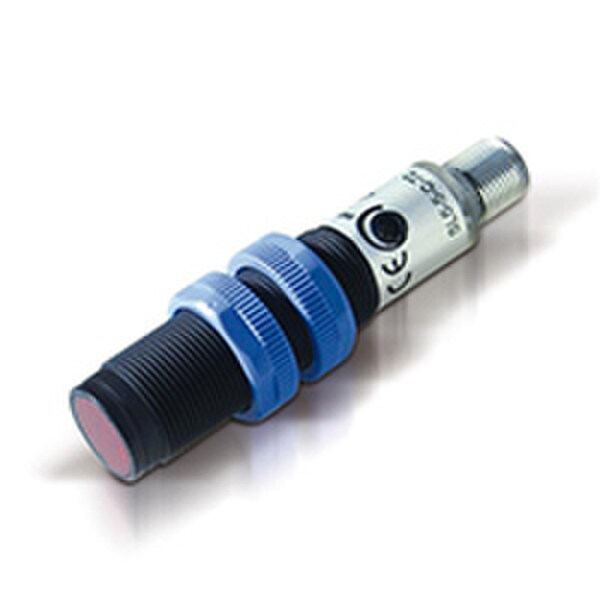

Sl5 Tubular Photoelectric Sensor, Emitter Pnp Light - M12

The tubular SL5 photoelectric sensors offer through beam, proximity and retroreflex polarized optic functions with red laser emission, 2m cable or M12 4-pole connection in plastic housing, guaranteeing high detection repeatability.

Features:
  • Laser emission: high detection repeatability for a precise reading
  • Visible emission: easy and fast installation
  • Trimmer adjustment: application adaptability
Applications:
  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Ceramics working machines
  • Automatic warehouses
Back

Technical Specifications

SKU: 952501030-datalogic
Sensing Distance
60m
Sensitivity Adjustment
n/a
Sensing Principle
Through beam emitter
Description
Tubular M18 - axial optic
Functions
Through beam emitter
Output Type
n/a
Response Time
0,33
Operating Voltage
10 to 30VDC
Short-Circuit Protection
Yes
Reverse Polarity Protection
Yes
Emission
LASER Red (650nm) class1
External Light Immunity
according to EN 60947-5-2 : 2020
Impulsive Overvoltage Protection
Yes
Insulation Resistance
>20 MΩ 500 Vdc, between electronics and housing
Dielectric Strength
500 Vac 1 min., between electronics and housing
Housing Material
Plastic ABS / PMMA
Connection
M12 plug
Lens Material
PMMA
Diameter
M18
Approvals
CE cULus
Shock and Vibration Resistance
0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6)
Operating Temperature
- 10°C to + 55°C
IP Rating
IP67
