Overview

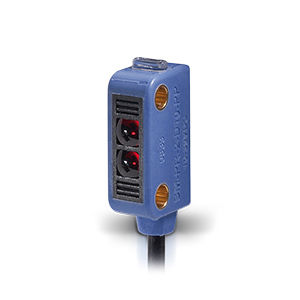

Datalogic SM3-PR-2-B00-PD / 95B000340

Sm Mini Square Photoelectric Sensor, Reflex Polarized Plastic Radial Pnp Dark - 2 Mt Cable

The subminiature SMall series is a photoelectric sensor basic line offering through beam, retroreflex polarized and accurate fixed focus proximity models able to guarantee very precise detection, with red LED emission to simplify installation procedures, suitable for applications with reduced spaces.

Features:
  • CGood reading performance: high detection repeatability especially for the fixed focus models
  • Basic line: suitable for the main industrial applications
  • Miniature housing: suitable for applications with reduced space
Applications:
  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Automatic warehouses
Back

Technical Specifications

SKU: 95B000340-datalogic
Nominal Sensing Distance
500mm
Sensitivity Adjustment
n/a
Sensing Principle
Polarized retroreflective
Description
Subminiature slim case
Optic Position
Radial 90°
Output Type
PNP
Output Function
Dark-On (Don)
Switching Frequency
590Hz
Response Time
1ms
Operating Voltage
10 to 30VDC
No-Load Supply Current
20mA
Load Current
50mA
LED Indicators
Yellow (output status)
Short-Circuit Protection
Yes
Reverse Polarity Protection
Yes
Emission
LED Red (640nm)
External Light Immunity
according to EN 60947-5-2 : 2020
Impulsive Overvoltage Protection
Yes
Insulation Resistance
>20 MΩ 500 Vdc, between electronics and housing
Dielectric Strength
500 Vac 1 min., between electronics and housing
Dimensions (mm)
9x26x15
Housing Material
Plastic ABS / PMMA
Connection
2m cable
Lens Material
PMMA
Storage Temperature
-35°C to +75°C
Housing Style
Cubic
Approvals
CE cULus
Shock and Vibration Resistance
0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6)
Operating Temperature
-20°C to +55°C
Mechanical Protection
IP67
