Saginaw SCE-806FG | Fiberglass Enclosure, 9.5 x 7.5 x 4.75

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Saginaw SCE-806FG | Fiberglass Enclosure, 9.5 x 7.5 x 4.75

Rating:
(0)No Reviews yet
$108.19
Saginaw

Details

Saginaw Control and Engineering SCE-806FG

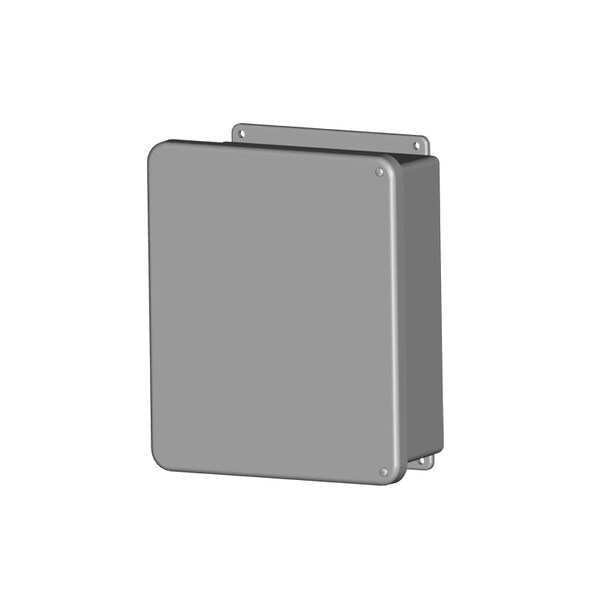

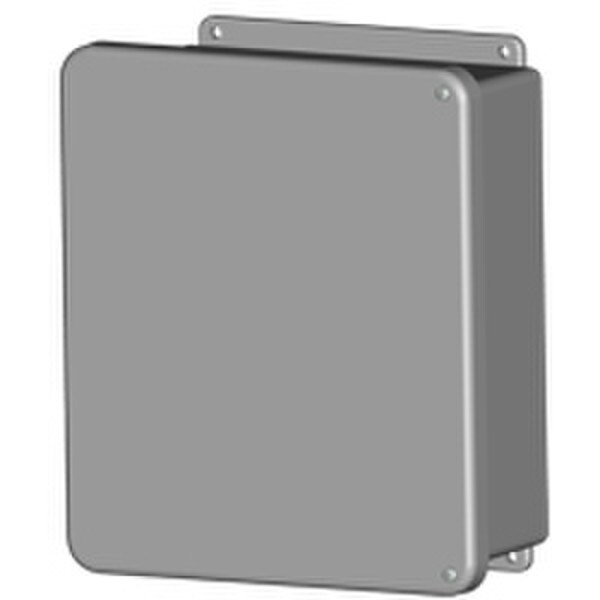

Fiberglass Enclosure (Hinged Screw Cover), 9.5 X 7.5 X 4.75

Designed for indoor or outdoor use to house electronic controls, instruments and components in areas that may be regularly hosed down, are in very wet conditions, or are exposed to corrosive agent. Provides protection from dust, dirt, oil, and water.


Construction -

  • Fiberglass reinforced compression molded polyester.
  • Continuous memory retaining gasket.
  • Mounting strips molded in.
  • Captive screw fasteners.
  • Integral panel mounting inserts.
  • Stainless steel continuous hinge.

  • Finish -

    Light gray fiberglass. Optional panels are marine grade aluminum.


    Industry Standards - (IS5)

    NEMA Type 4, 4X, 12 and Type 13
    UL Listed Type 4, 4X and 12
    CSA Type 4, 4X and 12
    IEC 60529 IP 66

    Get your tool under our Flex Warranty!

    We will fix it or replace it.

    FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

    *Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

    Technical Information

    Technical Specifications

    Technical Specifications

    SKU: SCE-806FG
    Manufacturer Saginaw
    Model SCE-806FG
    Stock CodeB
    Dimensions 9.5 x 7.5 x 4.75 in.
    Weight4 lbs
