Saginaw SCE-936B | Console, 48 x 36 x 18

$1,753.19
Saginaw

Details

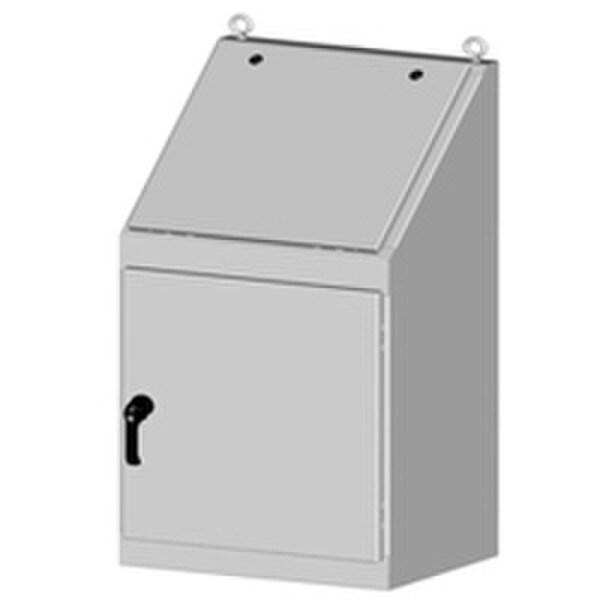

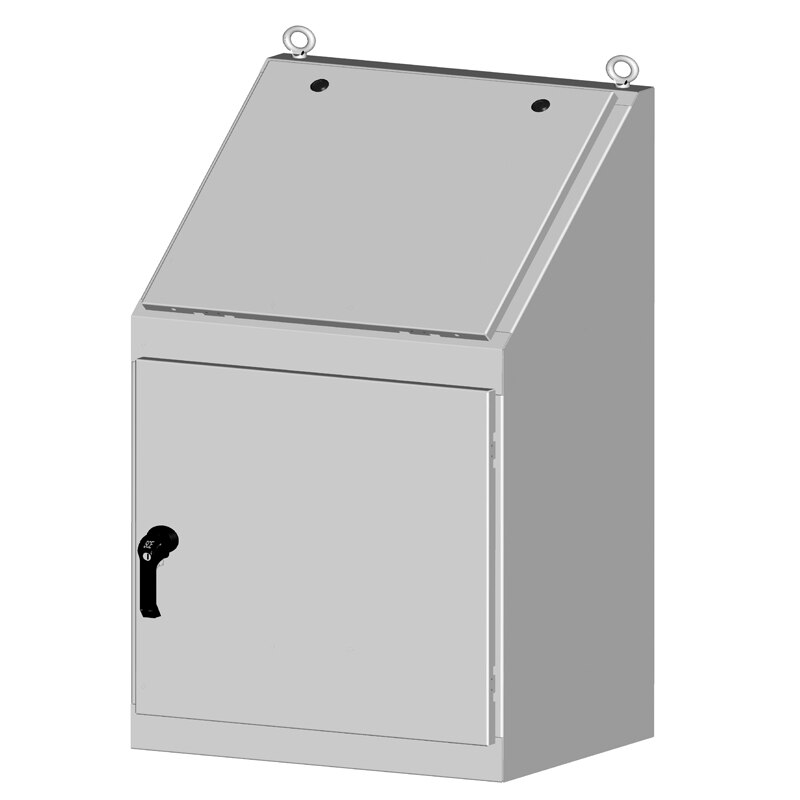

Saginaw Control and Engineering SCE-936B

Console (Series 9), 48 X 36 X 18

Designed for electronic controls and instruments. Equipment can be mounted on the sloping control panel door. Interior components mount to stationary panels. Provides protection from dirt, oil, dust and water.


Construction -

  • 0.075" carbon steel.
  • Sloping control panel attached with concealed hinge on bottom edge.
  • Door opens to 90 degrees.
  • Black zinc die cast keylocking/padlocking handle.
  • 3-point latching mechanism.
  • Seams coninously welded and ground smooth.
  • Oil-resistant gasket on door.
  • Interior print pocket.
  • Optional back and side panels are mounted on collar studs.
  • Removable eyebolts.
  • Ground stud on door.


    • Finish -

    ANSI-61 gray powder coat inside and out. Optional Subpanels are powder coated white.


    Industry Standards - (IS1)

    NEMA Type 12 and Type 13
    UL Listed Type 12
    CSA Type 12
    IEC 60529 IP 55

      Warning: California Proposition 65

      Get your tool under our Flex Warranty!

      We will fix it or replace it.

      FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

      *Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

      Technical Information

      Technical Specifications

      Technical Specifications

      SKU: SCE-936B
      Manufacturer Saginaw
      Model SCE-936B
      Stock CodeB
      Dimensions 48 x 36 x 18 in.
      Weight153 lbs
