Mark-10 | Series TT03 Torque Gauges

<div class='modelTitleDiv'><span class='spacerr'></span><div class='lnDv left'>Model Series</div><div class='lnDv'>Tension Range</div><div class='lnDv'>Bolt Size</div><div class='lnDv th'>Torque Range</div><div class='lnDv fr'>Drive Size</div><div class='lnDv pr'>Price</div><span class='spacerr'></span></div>
<h3 class='seriesBrandName'><img class='smlBrandImg' src='/img/manufacturers/Mark-10.png'>Mark-10</h3><div class='modelTitleDiv'><span class='spacerr'></span><div class='lnDv left'>Model Series</div><div class='lnDv'>Tension Range</div><div class='lnDv'>Bolt Size</div><div class='lnDv th'>Torque Range</div><div class='lnDv fr'>Drive Size</div><div class='lnDv pr'>Price</div><span class='spacerr'></span></div><div class='modelLineDiv' id='modelLineDiv_138092' onclick='toggleSeries(this)' onmouseover='cCov(this)' onmouseout='cCot(this)'><span class='fa chev-right lft'></span><div class='lnDv left'>TT03<a href='Series-TT03-Torque-Gauges' class='seriesLink'>See Full Series Details</a></div><div class='lnDv'></div><div class='lnDv'></div><div class='lnDv th'></div><div class='lnDv fr'></div><div class='lnDv pr'><span>from</span> $1244.50</div><span class='fa chev-right'></span></div><div class='modelMembersDiv hidee' id='modelMembersDiv_138092'><div class='membLn' id='membLn_138048' onclick='togComp(this)' onmouseover='cCov(this)' onmouseout='cCot(this)'><span class='fa chev-right lft'></span><div class='lnDv left'>MTT03-10Z</div><div class='lnDv'></div><div class='lnDv'></div><div class='lnDv th'></div><div class='lnDv fr'></div><div class='lnDv pr'>$1349.00</div><span class='fa chev-right'></span></div><div class='membDetl' id='membDetl_138048'></div><div class='membLn' id='membLn_138049' onclick='togComp(this)' onmouseover='cCov(this)' onmouseout='cCot(this)'><span class='fa chev-right lft'></span><div class='lnDv left'>MTT03-20Z</div><div class='lnDv'></div><div class='lnDv'></div><div class='lnDv th'></div><div class='lnDv fr'></div><div class='lnDv pr'>$1349.00</div><span class='fa chev-right'></span></div><div class='membDetl' id='membDetl_138049'></div><div class='membLn' id='membLn_138051' onclick='togComp(this)' onmouseover='cCov(this)' onmouseout='cCot(this)'><span class='fa chev-right lft'></span><div class='lnDv left'>MTT03-50Z</div><div class='lnDv'></div><div class='lnDv'></div><div class='lnDv th'></div><div class='lnDv fr'></div><div class='lnDv pr'>$1349.00</div><span class='fa chev-right'></span></div><div class='membDetl' id='membDetl_138051'></div><div class='membLn' id='membLn_137164' onclick='togComp(this)' onmouseover='cCov(this)' onmouseout='cCot(this)'><span class='fa chev-right lft'></span><div class='lnDv left'>MTT03-12</div><div class='lnDv'></div><div class='lnDv'></div><div class='lnDv th'></div><div class='lnDv fr'></div><div class='lnDv pr'>$1244.50</div><span class='fa chev-right'></span></div><div class='membDetl' id='membDetl_137164'></div><div class='membLn' id='membLn_138050' onclick='togComp(this)' onmouseover='cCov(this)' onmouseout='cCot(this)'><span class='fa chev-right lft'></span><div class='lnDv left'>MTT03-50</div><div class='lnDv'></div><div class='lnDv'></div><div class='lnDv th'></div><div class='lnDv fr'></div><div class='lnDv pr'>$1244.50</div><span class='fa chev-right'></span></div><div class='membDetl' id='membDetl_138050'></div><div class='membLn' id='membLn_138047' onclick='togComp(this)' onmouseover='cCov(this)' onmouseout='cCot(this)'><span class='fa chev-right lft'></span><div class='lnDv left'>MTT03-100</div><div class='lnDv'></div><div class='lnDv'></div><div class='lnDv th'></div><div class='lnDv fr'></div><div class='lnDv pr'>$1244.50</div><span class='fa chev-right'></span></div><div class='membDetl' id='membDetl_138047'></div><div class='membLn' id='membLn_788982' onclick='togComp(this)' onmouseover='cCov(this)' onmouseout='cCot(this)'><span class='fa chev-right lft'></span><div class='lnDv left'>MTT03-100E</div><div class='lnDv'></div><div class='lnDv'></div><div class='lnDv th'></div><div class='lnDv fr'></div><div class='lnDv pr'>$1244.50</div><span class='fa chev-right'></span></div><div class='membDetl' id='membDetl_788982'></div></div>
  • Accuracy: ±0.5% of full scale ±1 digit
  • Sampling rate: 2,000 Hz
  • Measurement units: lbFin, ozFin, kgFmm, Ncm (depending on model)
  • From $1164

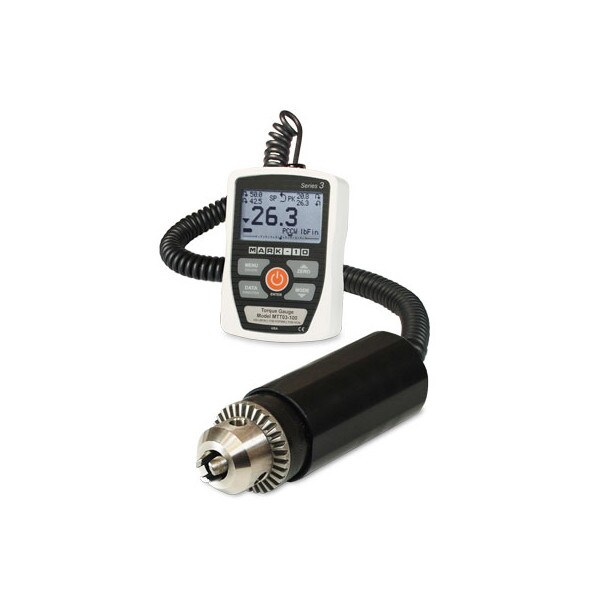

<P>Series TT03 <B>digital torque gauges</B> are designed for clockwise and counter-clockwise torque testing applications in virtually every industry, with capacities from 10 ozFin to 100 lbFin (7 to 1,150 Ncm). A dedicated remote torque sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The gauges rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated testing requirements. </P> <P>Series TT03 features a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges features and configurable parameters. USB output of individual data points is provided for data collection purposes. </P> <P>Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force. </P> <P>The gauges include MESUR Lite data acquisition software. MESUR Lite tabulates single point data. One-click export to Excel allows for further data manipulation. </P> <UL> <LI>Ergonomic torque sensor with Jacobs chuck <LI>Peak torque values saved and displayed<BR> <LI>High-speed 2,000 Hz sampling rate <LI>USB data output (for continuous output, see Model 5i</A> indicator with Series R50</A> torque sensor) <LI>Programmable set points with pass/fail indicators <LI>Live load bar graphs with set point markers <LI>Peak memory for clockwise and counter clockwise readings <LI>Set points always displayed <LI>Configurable audio alarms and key tones <LI>MESURTM Lite data collection software included <LI>Battery or AC operation <LI>Safe overload: 150% of capacity <LI>CE mark </LI></UL> <TABLE cellSpacing=0 cellPadding=0> <TBODY> <TR> <TD width="23%">Accuracy:</TD> <TD bgColor=#dedde8 width="77%">±0.5% of full scale ±1 digit</TD></TR> <TR> <TD>Sampling rate:</TD> <TD bgColor=#dedde8>2,000 Hz</TD></TR> <TR> <TD>Power:</TD> <TD bgColor=#dedde8>AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. </TD></TR> <TR> <TD bgColor=#666666>Battery Life:</TD> <TD bgColor=#dedde8><B>Backlight on:</B> up to 7 hours of continuous use<BR><B>Backlight off:</B> up to 24 hours of continuous use<BR></TD></TR> <TR> <TD>Measurement units:</TD> <TD bgColor=#dedde8>lbFin, ozFin, kgFmm, Ncm (depending on model)<BR></TD></TR> <TR> <TD height=22>USB Output:</TD> <TD bgColor=#dedde8>Individual data point output by pressing DATA key. Configurable up to 115,200 baud.</TD></TR> <TR> <TD>Configurable Settings:</TD> <TD bgColor=#dedde8>Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration </TD></TR> <TR> <TD>Safe overload:</TD> <TD bgColor=#dedde8>150% of full scale (display shows OVER at 110% and above)<BR></TD></TR> <TR> <TD>Weight:</TD> <TD bgColor=#dedde8>1.8 lb [0.8 kg]<BR></TD></TR> <TR> <TD>Included items:</TD> <TD bgColor=#dedde8>Carrying case, universal voltage AC adapter, battery, chuck key, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESUR gauge DEMO software, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge).<BR></TD></TR> <TR> <TD>Environmental requirements:</TD> <TD bgColor=#dedde8>40<FONT size=2 face=Arial>°</FONT>F - 100<FONT size=2 face=Arial>°</FONT>F [5<FONT size=2 face=Arial>°</FONT>C - 45<FONT size=2 face=Arial>°</FONT>C], &lt;96% humidity (non-condensating)</TD></TR> <TR> <TD>Warranty:</TD> <TD bgColor=#dedde8>3 years (see individual statement for further details)</TD></TR></TBODY></TABLE> <P>&nbsp;</P> <P>&nbsp;</P>

SKU: Mark-10 Series TT03 Torque Gauges
Call for Price

Technical Specifications

SKU: Mark-10 Series TT03 Torque Gauges
Manufacturer Mark-10
SKUMark-10 Series TT03 Torque Gauges
SeriesTT03
