954601000 | TL46-W-815 | High Performance Contrast Sensor, RGB vertical, PNP/NPN, Push-buttons

(0)No Reviews yet
$288.04
$320.00
(Save $31.964)
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

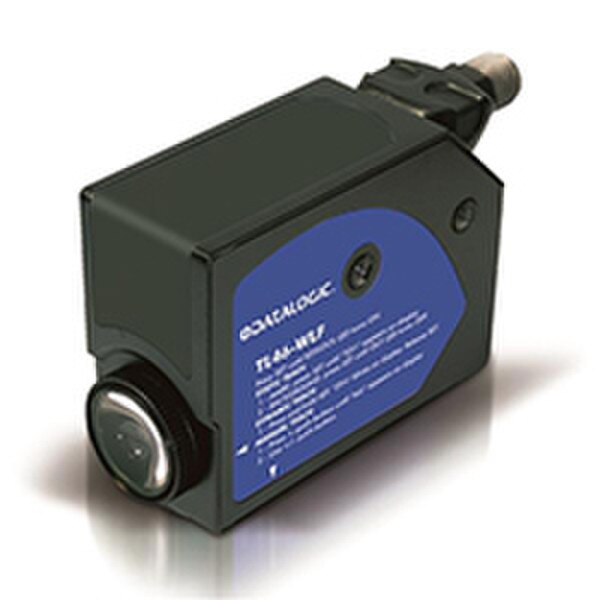

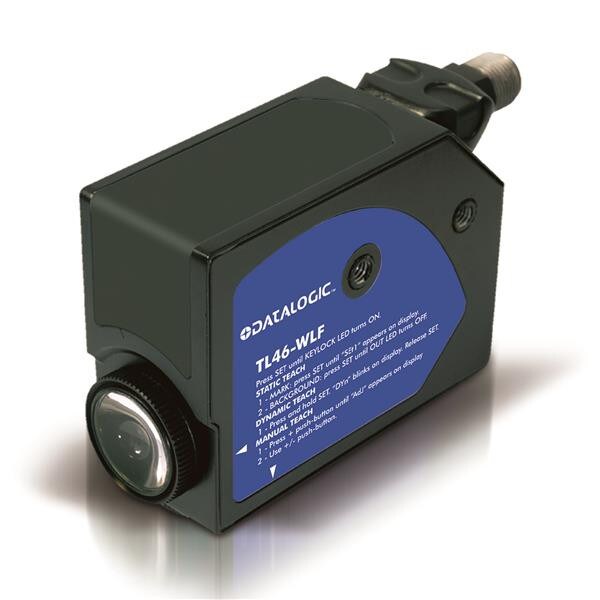

Datalogic TL46-W-815

The Datalogic TL46-W-815, 954601000 contrast sensor is a high-performance sensor designed for a range of industrial applications. It features a robust metal housing with standard fixing, making it ideal for use in harsh environments. The sensor uses RGB LED emission to ensure high detection reliability and resolution.

One of the standout features of the TL46 series is its easy setting capability. The sensor is equipped with a teach-in push-button and either a bar graph or a 4-digit display indicator, depending on the version. This allows for quick and easy setup of the sensor, making it an ideal choice for use in high-speed automated production lines.

The TL46 contrast sensor series also boasts a high switching frequency of up to 30kHz. This ensures that the sensor can keep up with the demands of even the fastest production lines.

Additionally, the sensor features a rotatable M12 5-pole connector. The TL46-W-815, 954601000 contrast sensor is the basic version of the TL46 series, featuring two set push-buttons and two LED indicators. It also includes a delay input NPN/PNP output and an 8mm basic vertical spot. This sensor is suitable for use in a variety of applications, including packaging lines, paper and printing machines, and automatic filling machines.

Read More
Back

Features & Benefits

  • RGB emission for high detection reliability and resolution
  • Teach-in push-button and bar graph or display 4 digits indicator for easy setting
  • 30KHz switching frequency for precise reading
  • Rotatable M12 5-pole connector
Back

Technical Specifications

SKU: 954601000-datalogic
Nominal Sensing Distance
12mm
Spot Dimension
1,5 x 5mm
Sensitivity Adjustment
Teach-in
Application Function Principle
Contrast mark detection
Description
Standard case - vertical spot
Optic Position
axial
Functions
Contrast mark detection
Output Type
NPN/PNP - Dark/Light sel., 0-5 V
Switching Frequency
15kHz
Response Time
0,033 (15kHz)
Operating Voltage
10 to 30VDC
No-Load Supply Current
50mA
Load Current
100mA
Output Voltage Drop
2V
Max Ripple Content
2Vpp
LED Indicators
Yellow (output state) Green (Ready) orange (delay or keylock)
Short-circuit Protection
Yes
Reverse Polarity Protection
Yes
Emission
LED RGB
Interference to External Light
according to EN 60947-5-2 : 2020
Impulsive Overvoltage Protection
Yes
Insulation Resistance
>20 MΩ 500 Vdc, between electronics and housing
Contact Resistance
500 Vac 1 min., between electronics and housing
Dimensions
32x60x82 mm
Housing Material
Metal - Aluminium / PMMA
Connections
M12 plug
Active Head Material
Glass
Storage Temperature
- 20°C to +70°C
Housing Type
Cubic
Approvals
CE cULus
Shocks and Vibrations
0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6)
Operating Temperature
- 10°C to + 55°C
Mechanical Protection
IP67
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the Datalogic TL46-W-815 contrast sensor used for?

The Datalogic TL46-W-815 contrast sensor is a high-performance sensor designed for a range of industrial applications, including packaging lines, paper and printing machines, and automatic filling machines.
One of the standout features of the TL46 series is its easy setting capability. The sensor is equipped with a teach-in push-button and either a bar graph or a 4-digit display indicator, depending on the version.
The TL46 contrast sensor series boasts a high switching frequency of up to 30kHz, ensuring that the sensor can keep up with the demands of even the fastest production lines.
The TL46-W-815 contrast sensor features a rotatable M12 5-pole connector, which allows for easy installation and integration with other equipment.
