45ATG | Analog torque gauge, 45 gf cm
Overview

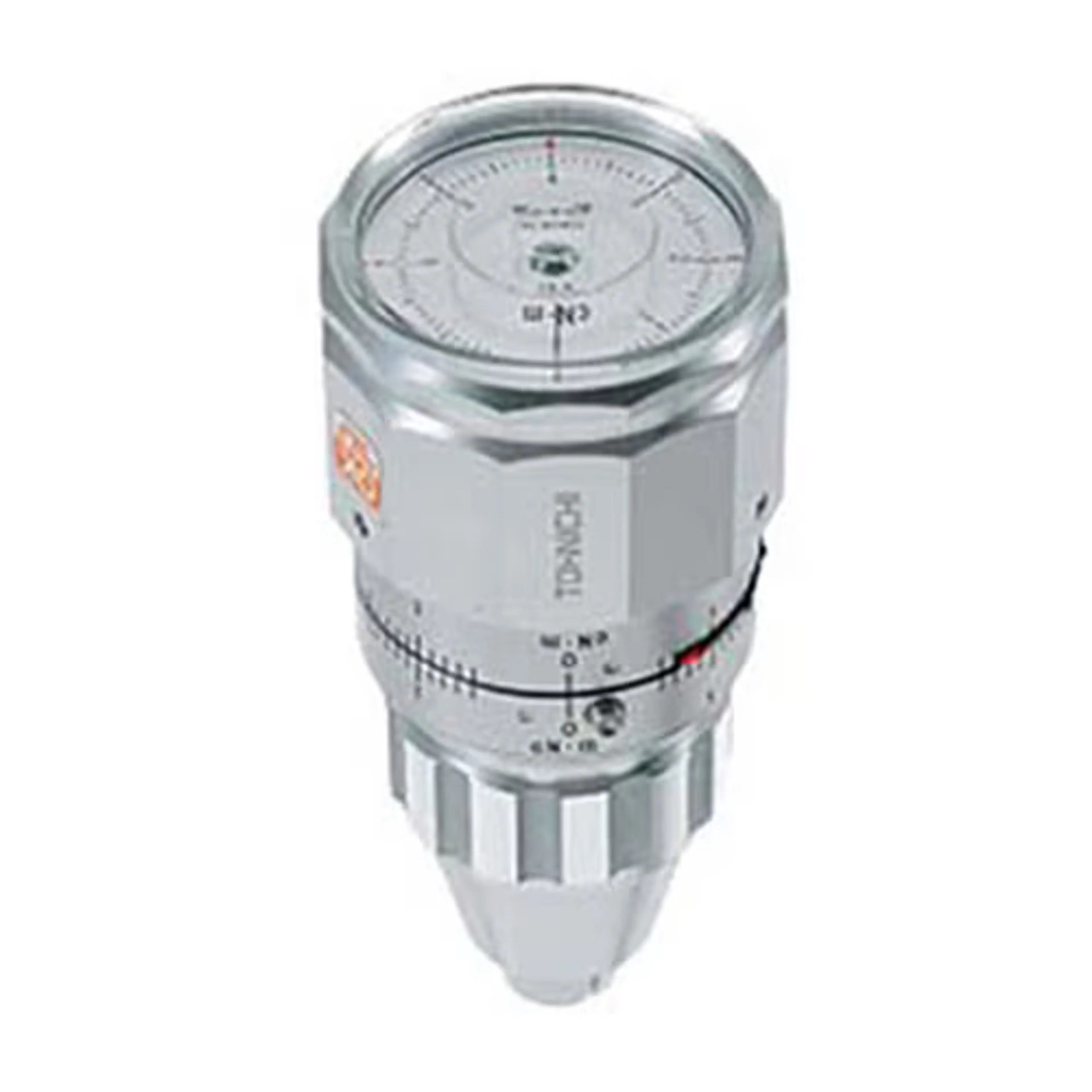

Introducing the Tohnichi 45ATG Analog Torque Gauge, a compact and reliable tool designed to measure low torque values with precision. Manufactured by Tohnichi, a leading brand in the assembly industry, this analog torque gauge offers accurate and efficient torque measurement capabilities for various applications.
- Torque Range: 0.005 - 0.045 kgf cm
- Overall Length: 99mm
- Accuracy: +/-2% F.S
- Graduation: 0.001 kgf cm
- Type: Analog
- Model: 45ATG
- Brand: Tohnichi
Features & Benefits
- Compact and Portable: The 45ATG torque gauge boasts a compact and lightweight design, making it highly portable and convenient for use in different work environments.
- Dual-Scale Display: Equipped with both top and side scales, this analog torque gauge allows for easy reading from multiple angles, ensuring convenient and accurate measurements.
- Bi-Directional Operation: The 45ATG torque gauge supports bi-directional operation, allowing for measurements in both clockwise and counterclockwise directions.
- Three-Fingered Keyless Chuck: The keyless chuck features a three-fingered design, enabling quick and secure bit changes without the need for additional tools.
- Push Lock Button: The push lock button on the gauge securely holds the test object in place within the chuck, ensuring accurate and stable measurements.
Technical Specifications
SKU: 45ATG-tohnichi
Model
45ATG
Type
Torque Gauge
Wrench Type
Analog Torque Gauge
Manufacturer
Tohnichi
SKU
45ATG
Stock Code
2
Dimensions
89 x 43.5mm
Min Torque (Kgf Cm)
0.005
Max Torque (Kgf Cm)
0.045
Overall Length
99
Weight (lbs)
0.01
Series
ATG
Accuracy
±2%
Max Torque (gf cm)
45
Min Torque (gf cm)
5
