500CF-A | Torque Wrench, 80 - 420 lbf in
Overview

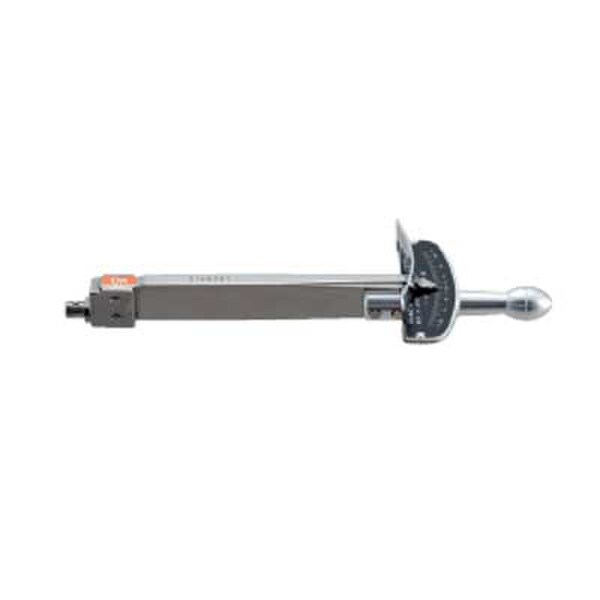

Introducing the Tohnichi 500CF-A Torque Wrench, a robust and versatile tool designed to meet the demands of quality inspection and tightening applications. Manufactured by Tohnichi, this beam-type torque wrench combines precision and durability to ensure accurate and reliable torque measurements.
- Torque Range: 80 - 420 lbf in
- Overall Length: 380mm
- Interchangeable Head Type: Beam Type
- Multi-purpose: Yes
- Interchangeable Heads: Approximately 300 kinds of Tohnichi interchangeable heads
- Scale: Registers torque bidirectionally
- Manufacturer: Tohnichi
Features & Benefits
- Interchangeable Head Type: The 500CF-A features an interchangeable head type, allowing you to utilize approximately 300 kinds of Tohnichi interchangeable heads. This versatility makes it suitable for a wide range of applications.
- Multi-Purpose Functionality: This beam-type torque wrench is a multi-purpose tool that can be used for both measuring and tightening applications, providing added convenience and efficiency in your workflow.
- Bidirectional Scale: The scale on the 500CF-A registers torque bidirectionally, enabling you to measure and apply torque in both clockwise and counterclockwise directions.
Technical Specifications
Model
500CF-A
Wrench Type
Beam Torque Wrench
Manufacturer
Tohnichi
SKU
500CF-A
Stock Code
2
Style
Inline
Min Torque (In Lb)
80
Max Torque (In Lb)
420
Overall Length
380
Weight (lbs)
0.01
