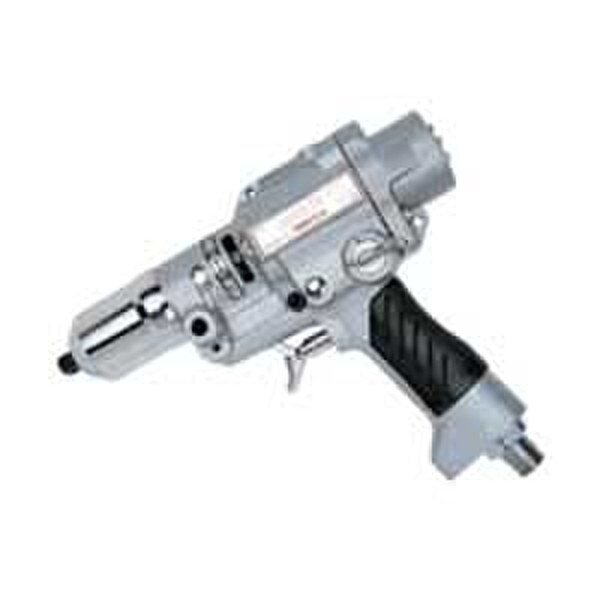

AUR Pneumatic Torque Screwdriver

Tohnichi AUR pneumatic torque screwdrivers combine high-speed tightening with trigger-activated precision torque, easy knob and scale adjustment and stable torque regardless of air pressure fluctuations.

Models and pricing below
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.

Models Available

9 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

ProductModelFree Speed (RPM)PriceQty
AU125R-AAU125R-A | Pneumatic Torque Screwdriver, 37.5 - 112.5 in lbs$3,310.79AU125R-A800$3,310.791View details
AU125RAU125R | Pneumatic Torque Screwdriver, 50 - 125 kgf cm$3,310.79AU125R800$3,310.791View details
AU250R-AAU250R-A | Pneumatic Torque Screwdriver, 75 - 225 in lbs$3,310.79AU250R-A400$3,310.791View details
AU250RAU250R | Pneumatic Torque Screwdriver, 100 - 250 kgf cm$3,310.79AU250R400$3,310.791View details
AU50R-AAU50R-A | Pneumatic Torque Screwdriver, 15 - 45 in lbs$2,712.71AU50R-A2100$2,712.711View details
AU50RAU50R | Pneumatic Torque Screwdriver, 20 - 50 kgf cm$2,712.71AU50R2100$2,712.711View details
AUR12.5NAUR12.5N | Pneumatic Torque Screwdriver, 5 - 12.5 Nm$3,310.79AUR12.5N800$3,310.791View details
AUR25NAUR25N | Pneumatic Torque Screwdriver, 10 - 25 Nm$3,310.79AUR25N400$3,310.791View details
AUR5NAUR5N | Pneumatic Torque Screwdriver, 2 - 5 Nm$2,712.71AUR5N2100$2,712.711View details

Details

Product information

Overview

Tohnichi AUR Pneumatic Torque Screwdrivers

Tohnichi AUR Unitork pneumatic torque screwdrivers deliver high-speed, high-accuracy tightening for production assembly. Models cover 2 to 25 N·m, with equivalent versions graduated in kgf·cm and lbf·in.

Precision on Every Trigger Pull

Tightening is trigger-activated, and the tool reaches the set torque with only a small reaction force at the operator's hand. Torque is set easily by knob and scale.

Consistent on the Line

Output torque remains stable regardless of fluctuations in air pressure, so results stay consistent across shifts and stations.

Need Tightening Assurance?

The AURLS version adds a limit switch that creates a tightening assurance system when paired with the Tohnichi CNA-4mk3 count checker (sold separately). See Tohnichi AURLS Pneumatic Torque Screwdrivers.

Flexible Assembly Systems can help you choose the right torque range and scale for your joints. Contact our team for pricing, availability and application support.

Features & Benefits
High-speed and high torque, with graduation.
High-speed tightening with trigger-activated precision torque.
Torque setting is easy to adjust by knob and scale.
Torque remains stable regardless of fluctuations in air pressure.
Small reaction force when the set torque is reached.
LS version is available with a limit switch, which creates a tightening assurance system when used with a CNA-4mk3 count checker.
Becomes an error-proofing system when used with CNA-4mk3 (sold separately).
High speed and high torque with graduated scale
Trigger-activated precision torque
Torque set easily by knob and scale
Small reaction force at set torque
Torque stable regardless of air pressure fluctuations
Models in N·m and kgf·cm and lbf·in scales
Limit switch version available as AURLS
