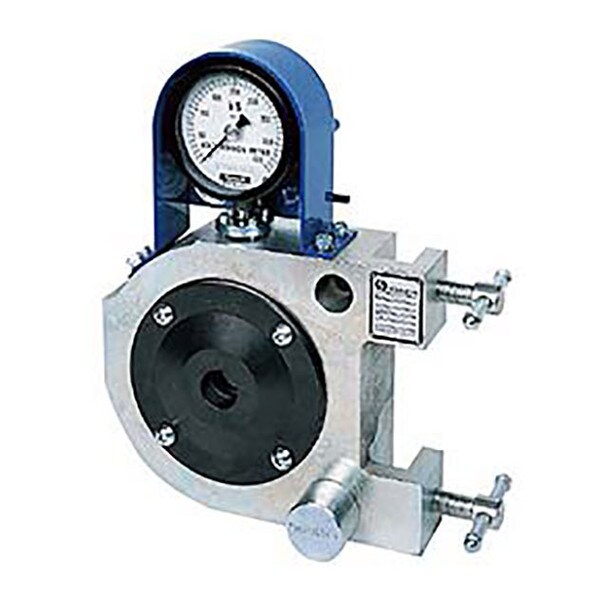

BTM400K | Hydraulic bolt tension meter, 50 - 400 kN, M16 - M24
Overview
The Tohnichi BTM400K Hydraulic Bolt Tension Meter is a robust and reliable tool designed to measure bolt tension accurately. Engineered by Tohnichi, a leading manufacturer of tension measuring instruments, this bolt tension meter combines precision and durability to meet the demands of various industrial applications.
- Axial Tension Range: 100000 - 400000 Nm
- Bolt Size Range: M16 - M24
- Overall Length: 260mm
- Type: Bourdon-Type Hydraulic Bolt Tension Meter
- Application: Measure bolt tension to determine optimal torque
- Features: Internal shock absorber allows for impact wrench use, Compact and lightweight
- Manufacturer: Tohnichi
Features & Benefits
- Wide Measurement Range: The BTM400K offers an impressive measurement range of 50 to 400 kN, making it suitable for a wide variety of bolt sizes and tension requirements.
- Bolt Size Compatibility: This tension meter can accommodate bolts ranging from M16 to M24, providing versatility for different fastening needs.
- Torque Coefficient Evaluation: By measuring bolt tension, the BTM400K enables the evaluation of torque coefficients, ensuring optimal tightening and preventing over-torquing.
- Bourdon-Type Hydraulic Mechanism: The BTM400K utilizes a reliable Bourdon-type hydraulic mechanism to deliver accurate and consistent tension measurements.
- Strength Testing: This bolt tension meter is ideal for conducting strength tests on bolts, helping to assess their structural integrity and reliability.
Technical Specifications
SKU: BTM400K-tohnichi
Model
BTM400K
Type
Hydraulic bolt tension meter
Wrench Type
Bolt Tension Meter
Manufacturer
Tohnichi
SKU
BTM400K
Stock Code
2
Dimensions
261 x 289 mm
Bolt Size - mm
M16 - M24
Overall Length
260
Weight (lbs)
27.78
Series
BTM
Weight (kg)
12.6
Tension Range
50 - 400 kN
