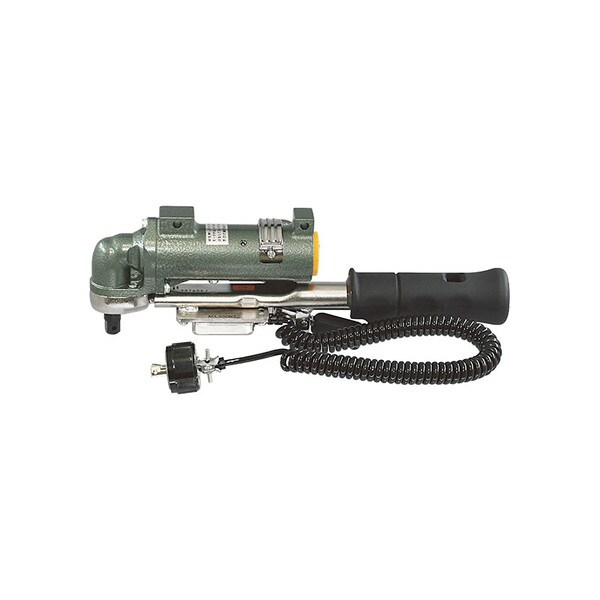

ACLS100N3 | High Power Semi-Automatic Airtork Torque Wrench with limit switch, 20 - 100 Nm
Overview
Introducing the Tohnichi High Power Semi-Automatic Torque Wrench ACLS100N3 - a revolutionary tool that combines speed, precision, and efficiency in one powerful package. Engineered by Tohnichi, a leading name in the assembly industry, this torque wrench takes your fastening tasks to the next level.
- Min Torque(Nm): 20
- Max Torque(Nm): 100
- Drive Size: 1/2'' square
- Free Speed(RPM): 900
- Head Type: Angle Head
- Model: ACLS100N3
- Manufacturer: Tohnichi
Features & Benefits
- Semi-Automatic Operation: Experience the best of both worlds with the semi-automatic operation of this torque wrench. The air motor mounted on the wrench allows for fast provisional tightening, while the final tightening is performed manually with precision.
- Enhanced Efficiency: This innovative tool replaces the conventional two-step tightening process, integrating the functions of a pneumatic tool and a click torque wrench into a single unit. Say goodbye to time-consuming and cumbersome procedures.
- Limit Switch Functionality (LS Version): The LS version of the torque wrench comes equipped with a limit switch, creating an error-proofing system when used with the CNA-4mk3 count checker (sold separately). This feature confirms tightening completion, eliminating missed fasteners and enhancing qual
- Effortless Torque Adjustment: Adjusting the tightening torque is a breeze with the simple use of a hex key. The scale on the handle lets you make precise adjustments, ensuring accurate and consistent results every time.
- Versatile Drive Size: The 1/2'' square drive of the wrench accommodates a wide range of sockets, making it compatible with various applications and tightening requirements.
Technical Specifications
SKU: ACLS100N3-tohnichi
SKU
ACLS100N3
Manufacturer
Tohnichi
Model
ACLS100N3
MPN
ACLS100N3
Stock Code
Drive size
1/2'' square
Free Speed (RPM)
900
Series
AC3LS
Torque Range (Nm)
20 - 100
Type
Standard
