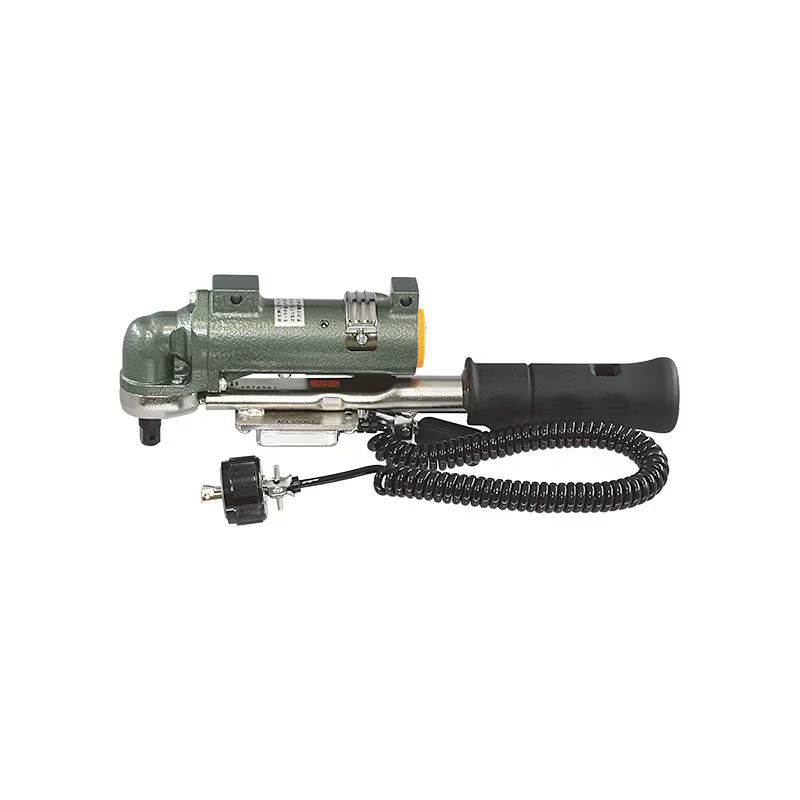

ACLS200I3-3/8 | High Power Semi-Automatic Airtork Torque Wrench with limit switch, 50 - 200 in lbs
Overview
Introducing the Tohnichi High Power Semi-Automatic Torque Wrench ACLS200I3-3/8, an exceptional tool designed to revolutionize your fastening operations. Engineered by Tohnichi, this innovative torque wrench combines power, precision, and efficiency to elevate your assembly processes to new heights.
- Min Torque(In Lb: 50)
- Max Torque(In Lb: 200)
- Drive Size: 3/8'' square
- Free Speed(RPM): 1000
- Head Type: Angle Head
- Manufacturer: Tohnichi
Features & Benefits
- High Power Performance: With a torque range of 50 to 200 in lbs, this semi-automatic torque wrench delivers exceptional power to handle various fastening applications with ease.
- Semi-Automatic Operation: The air motor mounted on the wrench enables fast provisional tightening, while the final tightening is achieved manually with precision. This two-in-one functionality streamlines your assembly tasks, reducing time and effort.
- Simple Torque Adjustment: Adjusting the tightening torque is effortless with the included hex key. Simply use the key to adjust the scale on the handle, ensuring accurate and consistent torque application.
- Enhanced Efficiency: This tool replaces the conventional two-step tightening process, integrating both pneumatic tool and click torque wrench into a single unit. By eliminating the need for multiple tools, you gain improved efficiency and productivity.
- Limit Switch Functionality (LS Version): The LS version of this torque wrench features a limit switch that creates an error-proofing system when used with the CNA-4mk3 count checker (sold separately). This feature confirms tightening completion, eliminating missed fasteners and enhancing quality con
Technical Specifications
Model
ACLS200I3-3/8
Type
American
Drive size
3/8'' square
Manufacturer
Tohnichi
Free Speed (RPM)
1000
SKU
ACLS200I3-3/8
Stock Code
2
Style
Angle Head
Min Torque (In Lb)
50
Max Torque (In Lb)
200
Graduations (In Lb)
5
Series
AC3LS
Weight (kg)
1.5
