Tohnichi LC20N3-G | Torque Tester, 0.5 - 20 NM

$2,599.39
Tohnichi

Details

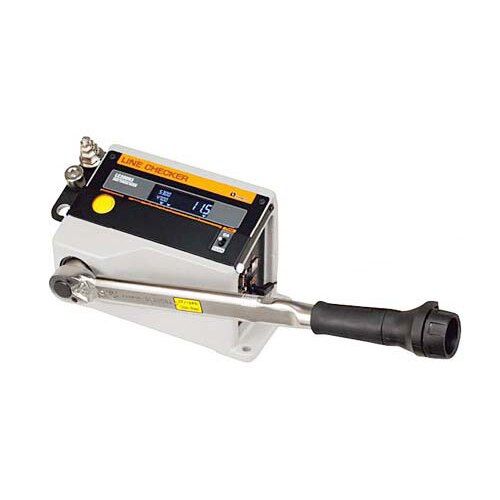

Tohnichi LC20N3-G

Torque Tester, 0.5 - 20 Nm


Torque Range :0.5 - 20 NM
LC3-G Torque Wrench Line Checker: For daily inspections of torque wrenches. Newly added judgement function and USB output. Multiple units of measure through keypad setup. Digital torque tester.

"Quick check" function now even more advanced. Comes with Pass/Fail Judgment color display, for easy result checking. Routine torque wrench inspections at line-side test stations is easier and more accurate

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Features & Benefits

  • Different colored LCD display visibly notifies judgment results.
  • Built-in statistical processing functions
  • Can read actual running torque
  • Statistical processing functions automatically calculate Min, Max and Mean

Technical Information

Technical Specifications

Technical Specifications

SKU: LC20N3-G-tohnichi
Manufacturer Tohnichi
Model LC20N3-G
Stock CodeB
Dimensions 11 x 7 x 7 in.
Drive size 1/4'' square
Series LC3-G
Torque Range (In Lbs) - 174
Torque Range (Nm) 0.5 - 20
Wrench Type Digital Torque Wrench Tester
Weight1 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Videos & Media

introducing the tohnichi lc20n3-g torque tester, a revolutionary tool that will redefine your torque measurement experience. with its cutting-edge technology and user-friendly design, the lc20n3-g is the ultimate solution for quality control and assembly operations. covering a wide torque range of 0.5 to 20newton meters, this torque tester is suitable for various applications, from light-duty fastening to demanding industrial tasks. its high-precision sensor and advanced algorithms ensure fast and accurate measurements, providing you with the confidence you need to meet the strictest quality standards. the lc20n3-g torque tester features a clear and intuitive lcd display with color-coded judgment indicators. this allows for quick and easy assessment of test results, helping you streamline your workflow and improve productivity. in addition to its exceptional accuracy and user-friendly interface, the lc20n3-g torque tester also offers statistical processing functions. with the touch of a button, you can access valuable insights such as minimum, maximum, and mean values, helping you make informed decisions about your torque data. for added convenience, the lc20n3-g torque tester comes equipped with a usb output. this allows you to easily transfer data to your computer for further analysis or documentation. don't settle for anything less than the best. upgrade your torque measurement capabilities with the tohnichi lc20n3-g torque tester. experience precision, reliability, and efficiency like never before.

Frequently Asked Questions

Learn more about our products

01What is the LC20N3-G's torque range?

The LC20N3-G has a torque range of up to 174 in lbs.

02What type of application is the LC20N3-G best suited for?

03How often does the LC20N3-G need to be calibrated?

04Does the LC20N3-G have a warranty?
