TCC100N2-G | Torque Tester, 1 - 100 NM
Overview

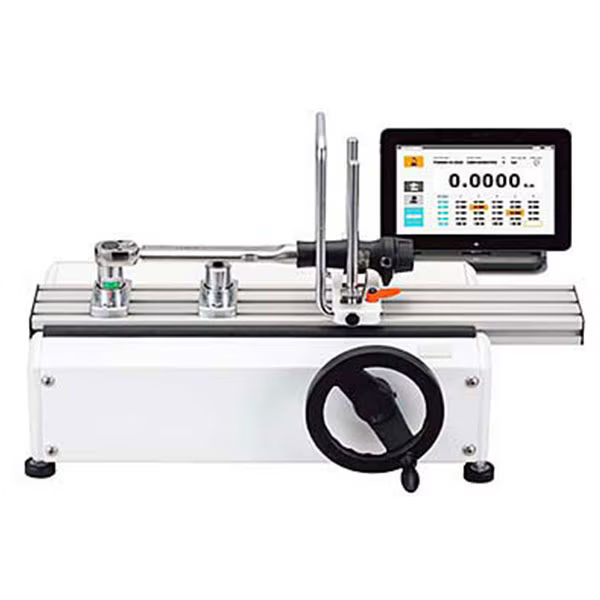

Introducing the Tohnichi TCC100N2-G Torque Tester, a cutting-edge instrument designed to revolutionize your torque calibration and testing processes. This advanced torque tester combines exceptional accuracy with user-friendly features, making it an indispensable tool for quality control professionals and technicians across various industries.
- Torque Range: 1 - 100 Nm
- Overall Length: 714mm
- Multiple Measuring Units: Yes
- Data Management Software: Included
- User-Friendly Touch Screen: Yes
- Language Selection: Japanese and English
- Manufacturer: Tohnichi
Features & Benefits
- Wide Torque Range: The TCC100N2-G boasts an impressive torque range of 1 - 100 Nm, allowing you to test a wide variety of torque wrenches and tools with utmost precision.
- Data Management Software: Equipped with pre-installed data management software, this torque tester simplifies the calibration process and enables efficient data management. Easily transfer tool management data to your PC using the included software package.
- Versatile Connectivity: The TCC100N2-G comes with multiple connectivity options, including 3/8'' and 1/2'' square drives, providing compatibility with a wide range of torque wrenches.
- User-Friendly Interface: The intuitive touch screen operation and user-friendly interface make it effortless to navigate and utilize the tester's various functions. Switch between Japanese and English languages for added convenience.
Technical Specifications
Model
TCC100N2-G
Type
Torque Wrench Tester
Drive size
3/8'', 1/2'' square
Wrench Type
Digital Torque Wrench Tester
Manufacturer
Tohnichi
SKU
TCC100N2-G
Stock Code
2
Max Torque (In Lb)
885
Min Torque (Nm)
1
Max Torque (Nm)
100
Max Torque (Kgf Cm)
1000
Overall Length
714
Weight (lbs)
0.01
Series
TCC2-G
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the TCC100N2-G's torque range?
What type of application is the TCC100N2-G best suited for?
The TCC100N2-G Torque Wrench Tester is ideal for use with a broad range of external transducers to test output of tools for torque verification.
How often does the TCC100N2-G need to be calibrated?
Torque Wrench Testers like the TCC100N2-G should be checked and recalibrated every six to twelve months, or 5000 cycles; whichever comes first.
Does the TCC100N2-G have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
