Tohnichi TDT600CN3-G | Torque Tester, 2 - 60 kgf cm

$3,440.29
Tohnichi

Details

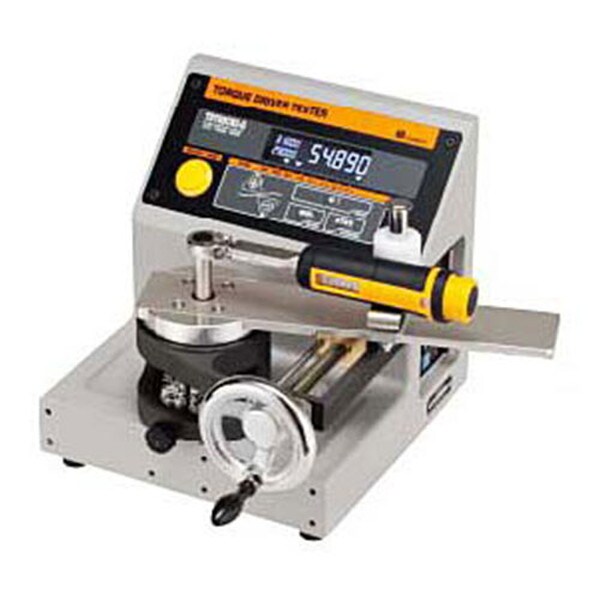

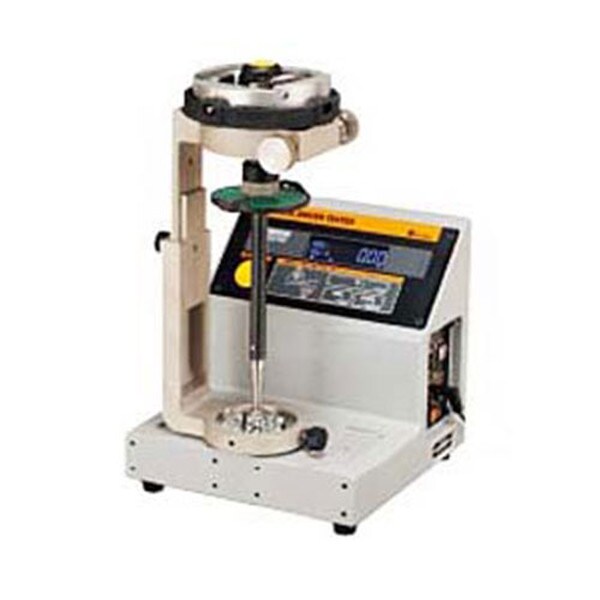

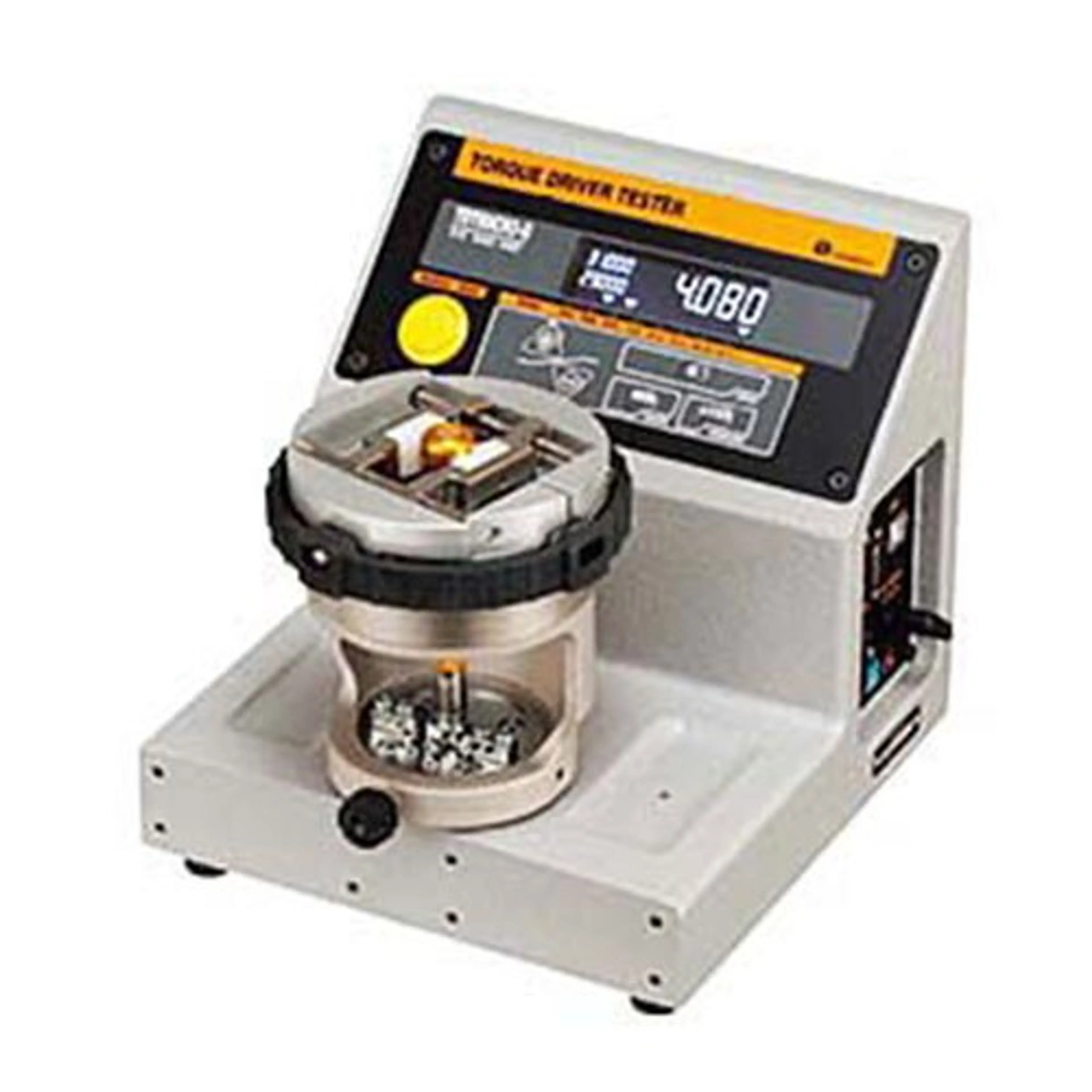

Introducing the Tohnichi TDT600CN3-G Torque Tester, a cutting-edge digital torque screwdriver tester designed to revolutionize your torque measurement processes. This highly accurate and reliable tester combines advanced features with user-friendly design, making it an indispensable tool for quality control and assembly professionals.

  • Torque Range: 2 - 60 kgf cm
  • Accuracy: +/-2% of reading
  • Resolution: 0.01 kgf cm
  • Overall Length: 230 mm
  • Weight: 600 g
  • Power Supply: AC 100 V, 50/60 Hz
  • Drive: 1/4'' hex

Elevate your torque measurement capabilities with the Tohnichi TDT600CN3-G Torque Tester. Its high accuracy, wide torque range, loading device, Pass/Fail judgment feature, and multiple units of measure make it an essential tool for quality control and assembly professionals. Invest in this advanced torque tester and experience precision and reliability like never before.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Features & Benefits

  • High Accuracy: With its high-accuracy digital display, the TDT600CN3-G Torque Tester provides precise and repeatable torque measurements, ensuring consistent and reliable results.
  • Wide Torque Range: Covering a torque range of 2 - 60 kgf cm, this tester accommodates various applications, from light-duty to medium-duty fastening tasks.
  • Pass/Fail Judgment: The TDT600CN3-G Torque Tester features a Pass/Fail judgment function, displaying results in three colors (white/red/blue) for easy recognition and efficient quality control.
  • Loading Device: Equipped with a loading device, the tester eliminates measurement errors caused by human factors, ensuring accurate and objective results.
  • Multiple Units of Measure: The tester offers multiple units of measure, allowing users to select the preferred unit (kgf cm, N m, in lb, ozf in) through the keypad setup.

Technical Information

Technical Specifications

Technical Specifications

SKU: TDT600CN3-G-tohnichi
Manufacturer Tohnichi
Model TDT600CN3-G
Stock CodeB
Drive size 1/4'' hex
Overall Length 230
Series TDT3-G
Torque Range (In Lbs) 2 - 50
Type Digital Torque Screwdriver Tester
Wrench Type Digital Torque Wrench Tester

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Videos & Media

introducing the tohnichi tdt600cn3-g torque tester, a cutting-edge digital torque screwdriver tester designed to provide precise and reliable torque measurements. this advanced tester from tohnichi combines high accuracy with user-friendly features, making it an indispensable tool for quality control and assembly processes. with a torque range of 2 - 60 kgf cm, the tdt600cn3-g tester caters to a wide variety of applications, ensuring accurate measurements for different torque requirements. equipped with state-of-the-art technology, this torque tester delivers highly accurate measurements with a precision of 1%, enabling users to trust the results for critical applications. the tester features a clear and intuitive digital display, providing real-time torque readings for easy monitoring and analysis. the tdt600cn3-g tester comes with a built-in pass/fail judgment feature, simplifying the evaluation process. the results are displayed in three colors (white/red/blue) for quick and effortless recognition. designed with user comfort in mind, the tester boasts an ergonomic handle that minimizes fatigue during prolonged use. the tdt600cn3-g torque tester is powered by two aa batteries (not included) and weighs only 600g, making it portable and convenient for use in various settings. elevate your torque measurement capabilities with the tohnichi tdt600cn3-g torque tester. its versatility, accuracy, and user-friendly features make it an essential tool for maintaining quality standards and ensuring precise torque application in various assembly processes. invest in this advanced torque tester and experience the confidence that comes with accurate and reliable measurements.

Frequently Asked Questions

Learn more about our products

01What is the TDT600CN3-G's torque range?

The TDT600CN3-G has a torque range between 2 - 50 in lbs.

02What type of application is the TDT600CN3-G best suited for?

03How often does the TDT600CN3-G need to be calibrated?

04Does the TDT600CN3-G have a warranty?
